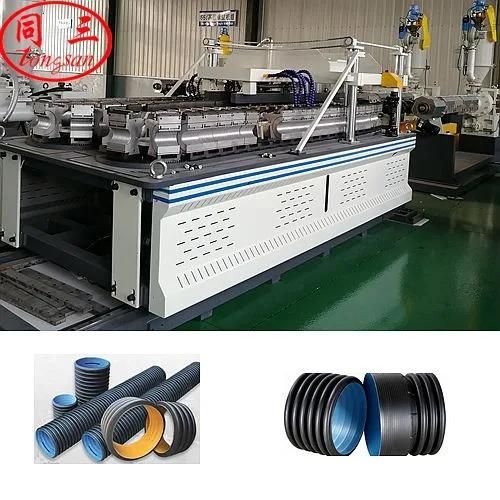

PVC HDPE Plastic Double Wall Corrugated Dwc Corrugated Pipe Extruder Machine
Qingdao Tongsan Plastic Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PE
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：SJ90
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Screw Material：38crmoala
- Screw Diameter (mm)：90
- Screw L/D Ratio：33:1
- Power (Kw)：75
- Pipe Diameter Range：40-250mm
- Quantity of Mould Pairs：48 or 72
- Production Speed：2-3.5m,Min
- Output (Kg/H)：250-300 Kg,H
- Voltage：380V 50Hz 3phase(Customized)
- Certification：ISO Ce SGS
- Transport Package：Standrand Packing
- Specification：15m*2.2m*2.5m
- Trademark：TongSan
- Origin：Shan Dong China
- Production Capacity：5sets,Month, 10-100kg,H
Description
3-5 m/min
2. Composite extrusion die head with specially helical structure to make the wall thickness unifom and stable production.
3. The forming machine has automatic power-off protection device.The forming machine an antomatically exit from the die head to avoid equipment failure in case of electrucity cut off suddenly.It also equipped with new type high transmitting ratio reducer, easy to operate and mainteance.

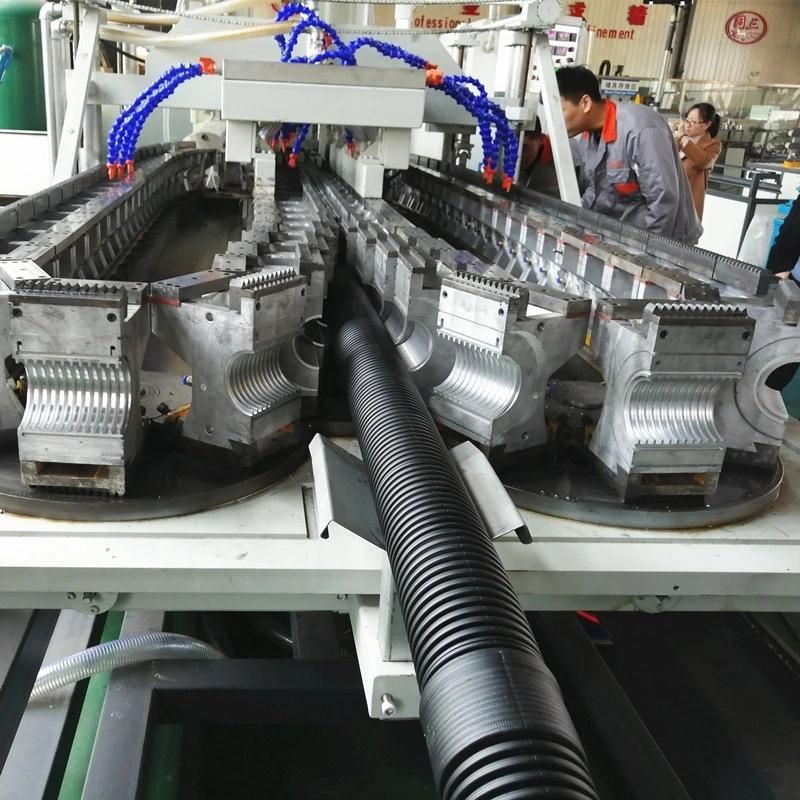

4. The corrugated forming system is in combination with water cooling and air cooling to sensure high production speed
continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smmothly with high precision to ensure the products quality stability.

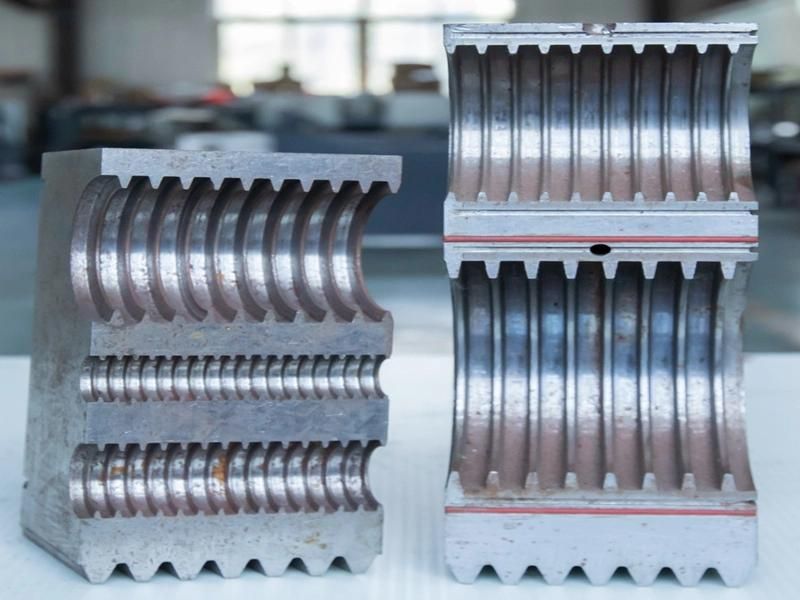

5. Mould adopts specialy alumium alloy material and high precision die casting forming mould method,it has the advanages of high precision,high stremgth,good wearability and better heat dissipation performance.
6. Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.

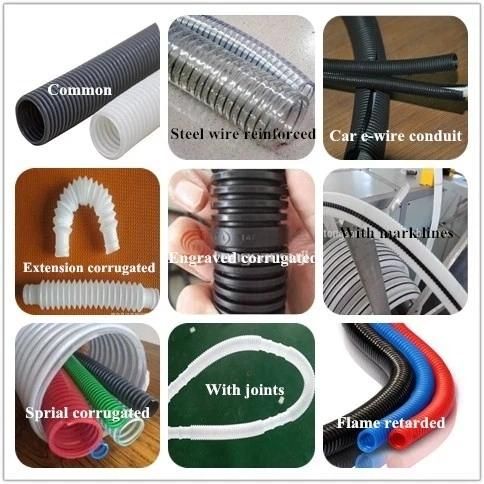

APPLICATIONS:
WHY CHOOSE US?
BE OUR CLIENT:

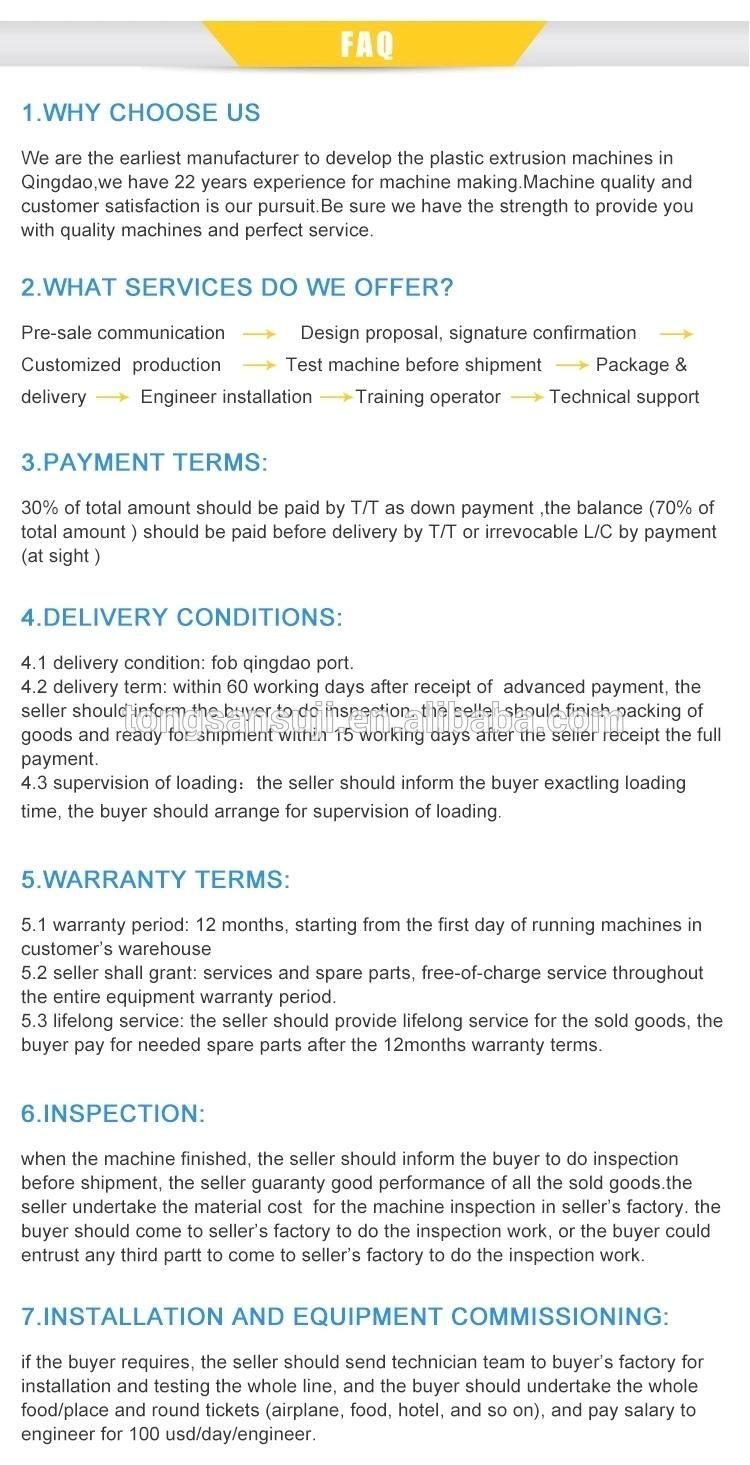

FAQ:
Advantage of our Plastic DWC double wall corrugated pipe machine
1. The main machine adopts special designed high efficiency screw which is specially used for polyolefin,it has the features of stable performance and high effiency.The machine has two independence extruders,which can realize both inside and outside layer with different material and colors.2. Composite extrusion die head with specially helical structure to make the wall thickness unifom and stable production.
3. The forming machine has automatic power-off protection device.The forming machine an antomatically exit from the die head to avoid equipment failure in case of electrucity cut off suddenly.It also equipped with new type high transmitting ratio reducer, easy to operate and mainteance.
4. The corrugated forming system is in combination with water cooling and air cooling to sensure high production speed
continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smmothly with high precision to ensure the products quality stability.
5. Mould adopts specialy alumium alloy material and high precision die casting forming mould method,it has the advanages of high precision,high stremgth,good wearability and better heat dissipation performance.
6. Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.
