1000mm PP Double Layers Film Blown Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PP Film Blowing Machine
  • Raw Material：PP,LDPE,PE
  • Maximum Folding Width of Film：900mm
  • Screw Diameter：55mm*2
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FMP2-1000
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Machine Size：L*W*H: 6.0m * 4.5m * 4.0m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：double layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

PPA / PPEfilm width(mm)150--700300--900400--1100thickness0.02--0.15mmscrew diameter Φ45mm * 2 Φ55mm * 2 Φ65mm * 2L/D ratio28:1die diameter Φ220mm Φ330mm Φ430mmdie structureSpiral mandrel die chrome plated surface 40Crmain power11kw*218.5kw*222kw*2max output65kg/h85kg/h105kg/hTorque motor winderoptional equipmentauto-loader device, film surface treater, air compressor, rotary die head, draging rotary
PICTURES FOR REFERENCE:

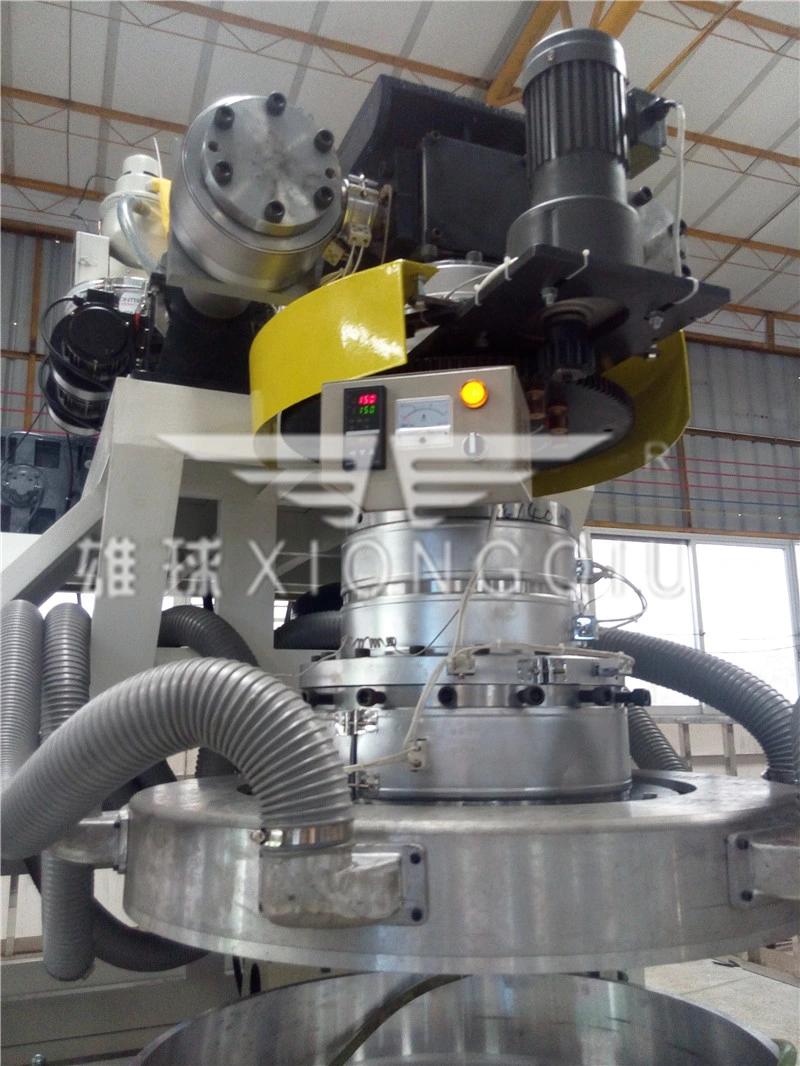

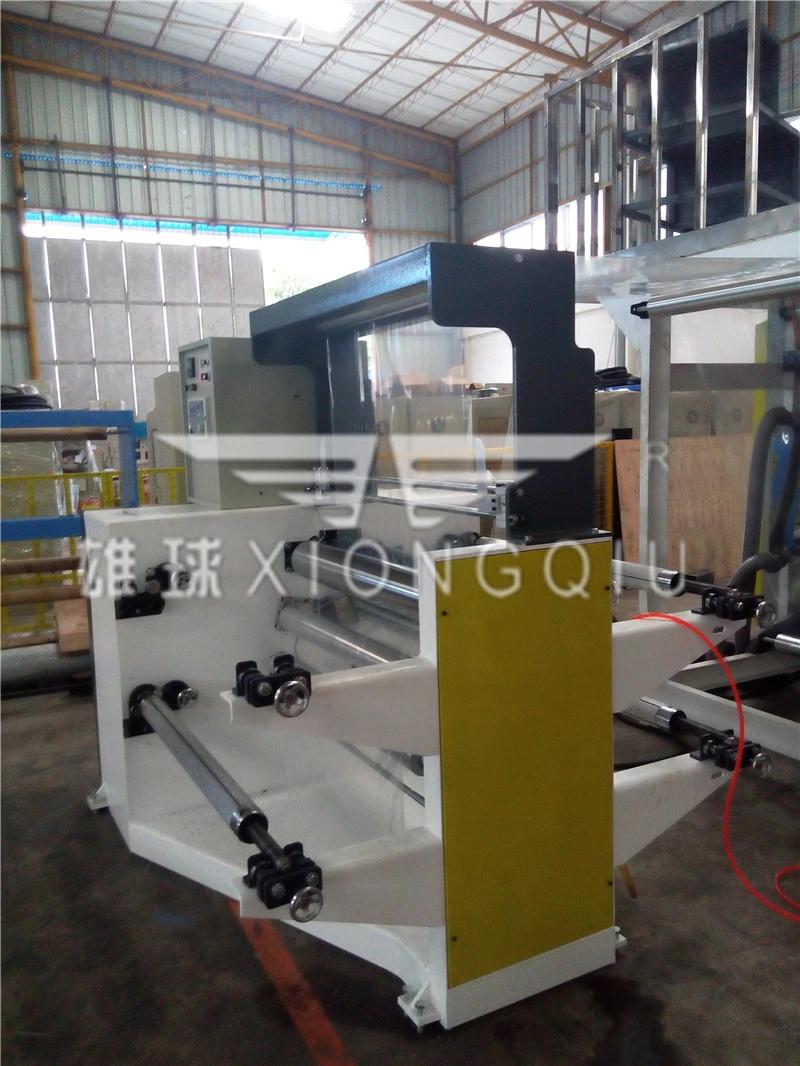

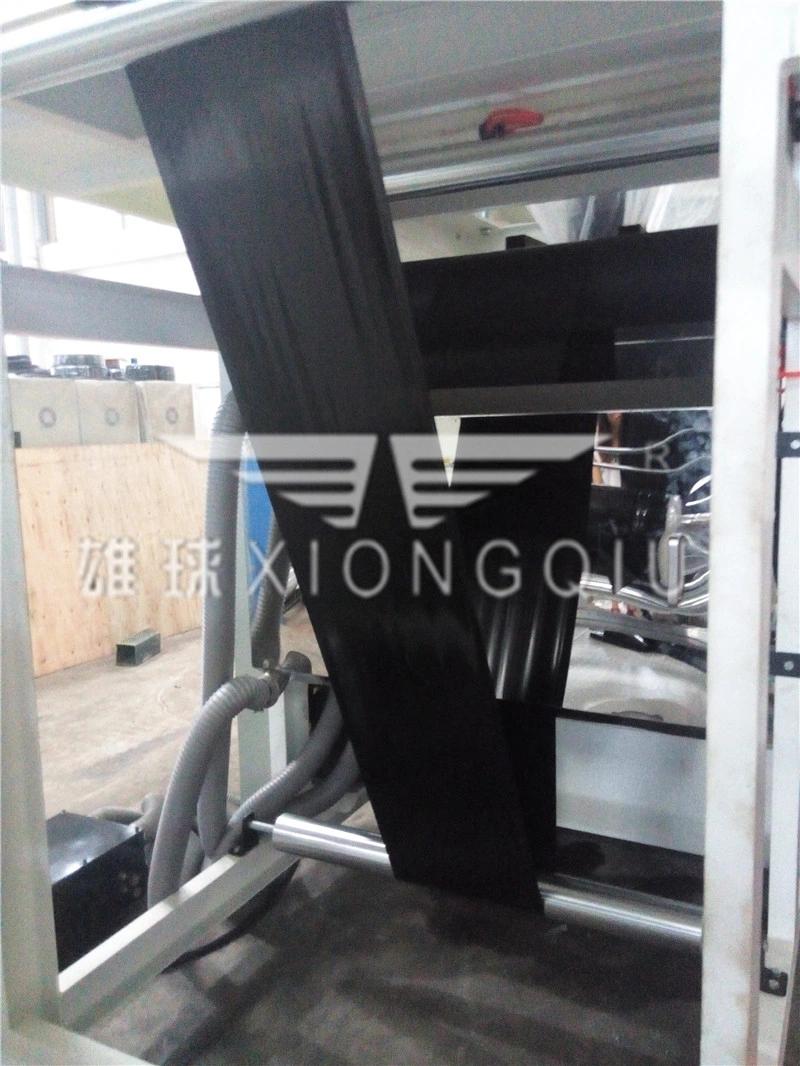

1000mm PP 2 layers co-extrusion film blowing machine
1000mm PP Double Layers Film Blown Machine
1000mm PP Double Layers Film Blown Machine
1000mm PP Double Layers Film Blown Machine
1000mm PP Double Layers Film Blown Machine
