• Model NO.：SJ series
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Brand：Guotai
• Voltage：380V,50Hz,3p
• Capacity：50-200kg,H
• Transport Package：Wood Bottom Case
• Specification：16*1*1.3m
• Trademark：GT
• Origin：China
• HS Code：8477209000
• Production Capacity：100sets,Months

Basic Info.

Model NO. SJ series Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Brand Guotai Voltage 380V/50Hz/3p Capacity 50-200kg/H Transport Package Wood Bottom Case Specification 16*1*1.3m Trademark GT Origin China HS Code 8477209000 Production Capacity 100sets/Months

Product Description

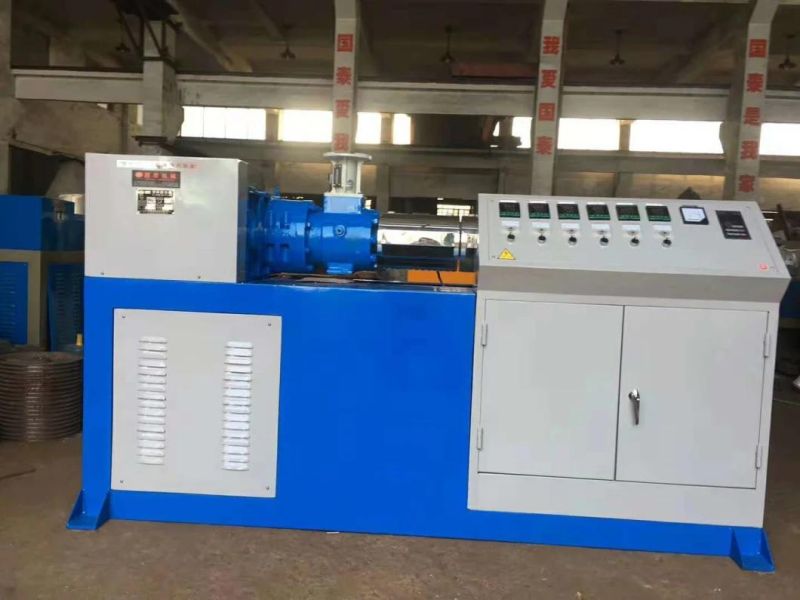

Extruder

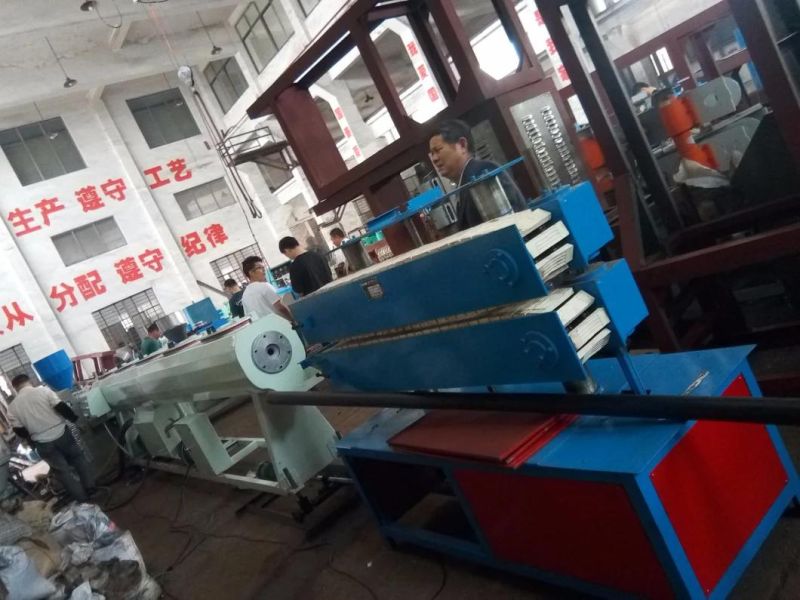

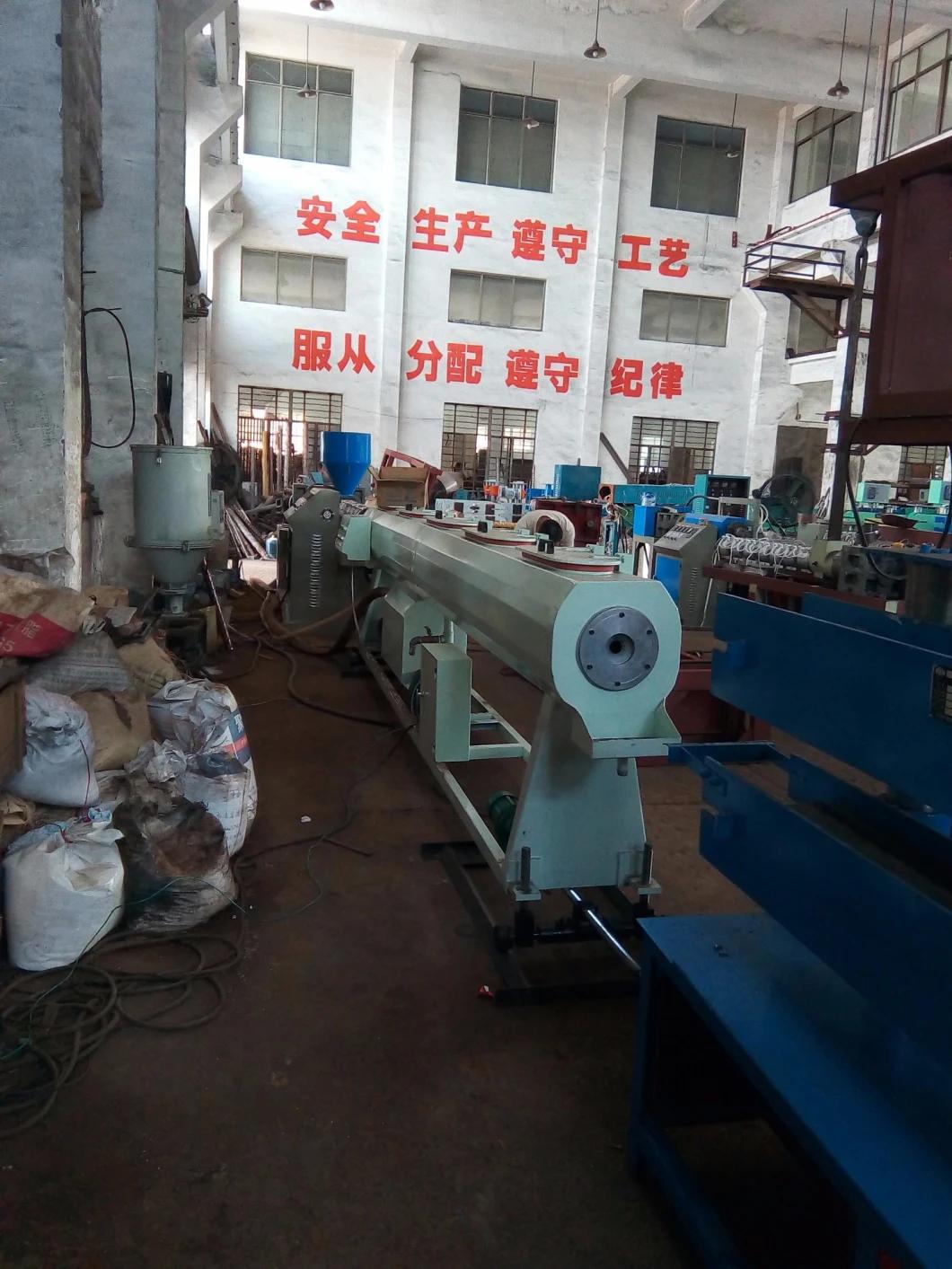

Plastic Extruder manufacturing plant
Application:
This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules

Specifications
Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption






The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder
Customer choice:

Mode	Screw  Dia.	Length  to   diameter	Rotational Speed  of  screw	Height  of  center  point	Capacity	Power Drive  motor
SJ-3-/25CY	30mm	25: 1	10-160r/min	1000mm	19.5kg/h	2.2kw, 3kw
SJ-45D	45mm	20: 1	10-90r/min	1000mm	22.5kg/h	5.5kw
SJ-45/25CY	45mm	25: 1	16-160r/min	1000mm	35kg/h	7.5kw, 11kw
SJ-45/28CY	45mm	28: 1	16-160r/min	1000mm	40kg/h	7.5kw, 11kw
SJ-45/25HY	45mm	25: 1	16-160r/min	1000mm	35kg/h	11kw
SJ-50/25HY	50mm	25: 1	16-160r/min	1000mm	40kg/h	11kw, 15kw
SJ-65/25HY	65mm	25: 1	8-80r/min	1000mm	100kg/h	18.5kw
SJ-65/28CY	65mm	25: 1	15-120r/min	1000mm	100kg/h	18.5kw, 22kw
SJ-65/28HY	65mm	28: 1	16-160r/min	1000mm	120kg/h	22kw, 30kw
SJ-65/30CY	65mm	30: 1	15-120r/min	1000mm	120kg/h	22kw, 30kw, 37kw
SJ-65/34CY	65mm	34: 1	15-120r/min	1000mm	120kg/h	22kw, 30kw, 37kw
SJ-70/25HY	70mm	25: 1	8-80r/min	1000mm	120kg/h	22kw
SJ-90/25HY	90mm	25: 1	10-100r/min	1000mm	155kg/h	30kw, 45kw, 55kw
SJ-120HY	120mm	25: 1	30-90r/min	1000mm	250kg/h	75kw
