• Model NO.：CHSJ-A
• Machine Weight：4T
• Certification：CE, ISO9001:2008, UL
• Brand：Chengheng
• Original：China
• Extrusion Capacity：45-85kg
• Traction Speed：100
• Transport Package：Wooden Case
• Specification：AS THE TYPE
• Trademark：chengheng
• Origin：Hebei Ningjin County
• HS Code：8477300000
• Production Capacity：100sets,Month

Basic Info.

Model NO. CHSJ-A Machine Weight 4T Certification CE, ISO9001:2008, UL Brand Chengheng Original China Extrusion Capacity 45-85kg Traction Speed 100 Transport Package Wooden Case Specification AS THE TYPE Trademark chengheng Origin Hebei Ningjin County HS Code 8477300000 Production Capacity 100sets/Month

Product Description

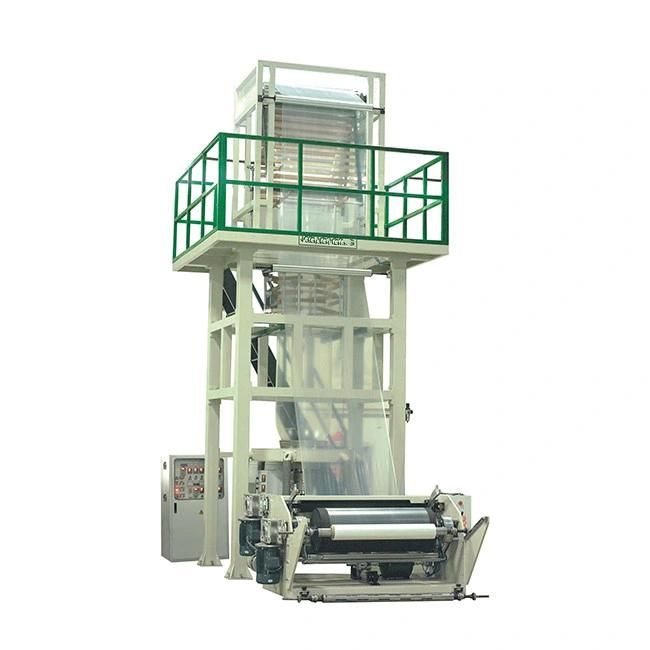

Name:CHSJ-45/50AP Plastic Film Blowing Machine First Choice for Vest Bag
        taiwan quality and 5 years quality garrantte
 Strategy pater with taiwan company
 HSIN LONG THREAD ROLLING MACHINE CO.,LTD.
 APOLLO PRECISION INDUSTRIAL CO.,LTD.




CHSJ-AP plastic film blowing machine adopts the specialextrusion system and die structure. With advanced craft, compact and reasonableconfiguration, balanced running, and convenient operation and maintenance, itis equipped with famous electrical components at home and aboard.

The extrusionsystem and plasticizing functions of the machine head have reached the modern advancedlevel and widely used in the production of 100% HDPE, mixed materials ofHDPE/LLDPE, 100% LDPE, 100% of LLDPE, and mixed materials of LDPE/LLDPE.

Itsfilm products are of performance superior to that of traditional HDPE and havesome good features including cost-effectiveness (it can add 40% renewable rawmaterials in the condition of quality guarantee), efficient plasticizing and goodfilm uniformity, high strength and no toxicity.

Many users utilize this machineset to produce film and bag products like shopping bags and vest bags(sandwichbags) in active demands at home and abroad. This machine set is the idealchoice for film producing enterprises.

Feature
 1 :the whole machine is square structure

 2 traction inverter control, host frequency conversion control, (optional fan frequency control, winding           frequency control) 100% inverter motor + frequency converter control
 3 Full enclosed overtemperature cooling device
 4 brand  Industrial electricity
 5   Auto Ioader
 6   Taiwan diehead,screws,inverter,gearbox


Optional accessories

   Corona treater
  Air compressor
   Mechanics screen changer
   Doubie winding
  360°Die rotary device
   full-automatic winder and lap changing equipment

MODEL	CHSJ-45A	CHSJ-50A
Diameter of screw	45mm	50mm
L/D ratio of screw	30:1	30:1
Main motor power kw	Level 4	level 4
Heating power  kw	11.4	13.4
Film width     mm	100-500	260-800
extrusion capacity	45 kg	65  kg
traction speed   m/min	15-70	15-70
Raw paterial	HDPE LLDPE	HDPE  LLDPE
Overall dimension	4.5*2.9*3.8	4.5*3.2*4.5

Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.five  year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.
