• Model NO.：SP-660
• Voltage：380V,50Hz
• Weight：6000-7000kg
• Power(W)：45kw
• Control Method：PLC
• Transport Package：Plastic Film
• Specification：CE
• Trademark：Sinoplast
• Origin：Zhe Jiang, Wen Zhou
• HS Code：8477409000
• Production Capacity：100 Sets Per,Year

Basic Info.

Model NO. SP-660 Voltage 380V/50Hz Weight 6000-7000kg Power(W) 45kw Control Method PLC Transport Package Plastic Film Specification CE Trademark Sinoplast Origin Zhe Jiang/ Wen Zhou HS Code 8477409000 Production Capacity 100 Sets Per/Year

Product Description

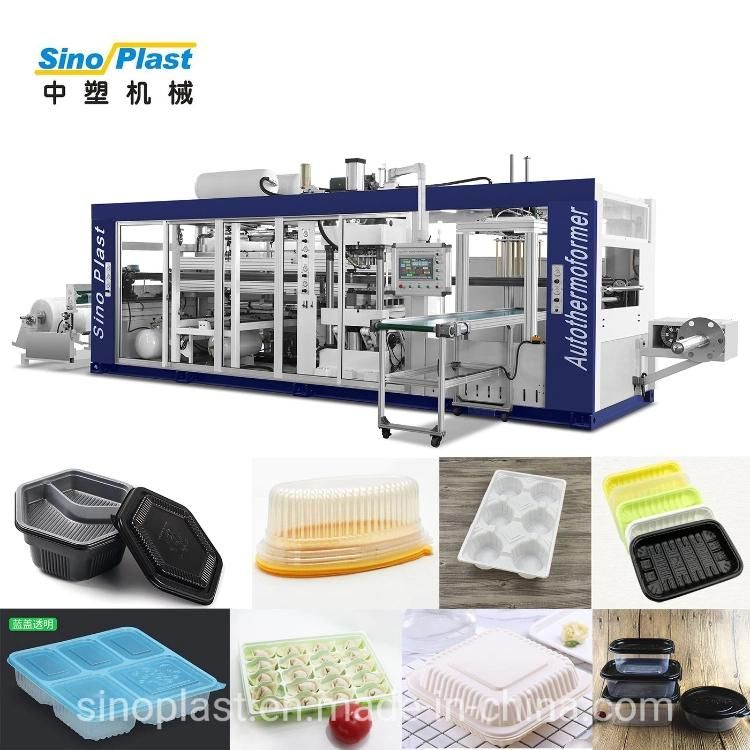

SP-760A 2 in 1 Multi Stations Thermoforming Machine

I. Usages:
This thermoforming machine can make various kinds of products with PP, PS, PET, PVC sheet, such as lids, trays, clamshell containers, bowls, blisters, etc. You could make different products with different moulds.
We could make 2 stages, 3 stages, 4 stages of thermoforming machine depends on customer's request.
This thermoforming machine combines sheet transporting (sheet index), thermoforming, hole punching (optional), cutting and stacking into one process. We could also design packing machine work online with the thermoforming machine which could reduce labor cost.

II. Main Technical Parameter:

Model	SP-760A
Max. Forming Area	760*520mm
Max. Forming Depth	125mm (Product Depth)
Suitable Material	PET, PP, PS, PVC, PLA, Biodegradable Sheet
Sheet Width	400-780 mm
Material Thickness Range	0.15-2mm
Max. Sheet Roll Dia.	1200mm
Running Speed	15-35cycles/min
Heating Power	8*10+10*8=160*800W=128KW
Sheet Index	5KW Servomotor
Plug Assist	7.5KW Servomotor
Forming & Cutting Station	11KW Reducing Motor
Air Pressure	0.7Mpa
Air Consumption	2000 Liters/min
Cooling Water Consumption	10 Liters/min 15° - 20°C
Power Voltage	380V, 50HZ, 3P
Approx. Machine Dimension	10500×4550×3000(L*W*H)
Approx. Machine Weight	13000kg

IV. Samples:

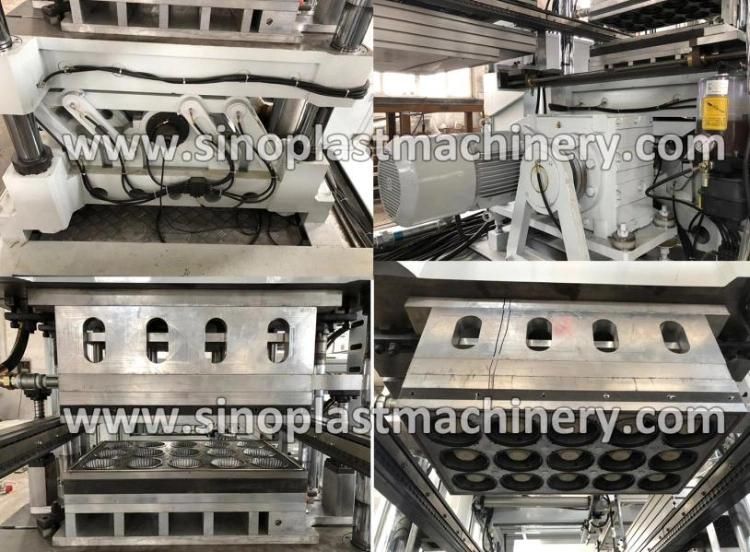

V. Molds:
