• Model NO.：MT1400
• Customized：Customized
• Condition：New
• Sheet Thickness：0.3-30mm
• Sheet Width：Max 2500mm
• Transport Package：Standard Export Packing
• Specification：Depend on request
• Trademark：Midtech
• Origin：China
• HS Code：84778000
• Production Capacity：50 Sets,Year

Basic Info.

Model NO. MT1400 Customized Customized Condition New Sheet Thickness 0.3-30mm Sheet Width Max 2500mm Transport Package Standard Export Packing Specification Depend on request Trademark Midtech Origin China HS Code 84778000 Production Capacity 50 Sets/Year

Product Description

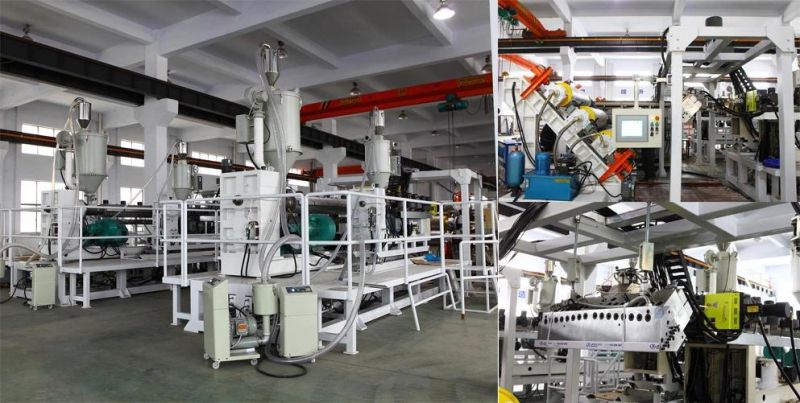

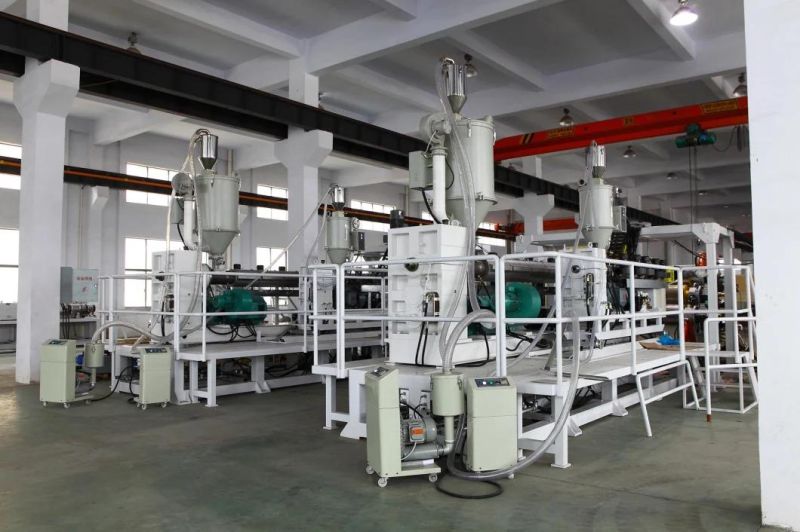

Plastic PMMA/PS Acrylic Perspex Colour transparent Board/Panel extrusion production line

PC PMMA PS Board Extrusion Line
1. The transimission of light:good pervious to light performance, ageing resistance
2. Weather resistance:UV co-extrusion processiong, can resist UV damage
3. Impact resistance, impact strength is common glass of  250 to 200 times
4. Flame retardant: naational test belongs to the B1 level, no fire, no poison
5. Temperature tolerance:PC board in the range of 40 degrees below zero to 120 degree does not affect the plate quality,stable phycial properties
6. Portability: light weight in handling and installation, can cold bending, hot forming
7. Good sound insulation: sound insulation effect, is the first selection of highway noise barrier material both at home and broad
8. Processiong range: the maximum wide 2m, thickness range 1.5-15mm


Main configurations:


Feeder	• To feed material into extruder;
Extruder	• World famous brand electrical component such as Siemens, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.

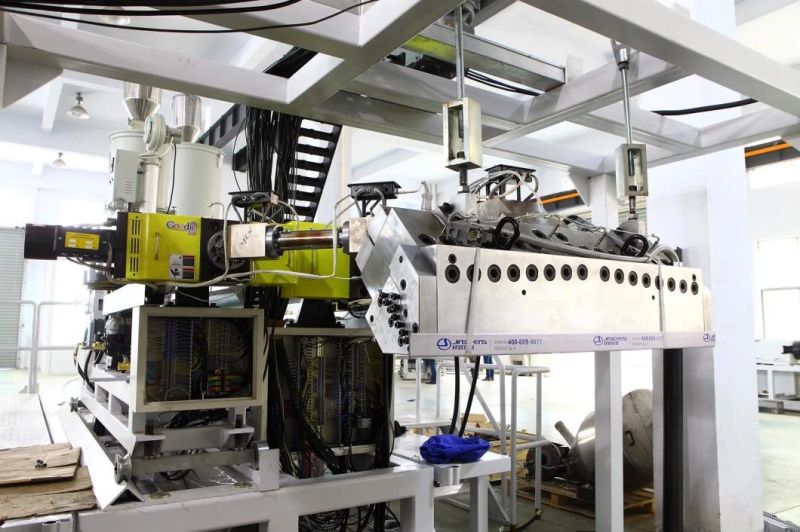

Flat die	• Coat hanger type • 5CrNiMo steel material • Apply to sheet, board

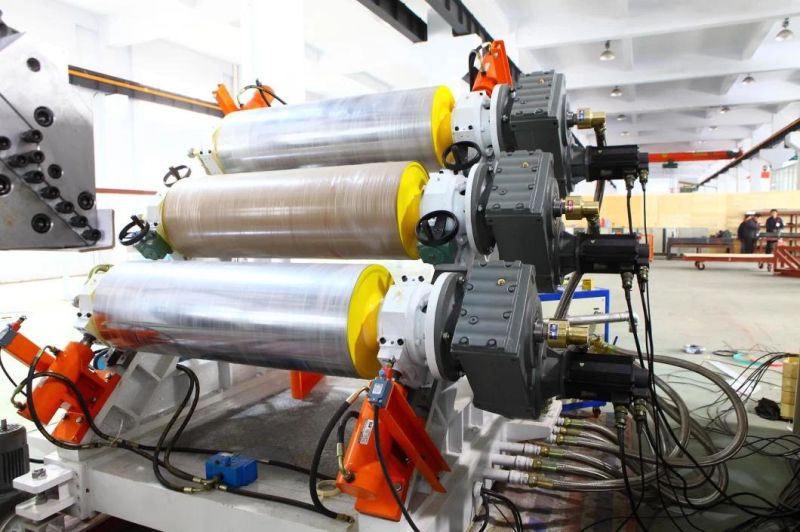

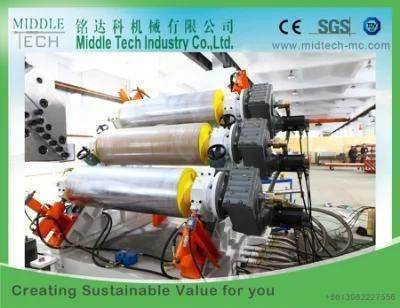

Three roller Calender	• Compacting driving by hydraulic • Rollers are driven separately and speed control by frequency inverter or servo motor • Temperature controller is include • Independent operation panel for easy operation • Equipped with lamination device
Cooling bracket and haul off	•Multi-group cooling rollers; •Speed control by frequency inverter • Compacting driving by pneumatic • With adopts wear-resisting rubber roller
Cutting system	• Plate shearer ensuing flat and chip free cutting
Stacker	• Stainless steel 304 as touching material

Specifications:


Type	SK-150	SK-170	SK-180
Raw Material	PP,PE,ABS,PC	PP,PE,ABS,PC	PP,PE,ABS,PC
Width	1220-1500mm	1200-1500mm	1500-2000mm
Thickness	3-30mm	3-30mm	3-30mm
Extruder Type	SJ150x35	SJ170x35	SJ180x35
Outout	500kg/h	700Kg/h	800kg

Why choose us
♦ Specified screw design and material application for high percentage CaCo3
♦ Speedy cooling forming die supports the production line with faster linear speed and higher efficiency;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
♦ Ability to provide the customized plastic extrusion solutions.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines:18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru......
