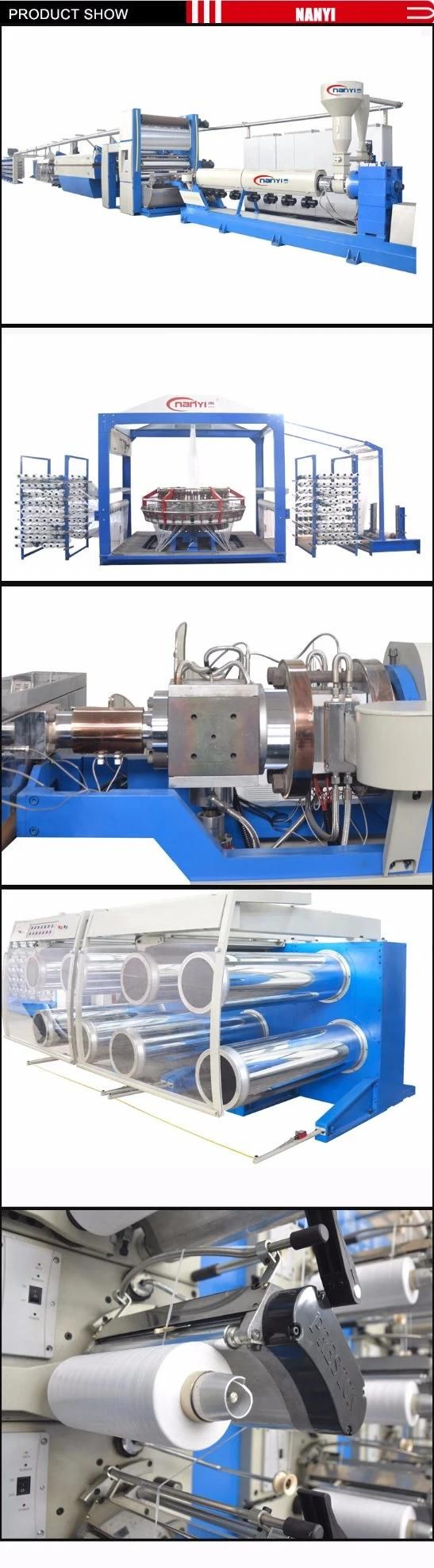

High Speed Plastic PP Polypropylene Flat Yarn Tape Extrusion Stretching Production Line

ZHEJIANG NANYI PLASTIC MACHINERY CO., LTD.
  • Type：Sheet Extruder
  • Plastic Processed：PP,PE,Pet
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw

Base Info

  • Automation：Automatic
  • Computerized：Computerized
  • Transport Package：Woden Packing in Container
  • Trademark：Nanyi
  • Origin：China

Description

TypeSJMS-Z75-33-850*8SJMS-Z90-33-1000*8SJMS-Z110X33-1200*8SJMS-Z120X33-1500*8SJMS-Z160X33-2000*8Max extrusion output(kg/h)200280380500630Diameter of Screw(mm)7590110120160L/D ratio of screw33:133:133:133:133:1Rotational speed of screw(r/min)20-12020-12020-12020-12020-100Width of die(mm)8501000120015002000Man linear speed(m/min)280280400400400Flat yarn denier scope   60-200tex60-200tex60-200tex60-200tex60-200texDrawing rate4-104-104-104-104-10Number of winder(spindles)136176208256344Dimensions of bobbin(D*L)mm38*23038*23038*23038*23038*230System installed power(kw)120160170210250Normal consumption power 120160170210250Installing dimensions(L*W*H)mm29000×3600×320032000×3600×320034000×3800×320037000×3800×320045000×3800×3200Weight(kg)2100026000300003200040000

Technical Paramters are subject to change without prior notice!
