• Model NO.：RSL-85,RSL-100,RSL-130,RSL-150,RSL-180,RSL-200
• Automation：Automatic
• Computerized：Non-Computerized
• Customized：Non-Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Machine Type：Plastic PP bag strand cutting granulator
• Application：Granulating Production Line
• Voltage：380V 50Hz 3Phase or customized
• Motor Brand：Siemens or customized
• Transport Package：Standard Plastic PP Bag Strand Cutting Granulator
• Specification：With capacity 150-1000kg,hr.
• Trademark：Mooge Tech
• Origin：Jiangsu, China
• HS Code：8477800000
• Production Capacity：30 Sets Plastic PP Bag Strand Cutting Granulator

Overview Product Description

This Plastic PP bag strand cutting granulator machine is designed and manufactured by MOOGE TECH, which is mainly used for waste plastic PE PP soft material, such as clean HDPE, LDPE, LLDPE film flakes, clean PP woven bag, etc.

The material go through transmission system, melting system, cooling system, cutting system and collect system will turn to be clean perfect pellets for reuse.
Product ParametersRDL Series Single Stage Compacting Strand-cooling Cutting Pelletizing Line
Working Flow

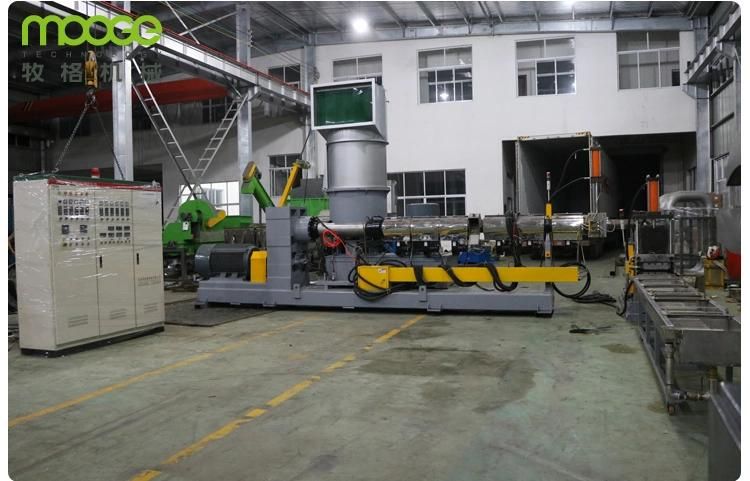

Working Flow (Compacting double stage strand-cooling cutting pelletizing line for example)

---- Belt Conveyor: Feeding material into compactor. If too much scrap irons, metal detector may be needed.
---- Compactor: With multi blades crushing and compulsively compress the flakes into extruder.
---- Single Screw Extruder (first stage): Plasticizing material with high temperature and exhausting hot gas.
---- Hydraulic Screen Exchanger: Filter material impurity to make production more stable.
---- Single Screw Extruder (second stage): Further plasticizing and filtering material with high temperature.
---- Die Mold: Materials come out in long strap.
---- Water Cooling Tank: Cooling the strap with cold water.
---- Air Drying System: Drying the strap.
---- Pelletizer Cutter: Cutting the strap into pellets with high speed rotation.
---- Vibration Screen: Pick out bad pellets and keep good pellets.
---- Air Blower: Blow pellets into the silo.
---- Storage Silo: Collecting pellets.
---- Control Cabinet: Control the whole line on/off (adopt famous brand such as Schneider, Siemens, etc.)

Detailed PhotosRelated Product

We also make the double stage and single stage Packaging & Shipping

• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading

Company Profile

JIANGSU MOOGE MACHINE CO.,LTDAfter Sales Service• Pre-sale: we giveour client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.


* In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want?
• What is the final size(mm) of granules you want?
• Other special requirements about the Plastic PP bag strand cutting granulator machine you want.
