• Model NO.：DB700
• Gross Weight：25kg
• Material：Acrylic , PVC , PC , Plastic
• Transport Package：Carton
• Specification：1.24*0.41*0.2m
• Trademark：DRIVECNC
• Origin：China
• HS Code：8477800000
• Production Capacity：5000

Basic Info.

Model NO. DB700 Gross Weight 25kg Material Acrylic / PVC / PC / Plastic Transport Package Carton Specification 1.24*0.41*0.2m Trademark DRIVECNC Origin China HS Code 8477800000 Production Capacity 5000

Product Description

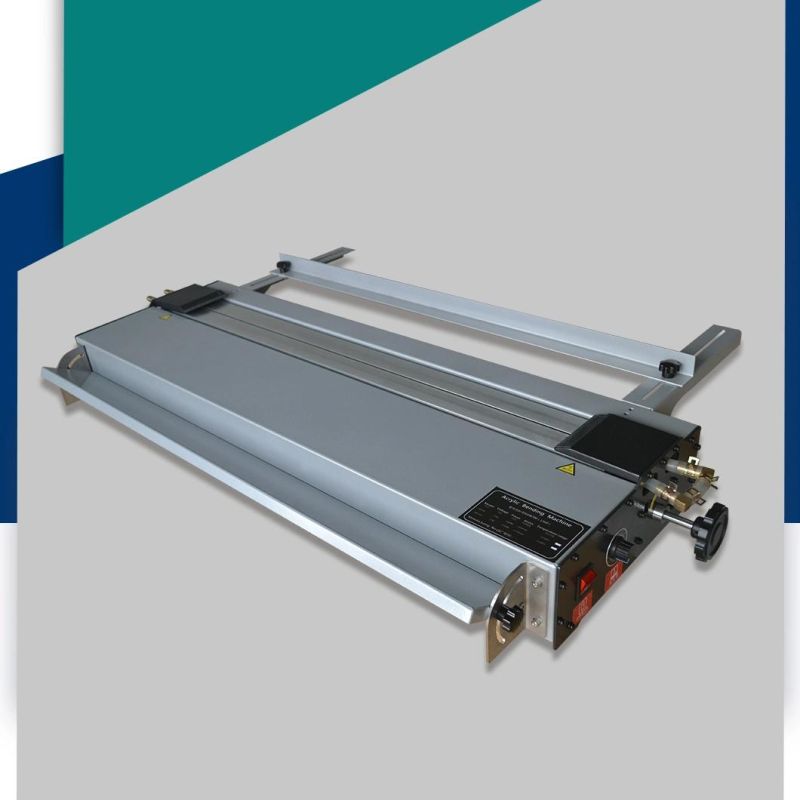

DB700 Acrylic Heating Bending Machine

Part 1. Machine Description

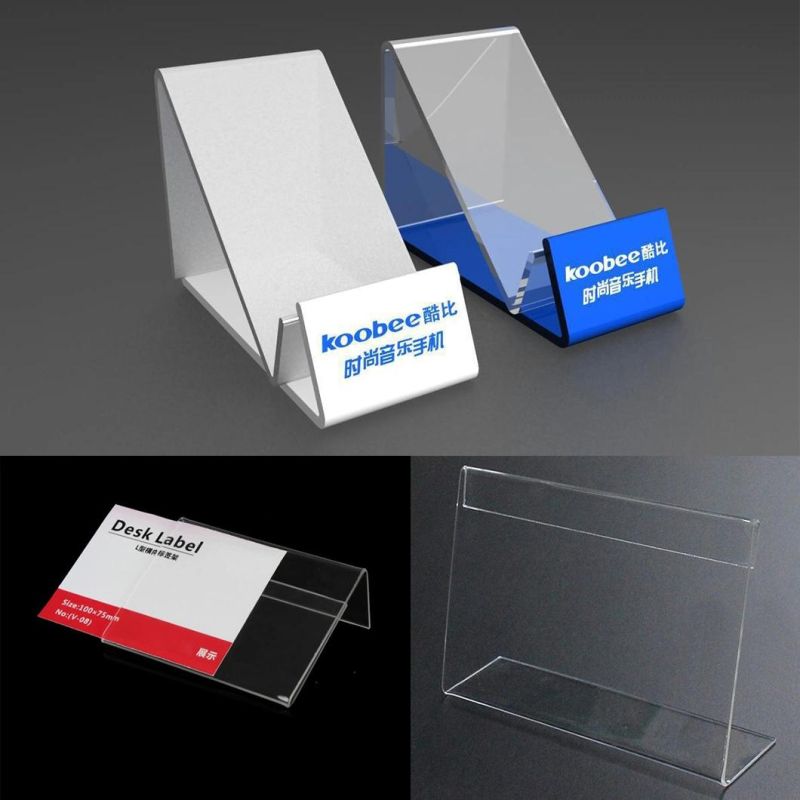

DB700 acrylic heating bending machine is widely used in bend plastic sheet for making channel letter /advertising light box / show support frame /sign making /market shelve / display case and so on.Because this machine also can process other plastic sheet,such as PVC / PC / ABS / PP,so It is also named plastic bending machine.

Part 2.Technical Specification


Model	DB700
Principle	Thermal forming(Infra-red)
Max thickness	1-10mm
Max heating width	<=650mm
Heating area gap	0-20mm
Temperature range	0-550ºC
Machine Size	1000*300*130mm
Material type	PVC / Acrylic / PC / ABS / PP
Power	1000W
Pump power	40W
Voltage	220V 50Hz 0.5KW
Weight	18KG

Machine ParameterFeatures

1. Humanized design, easy operation, and convenient use.
2. Advanced infrared heating technology with circulating water cooling system, adjustable temperature.
3. Adjustable heating surface of material, with scale to guarantee heating surface's accuracy, conformity, ensure good bending effect.
4. Evenly heated, instantly shaped, no deformation, no scorch, no foaming.
5. Instant forming, temperature adjustable; Water circulating cooling system equipped;

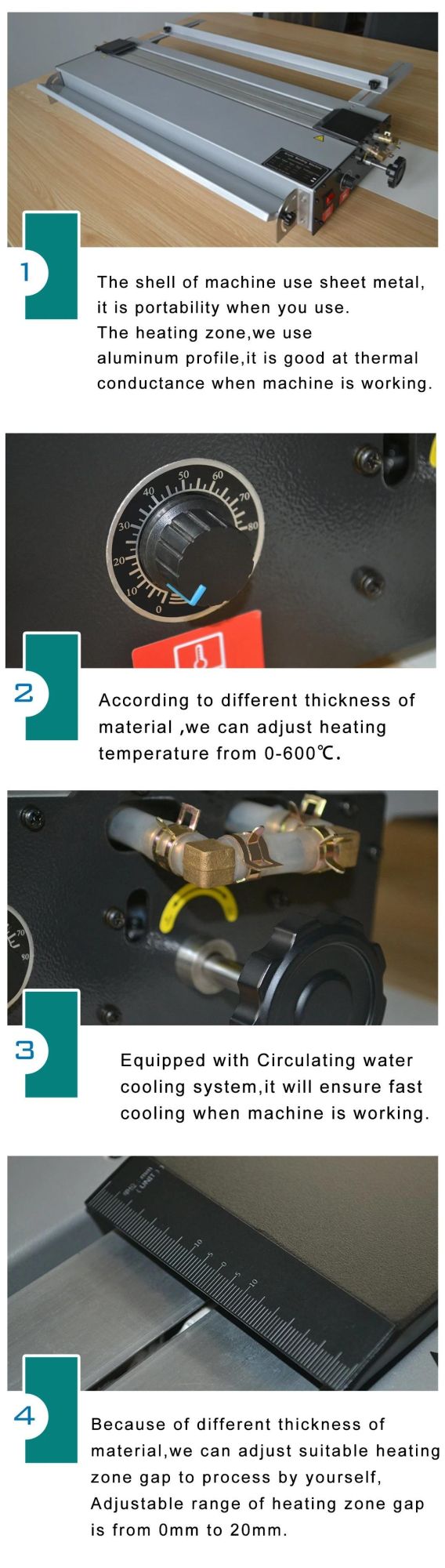

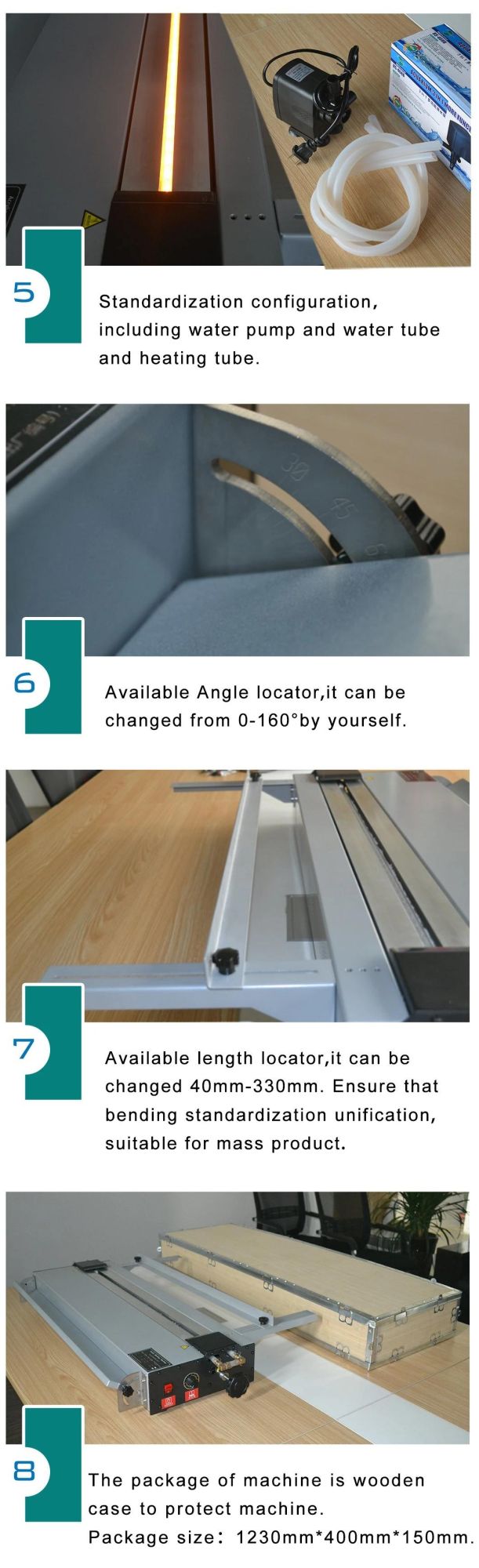

Part 3. Machine Detail Introduction
