• Model NO.：ZIP-55,65
• Transport Package：Wooden Case,Wooden Block,in Nude
• Specification：ZIP-55,65
• Trademark：Fangtai
• Origin：Ruian China
• HS Code：8477309000
• Production Capacity：20set,Month

Basic Info.

Model NO. ZIP-55/65 Transport Package Wooden Case/Wooden Block/in Nude Specification ZIP-55/65 Trademark Fangtai Origin Ruian China HS Code 8477309000 Production Capacity 20set/Month

Product Description

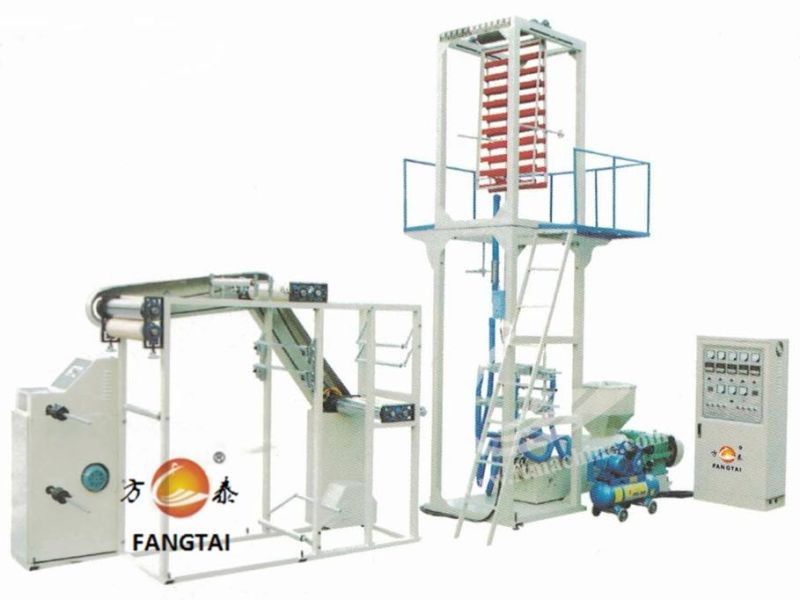

Fangtai Minigrip Bag Blowing Machine
Use:

It is an ideal zipper bag film blowing machine to produce zip lock film, with red line, with color strip. Zipper bag are widely used in food packing, medicine, hardwears and commodity. They can be opened and reclosed easily and sealed tightly.
Material: LDPE, LLDPE

Featrues:

1. Extruder for Red line on opening avaiable.
2. Extruder for color strip avaiable
3.Frequency converter speed control






Main Technical Variables

Model	ZIP-55	ZIP-65
Material	LDPE	LDPE
Extruding output	5-25kg	10-30kg
Film Width	50-480mm	100-580mm
Thickness of Film	0.04-0.15mm	0.04-0.15mm
Film Annulus Diameter	Φ550mm	Φ550mm
Diameter of Screw	Φ55mm	Φ65mm
Draw Ratio of Screw	28:1	28:1
Heater	12kw	15kw
Power	25kw	30kw
Overall Dimension(L*W*H)	6000*1400*4100mm	6000*1400*4100mm
