• Model NO.：SJ-120
• Model：Sj-120
• Screw Diameter：120
• Screw L/D Ratio：20:1-22:1
• Screw Rotary Speed：10-100r,Min
• Main Motor Power：45kw
• Output：135kg,Hr
• Machine Weight：3200kg
• Cover Dimension：4000*1500*1800
• Quality Control：Test Before Delivery
• Transport Package：Wooden Box Packaging
• Specification：CE SGS BV TUV
• Trademark：pym
• Origin：Ruian
• HS Code：847790000
• Production Capacity：135kg,Hr

Basic Info.

Model NO. SJ-120 Model Sj-120 Screw Diameter 120 Screw L/D Ratio 20:1-22:1 Screw Rotary Speed 10-100r/Min Main Motor Power 45kw Output 135kg/Hr Machine Weight 3200kg Cover Dimension 4000*1500*1800 Quality Control Test Before Delivery Transport Package Wooden Box Packaging Specification CE SGS BV TUV Trademark pym Origin Ruian HS Code 847790000 Production Capacity 135kg/Hr

Product Description

The Main/ First stage

Screw and barrel
Screw dia160mm, Length 2200mm, one set, based on 38CrMoALa material(HV >=950-1100)

Gearbox ZLYJ 280
Motor 55KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 75KW, the brand is Painier, quite a good brand in china

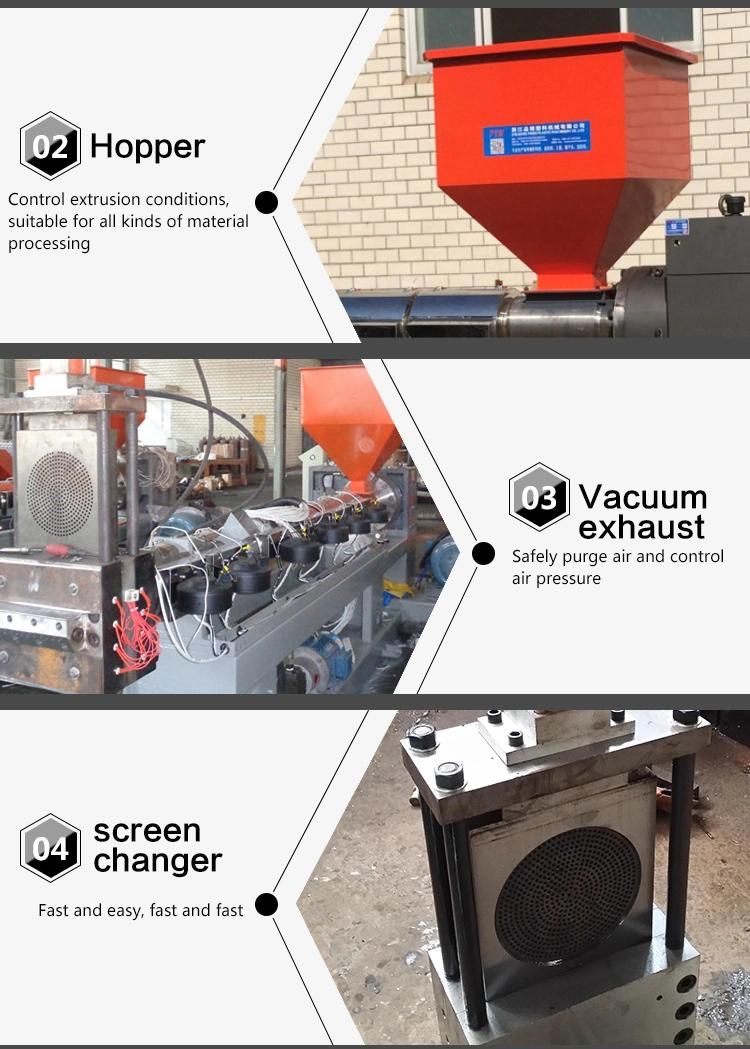

Screen changer with hydraulic pump, 280mmx280mm

The Auxiliary/ Second stage

Screw and barrel
Screw dia130mm, L/d 10: 1, one set, based on 38CrMoALa material(HV>=950-1100)

Gearbox ZLYJ 200
Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 18.5KW, the brand is Painier, quite a good brand in china
Screen changer with hydraulic pump, 280mmx280mm

The other parts:

Cutting machine 5kw, one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces with adjusted speed.
Water tank, one piece, in stainless

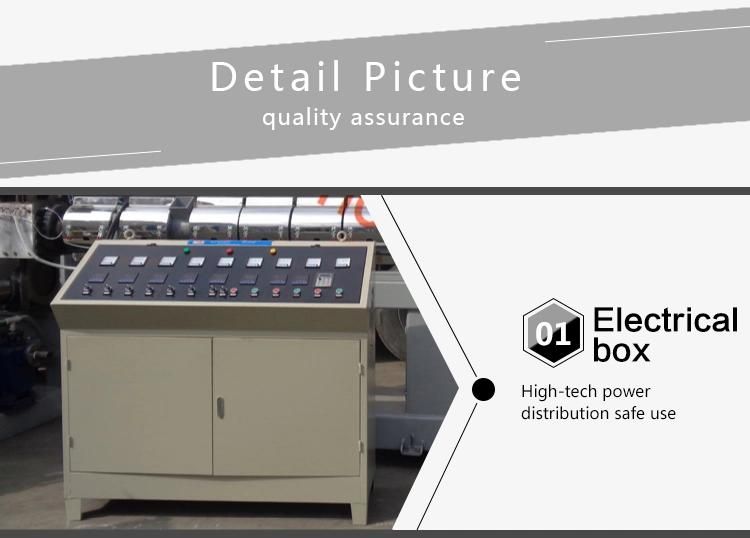

Electrical box, one piece, the brand is Chint, famous brand in china
Container, one piece


What is the packaging?
1) Wooden case package
2) Plastic film package
3) Suitable to transportation
4) As buyer request
5) One piece into one package
Payment: T/T, Western union, moneyGram and so on.


Our office:

1 Our Strength: We have an experience of more than 20 years of manufacturing and designing Plastic machines, varied Screws and Barrels and spares. We concentrate on improving quality, updating design, enhancing service and after service.

2 Location advantage: Located in -Ruian Town in Wenzhou City, near to Ningbo Port and Shanghai Port.

3 Market areas: Global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East etc. Welcome to visit our company.


FAQ:
Q1: What's your biggest concern?

A: Q------qulity more than 20 years' expierence + professional high technology production
Team + strict product inspection = high qulity

P------price large scale production + full set of independent production = reasonable price

Q2: Guarantee time and after-sale?
A: One year guarantee time, after one year, we have professional after-sales department

More question, pls feel free to contact us!
