• Model NO.：XY-8
• Certificate：CE, ISO, SGS
• Capacity：3-10tons,Day
• Size of Reactor：2200*6000; 2600*6600mm
• Material of Reactor：Q245r Boiler Steel
• Structure Form：Horizontal
• Fuel：Wood, Coal, Natural Gas, Fuel Oil
• Oil Output(Tyre for Example)：40%~45%
• Powerl：10-15kw
• Totall Weight：25-32tons
• Transport Package：Containers
• Specification：CE, ISO, SGS standard
• Trademark：JINYUAN
• Origin：Henan, China
• HS Code：8419409090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. XY-8 Certificate CE, ISO, SGS Capacity 3-10tons/Day Size of Reactor 2200*6000; 2600*6600mm Material of Reactor Q245r Boiler Steel Structure Form Horizontal Fuel Wood, Coal, Natural Gas, Fuel Oil Oil Output(Tyre for Example) 40%~45% Powerl 10-15kw Totall Weight 25-32tons Transport Package Containers Specification CE, ISO, SGS standard Trademark JINYUAN Origin Henan, China HS Code 8419409090 Production Capacity 50 Sets Per Month

Product Description

Specifications
A. Proces tires, plastic, rubber into fuel oil
B. National patents in this equipment
C. Without pollution
D. Quality is best

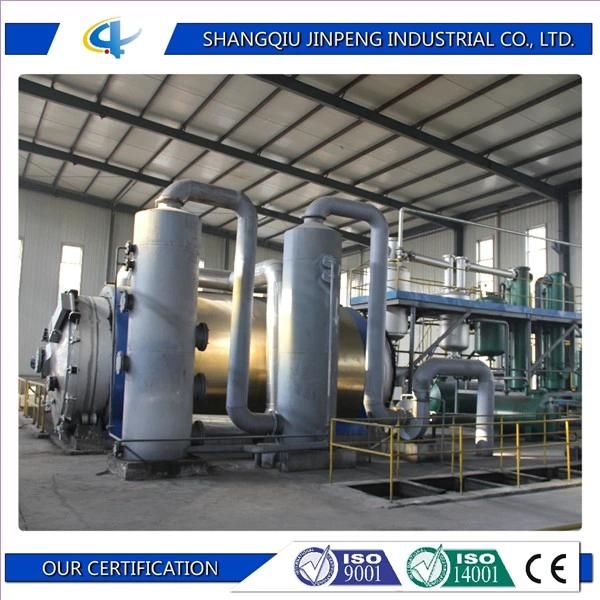

1. Each set of equipment are composed by ten parts:

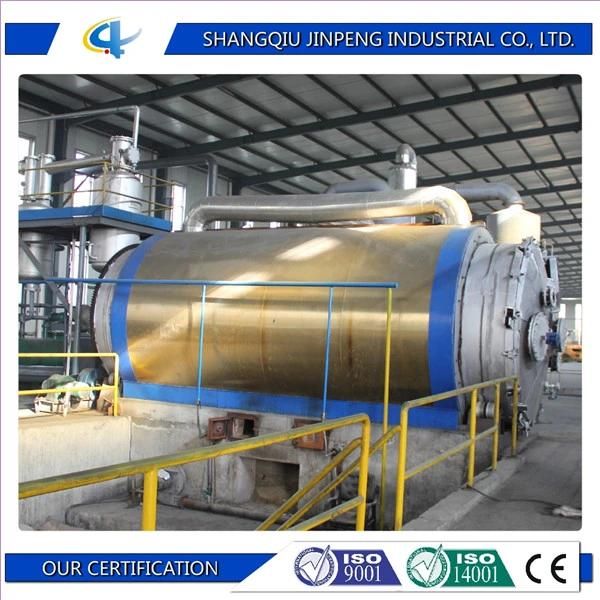

A. Main engine horizontal type revolving split processor.
B. Horizontal-fixed distillation Processor
C. Feeding-in system
D. Tapping system
E. Central electrically controlled system.
F. Condensation system.
G. Every oil refining systems.
H. Fuel gas heating system (waste gas processing system)
I. Waste water processing system
J. Flue dust removal system

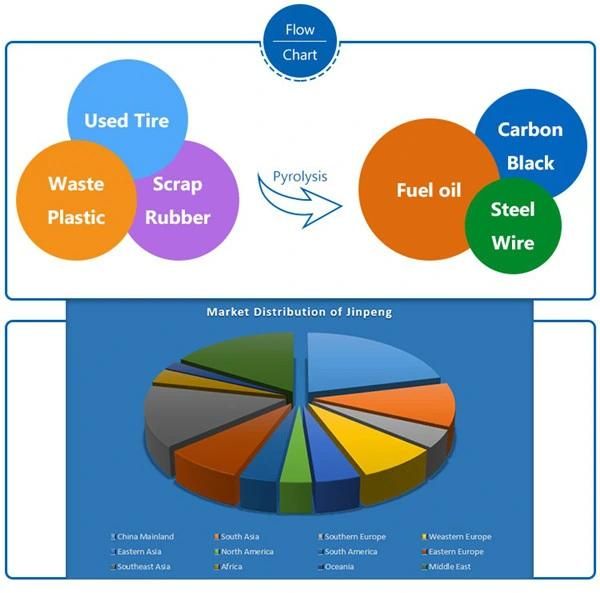

The output percentage and usage (tyre for example)


End       product	Percentage	Usage
Fuel oil	40%-45%	1. Used as fuel in Industrial such as steel&iron factories, chemical industrial or hotels and restaurants. 2. For heavy oil generators to get electricity. 3. For distillation to non-standard diesel oil
Crude carbon black	35%	1. Used for construction bricks; 2. Deep-processed to N330, N660, N774 or color carbon black.
Steel wire	10%-15%	Sold or reprocessing
Sync gas	10%	Used for heating the reactor

2. Domestic pioneer of this technology

A. In its key installment decomposition processor design, has thoroughly overcome the disadvantages of the domestic present vertical flat base split processor, such as bottom partial being heated non-uniformity, easy to break, low output, short service-life is short and so on, the main engine uses horizontal-type 360o structure-0.4 R/M
B. Fast practical feed-in and discharge system. The highest feed-in quantity of the XY-7 every 24 hour achieved 5 tons, Discharge time for 300kg carbon black only needs 90 minutes. The highest feed-in amount of the integral unit equipment every 24 hours achieves 15 tons.
C. Highly effectively gas heating system. In the process of refining oil, after the gas is heated up to 150, it will produce a large amount of unliquefied gas-CH4& C4H8, which cant be formed at normal temperature, normal pressure. If those gases have been fully burning by the specific designed gas nozzle, they can produce a great amount of energy and economize resources. Take the bunker coal as the example, when there is no fuel gas as combustion-supporting for the equipment, every 24 hours need 1.2 tons coals. After the fuel gas aid combustion, every 24 hour need 0.3 tons coal, which enhances production efficiency in the large scale and reduced the fuel cost?
D. Flue dust catcher system. It matches the bidirectional water impact type tornado dust removal room, and the rate of the flue dust catch is access than 95%.


3. Company Commitment:
The company pledged that, each kind of series equipment we sell have the consummation the post-sale service, a warranty period year, that thoroughly settle down customer extra worries.


Security
The main equipment is of high safety. The phase of the unliquefizable waste gas produced during the process is alkyl from C1 to C4, which is dangerous when burning directly. In our process, it is transferred first through a water close device and a safety device- burning air muzzle. Before burning, we should ensure the safety of production.

Environmental Protective
Dispose waste gas, liquid, and residua in the process:

CE certificate
National PATNTENTS
ISO9001& ISO14001
SGS certificate

SINCE 1982, WE HAVE BEEN FOCUSED ON WASTE MATERIAL RECYCLING MACHINE AND WASTE OIL DISTILLATION PLANT.
