600-1200 HDPE Insulation Shell Plastic Pipe Extrusion Line

Qingdao Huashida Machinery Co., Ltd.
  • Product Type：PE Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, UL
  • Customized：Customized

Base Info

  • Model NO.：PE-600,1200
  • Condition：New
  • Extruder：Sj-75,33
  • Produce Speed：1-6m,Min
  • Output Capability：300-350kg,H
  • Transport Package：Wooden Pallet,Plastic Film
  • Specification：pipe dia. 110-600mm
  • Trademark：Huashida
  • Origin：Qingdao
  • HS Code：84772090
  • Production Capacity：100sets,Year

Description

Basic Info.

Model NO. PE-600/1200 Condition New Extruder Sj-75/33 Produce Speed 1-6m/Min Output Capability 300-350kg/H Transport Package Wooden Pallet/Plastic Film Specification pipe dia. 110-600mm Trademark Huashida Origin Qingdao HS Code 84772090 Production Capacity 100sets/Year

Product Description

600-1200 HDPE Insulation shell plastic pipe extrusion line

Model:                                630-1200mm
Raw material & formulation: HDPE pellets
Total length of the line:         40m
Total power :                       about 445KW
Extruder:                            SJ-120/33
Output capability:                700-900kg/h
600-1200 HDPE Insulation Shell Plastic Pipe Extrusion LineIntroduction:
The insulated pipe/jacket/jacket tube of  PU Insulated Pipe/the thermal insulation pipe/jacket tube which is produced by vacuum calibrating method pre-insulated pipe outside casing extusion line of Qingdao Huashida Machinery Co. Ltd. is mainly made of HDPE after extrusion. This insulated pipe has smooth internal and external wall, long service life, its anti-corrosion insulation and mechanical performance is good, the installation of the insulated pipe is low. So the  PU Insulated Pipe Extrusion Line of Qingdao Huashida Machinery Co. Ltd. greatly reduced the cost of manufactory and improved the production.

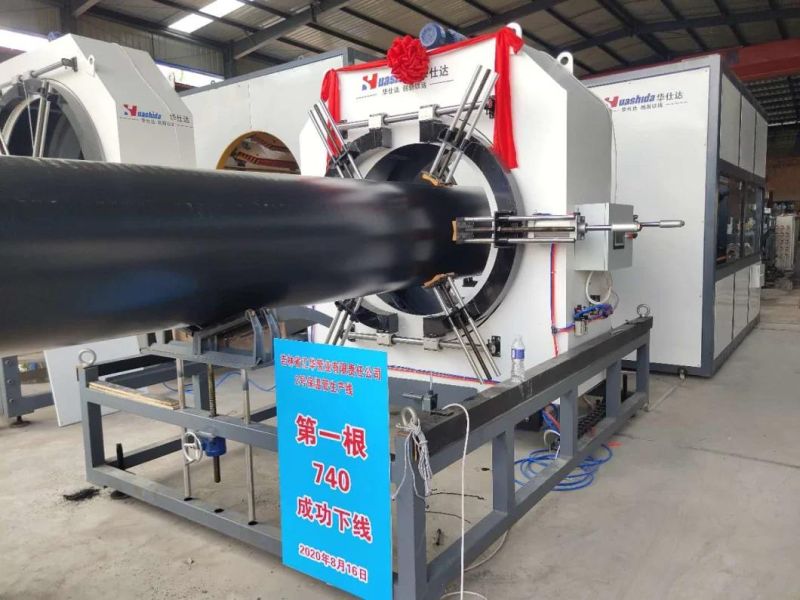

600-1200 HDPE Insulation Shell Plastic Pipe Extrusion Line
Main machine line composed

No.NameQty.
1Hopper dryer & vacuum loader1set
2SJ90/33 High-efficiency Single Screw Extruder1set

3		Die head & Mould & Calibrator1set

4Vacuum calibration tank 6000mm 1set
5four-caterpillar Haul-off1set

6		Planetary cutting machine(Including dust catching device & ellipse correction)
1set
7Stacker1set
8PLC central controlling system1set

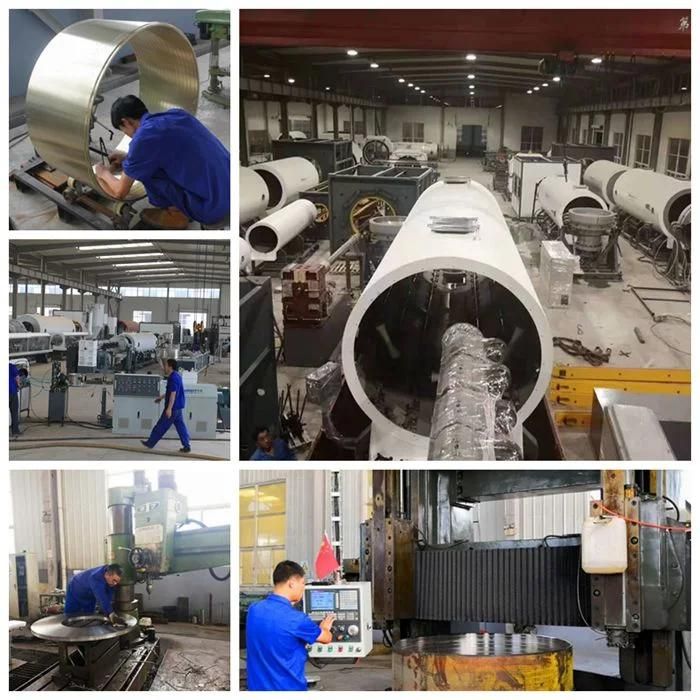

WORKSHOP

600-1200 HDPE Insulation Shell Plastic Pipe Extrusion Line
Client Visiting
600-1200 HDPE Insulation Shell Plastic Pipe Extrusion Line

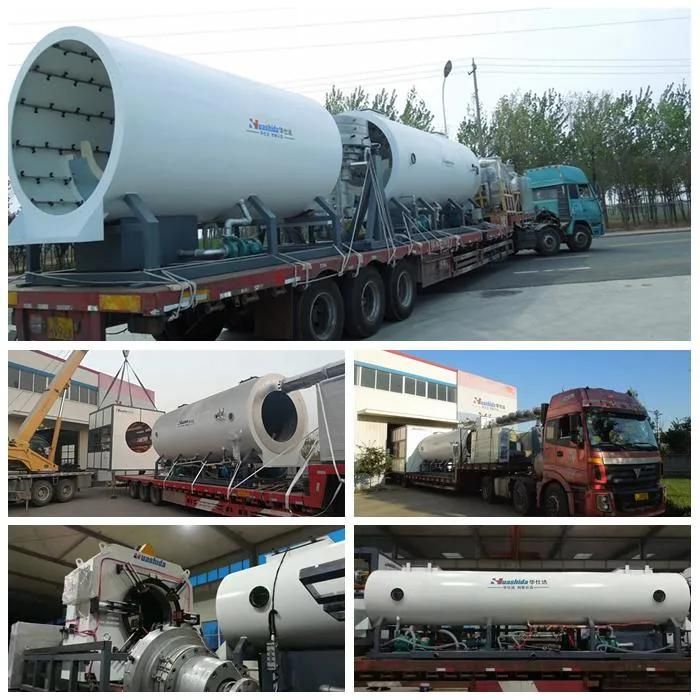

Delivery 600-1200 HDPE Insulation Shell Plastic Pipe Extrusion Line
Certification
600-1200 HDPE Insulation Shell Plastic Pipe Extrusion Line

     Welcome you contact us to know more detail !
