• Model NO.：FD30
• Making Bottles Range：2ml-2000ml
• Suitable Material：HDPE,LDPE,PP,PS,EVA
• Max.Height of Bottle：240mm
• Max.Dia of Bottle：100mm
• Transport Package：Sea Worthy Standard Packages
• Specification：3200*1150*2200
• Trademark：FD
• Origin：Jiangsu China
• HS Code：8477401000
• Production Capacity：20sets,Month

No.ItemUnitFD30FD50FD701Dia. of screwmm4045502Screw L/D ratio 2222223Max. theoretical injection capacitycm³1652543244clamping force of injection mouldkn3004506005clamping force of blowing mouldkn5570806pressure of hydraulic systemMpa1416167Max. pressure of compressing airMpa1118Wastage of cooling waterm³/min≥0.3≥0.5≥0.89Range of formability productml1.5-20001.5-20001.5-200010Height of formability productmm≤200≤200≤20011Dia of formability productmm≤100≤100≤10012Total powerkw24.7364813Overal size(L×W×H)mm3200×1150×22003750×1300×23004000×1450×235014Machine weightton466





»Machine Main Parts Brand

Key partsBrandServo motor / VDP(Optional)Techmation/YukenHydraulic motorIntermoteHydraulic valveYukenPneumatic valveFestoElectrical valveSchendier or OmronLiner scaleJEFFRAMControllerJinghua/Omron(optional)ContactorSchendierSealsDZApproach switchOmron

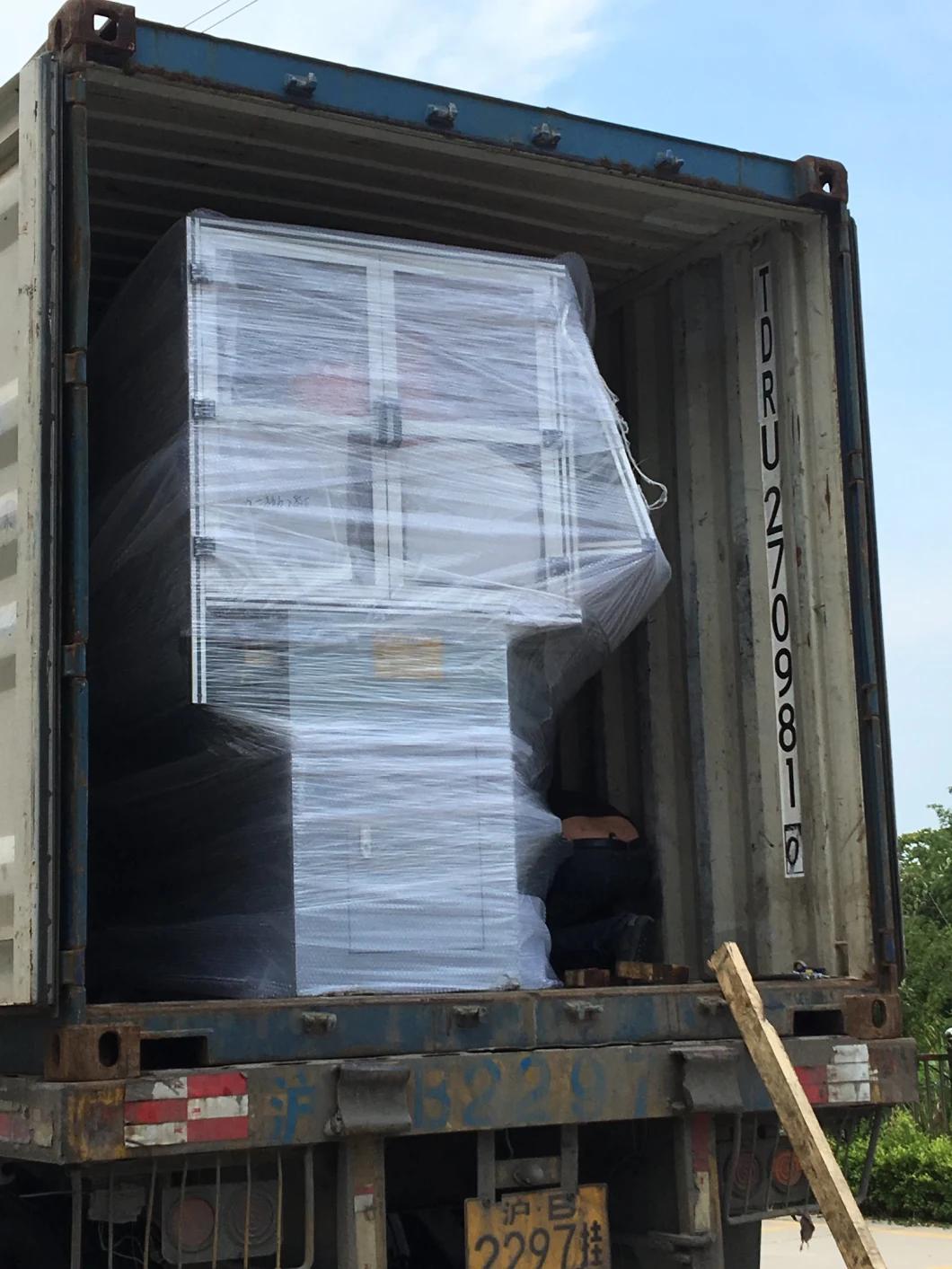

»Packaging & Shipping
