Plastic Machinery

PP PS PC Acrylic ABS Sheet Making Machine

Zhangjiagang Sevenstars Machinery Co., Ltd.
  • Type:Sheet Extruder
  • Plastic Processed:PP
  • Product Type:Extrusion Molding Machine
  • Feeding Mode:One Feed
  • Assembly Structure:Integral Type Extruder
  • Screw:Single-Screw

Base Info

  • Model NO.:BDX-S
  • Engagement System:Full Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Motor:Siemens
  • Electric Element:Siemens and Schneider
  • Color of The Machine:Optional
  • Quality:Very Good
  • Transport Package:Sea Worthy Package
  • Specification:CE ISO
  • Trademark:Sevenstars
  • Origin:Zhangjiagang Jiangsu China
  • HS Code:84772090
  • Production Capacity:50 Sets Per Year

Description

Basic Info.

Model NO. BDX-S Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Motor Siemens Electric Element Siemens and Schneider Color of The Machine Optional Quality Very Good Transport Package Sea Worthy Package Specification CE ISO Trademark Sevenstars Origin Zhangjiagang Jiangsu China HS Code 84772090 Production Capacity 50 Sets Per Year

Product Description


Over 10 Years Experience Suitcase ABS PC Plastic Sheet Extrusion  Machine Line


Extrusion Screws:
According to the different material features, it adopts ideal, reasonable and high-efficiency three-layers extruder, which has the characteristics of high output, good plasticizing capacity.

Mould:
This mono-layer or multi-layer co-extrusion mould is adopted hanger design. It processes hard chrome plating and mirror polishing, ensuring to extrude stable, uniform , good smooth finish sheet.

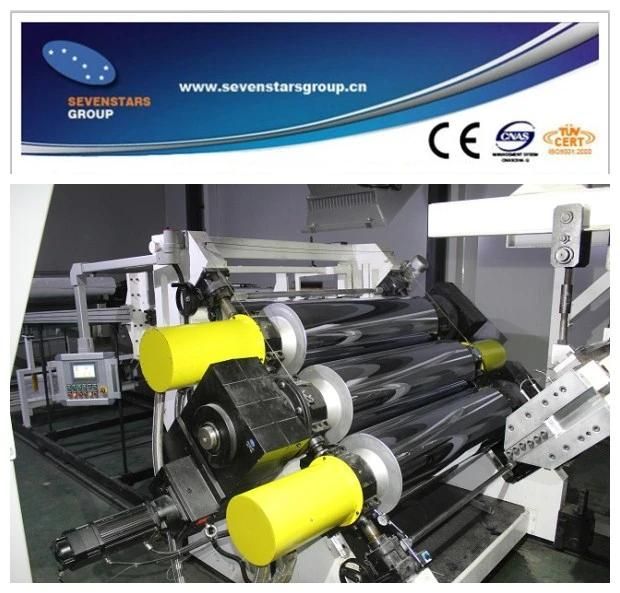

Three-roller Calender:
It adopts vertical structure and the independent control of oil and water control device, to ensure precise constant temperature control. Rollers adjust the speed independently , which has the characteristics of easy operation, easy to adjust thickness, high density sheet.

Haul-off Unit:
It adopts the design of upper-lower cylinder pressure type, stepless frequency conversion timing, which is suitable for different extruded speed. Track the length of sheet transfer, it provides strong guarantee for the stable production.

Cutter:
The cutting board is adopted motor drive type, which has the function of auto measuring length and cutting. It can cut the sheet length effectively and smoothly.


(Model)YX-21AP
(Plate thickness)1-4MM
(Plate Width)1-900MM
(Yield)Around 300KG/HR
(Weight)14T
(Overall Dimension)17600*5700*3300MM
(Total Power)200KW
