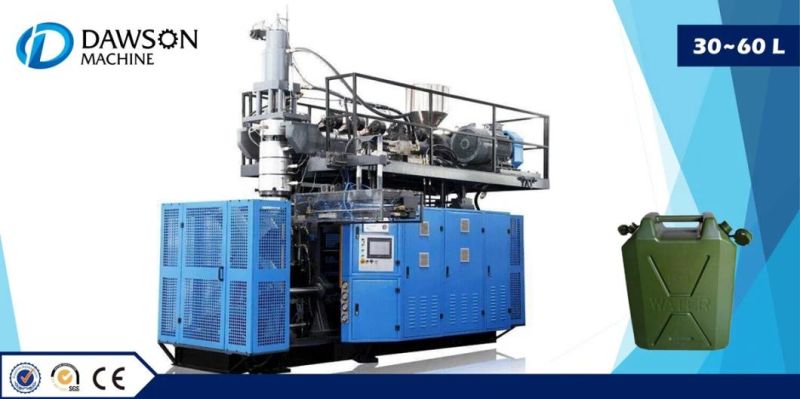

• Model NO.：ABLD90
• Max. Product Volume：60L
• Application：30~60L Bottles, Jerry Cans, Toys
• More Application：Plastic Oil Drums, Containers, Jerry Cans, Barrels
• Suitable Material：PE.PP,PVC,PS,PETG,So on
• Output Capacity：40~50PCS,H
• Weight：12t
• Plasticization：100 ~ 130kg,H
• Heating Zone：4 Aluminum Heater
• Heating Power：15~18kw,H
• Clamping Force：210~260kn
• Template Distance：450~1000mm
• Max Mould Size：700X950mm
• Movement Control：Japanese Mitsubishi, Chinese,English Version
• Summarize：Taiwan Airtac Pneumatic System
• Electromagnetic Valve：Taiwan Airtac
• Transport Package：Film Packaging
• Specification：ABLD90
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：50~60 PCS,H

Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so onMax volumeABLD90 max: 60LOutput capacity40~50pcs/hSize4.6×2.4×3.8(M)Weight12TsystemSpecificationParametersNotePlasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw∮90mm,L/D ratio 25, 38CrMoALACooling system availablePlasticization100 ~ 130Kg/HHDPEHeating Zone4 Aluminum HeaterAutomatic heatingHeating power15~18KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) Cooling Fan4zone        Automatic coolingExtrusion systemSummarizeHigh-grade alloy steel, center feeding Die head number1 Center distance of die heads/ Max die mouth∮280~340mm Heating zone4   Stainless steel heating cycle Heating power5~7KW Clamping systemSummarize

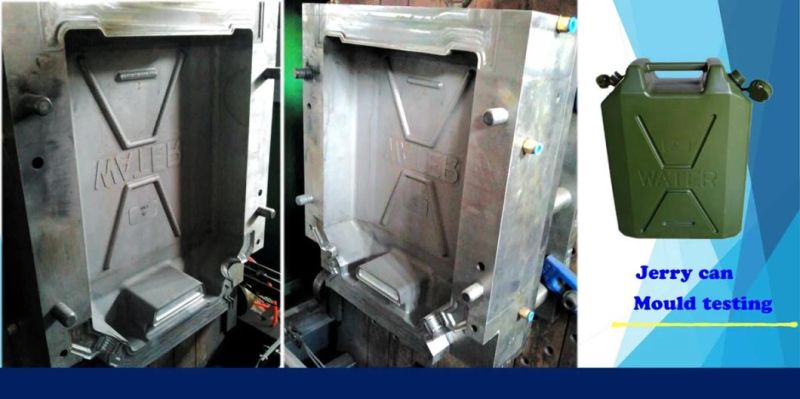

 High intension, rigidity, center mold locking, stable mould opening and clamping system  Clamping force210~260KN Template distance450~1000mm Max mould size700X950mm Mould materialHigh grade 50# steel Electric systemSummarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
systemOperate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module Movement controlJapanese Mitsubishi, Chinese/English
Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motorThree phase asynchronous motor (380V/220V,50/60HZ) Oil pumpImported double pump ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.6Mpa Air displacement0.8M3/min Electromagnetic valveTaiwan AIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow90L/min Water pressure0.3-0.6MPa
