• Model NO.：TSX SLJ
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Capacity：0.2-1800kg,H
• Series：Tsx, Slj
• Transport Package：Pallet,Case
• Trademark：TOPSUN
• Origin：Yantai, China
• HS Code：8474
• Production Capacity：10 PCS,Month

Basic Info.

Model NO. TSX SLJ Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Capacity 0.2-1800kg/H Series Tsx, Slj Transport Package Pallet/Case Trademark TOPSUN Origin Yantai, China HS Code 8474 Production Capacity 10 PCS/Month

Product Description

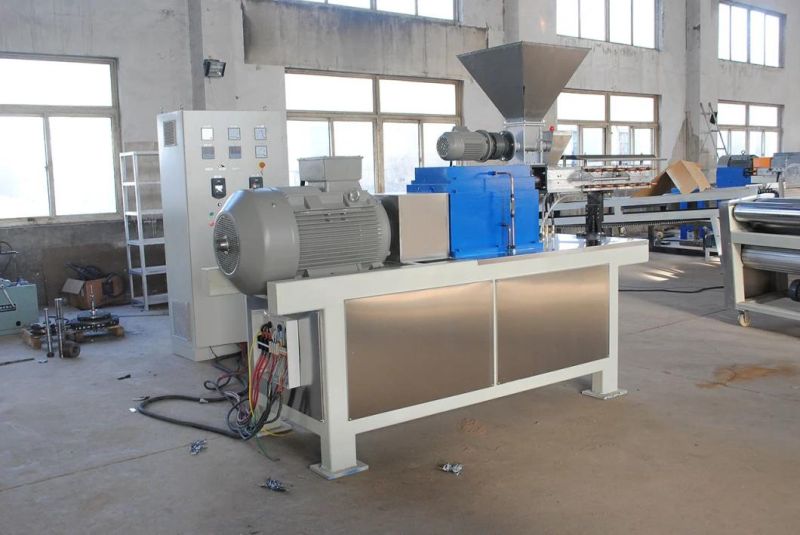

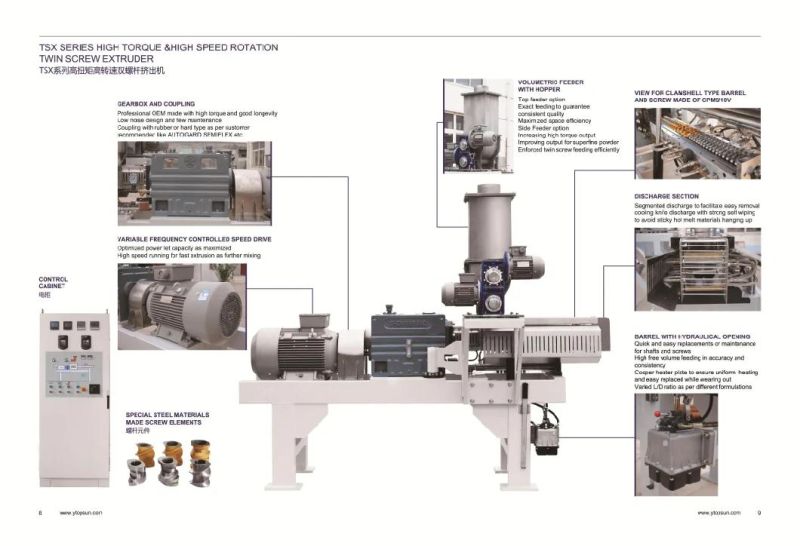

High torque & High Speed Rotation Twin-Screw Extruder:


Website: ytopsun.en.made-in-china.com, ytopsun.en.made-in-china.com


Main Features:

*Full Gearbox from professional OEM maker, low noise, durable longevity

*High screw speed, high shearing, quick discharge

*Independent lube oil cooling system design

*Torque limiter to protect the drive train

*Suitable for reclaim powder, special powder production

*Split design of barrel and liner inserts for easy cleaning and maintainence

*Top & Side feeding options

*Other features same as conventional type extruder

Technical Parameters:


Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length (mm)	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-40	80-260	40	16D	0-800	11/15/18.5	0.55	8	1850*700*1750
TSX-52	150-450	52	16D	0-800	22/30/37	0.75	10	2700*900*2200
TSX-65	400-1000	65	16D	0-800	45/55/75	1.1	12	2900*1000*2400
TSX-75	800-1200	75	16D	0-800	75/90	1.5	16	3100*1200*2500
TSX-85	1200-1800	85	16D	0-800	90/110	2.2	20	3700*1500*2900

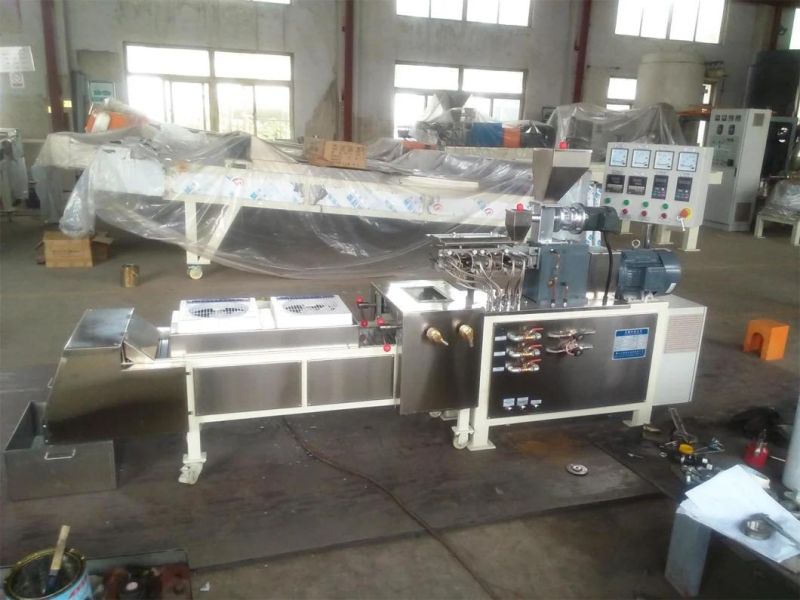

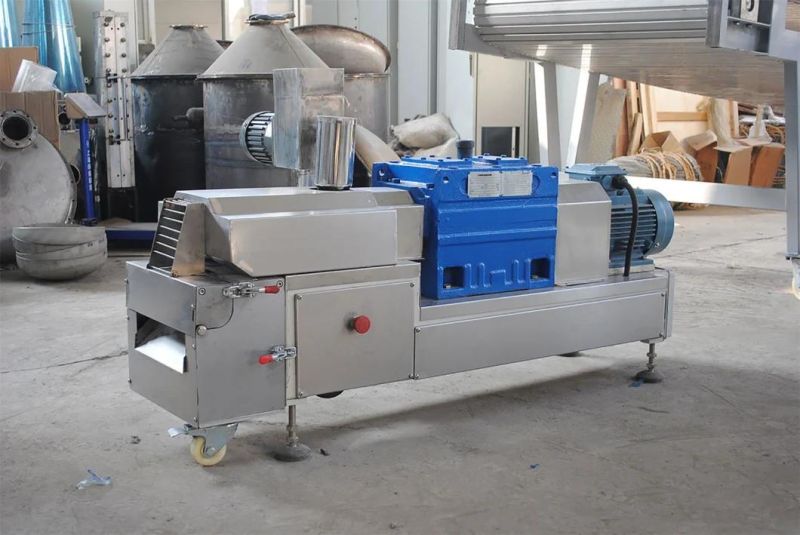

Conventional Type Co-Rotation Parallel Twin Screw Extruder

Features:

*Strong shearing, easy cleaning

*Accurate auto temperature control, high cooling & heating exchagne

*Hinged clamshell type barrel opening, segmented liners for easy replacing and cost saving

*Feeder easy assembly & disassembly, inner structure to avoid agglomeration

*Configurable screw applied for defferent powder formulas

*Screw and barrel adopt special materials like Cr12MoV, CPM, etc., high wearing resisting

*Quite gearbox with low noise dB level

*Torque limiter to protect the drive train

*Low energy consumption

Technical Parameters:


Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
SLJ-40	80-220	40	16D	0-500	11/15/18.5	0.55	4	1800*600*1700
SLJ-50	150-300	50	16D	0-500	22/30	0.75	8	2600*700*2000
SLJ-55	300-400	55	16D	0-500	30/37	0.75	8	2700*900*2300
SLJ-60	400-600	60	16D	0-500	45	1.1	12	2750*1000*2350
SLJ-75	600-800	75	16D	0-500	55	1.5	12	2900*1100*2400
SLJ-80	800-1200	80	16D	0-500	75/90	2.2	20	3700*800*2800

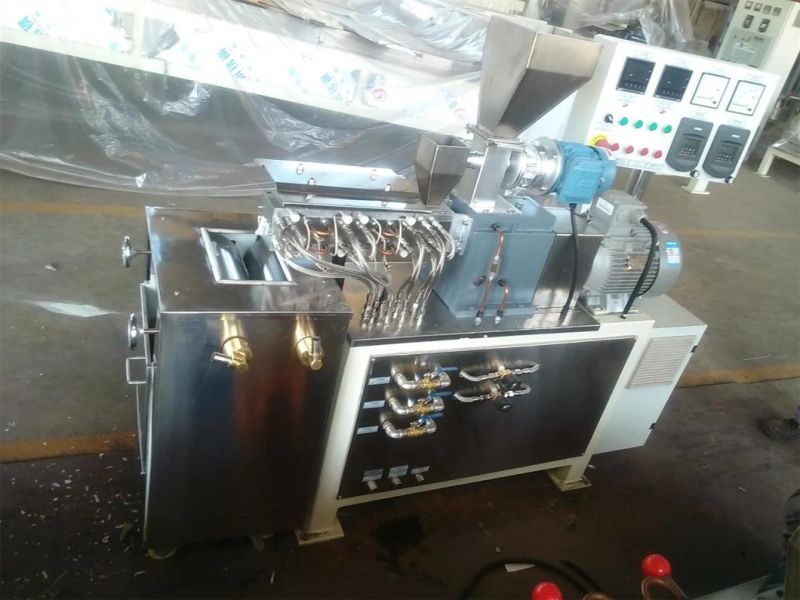

Technical Parameters (Lab Type):


Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-20	0.2-10	22	16D	0-600	2.2-4	0.1	2	1600*300*850
SLJ-30	1-30	30	16D	0-500	3-5.5	0.18	3.2	1430*550*1300
SLJ-32	40-80	32	16D	0-500	7.5/11	0.25	3.2	1600*500*1500

Company:

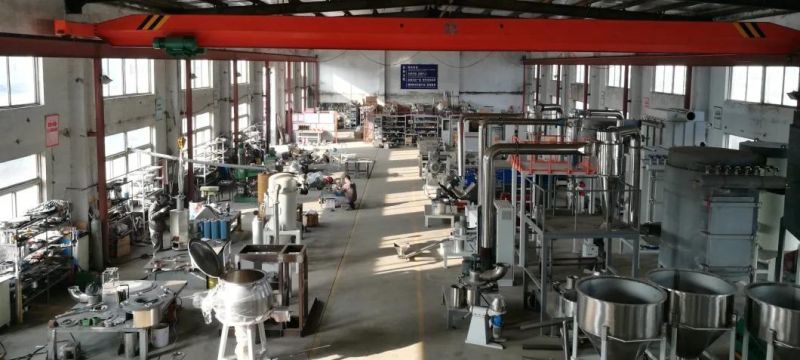

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistant quality, effective communication, responsible service.

High torque & High Speed Rotation Twin-Screw Extruder:

1. Main Features:

*Full Gearbox from professional OEM maker, low noise, durable longevity
*High screw speed, high shearing, quick discharge
*Independent lube oil cooling system design
*Torque limiter to protect the drive train
*Suitable for reclaim powder, special powder production
*Split design of barrel and liner inserts for easy cleaning and maintenance
*Top & Side feeding options
*Other features same as conventional type extruder
2. Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length (mm)	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-40	80-260	40	16D	0-800	11/15/18.5	0.55	8	1850*700*1750
TSX-52	150-450	52	16D	0-800	22/30/37	0.75	10	2700*900*2200
TSX-65	400-1000	65	16D	0-800	45/55/75	1.1	12	2900*1000*2400
TSX-75	800-1200	75	16D	0-800	75/90	1.5	16	3100*1200*2500
TSX-85	1200-1800	85	16D	0-800	90/110	2.2	20	3700*1500*2900

3. Conventional Type Co-Rotation Parallel Twin Screw Extruder

4. Features:

*Strong shearing, easy cleaning
*Accurate auto temperature control, high cooling & heating exchagne
*Hinged clamshell type barrel opening, segmented liners for easy replacing and cost saving
*Feeder easy assembly & disassembly, inner structure to avoid agglomeration
*Configurable screw applied for different powder formulas
*Screw and barrel adopt special materials like Cr12MoV, CPM, etc., high wearing resisting
*Quite gearbox with low noise dB level
*Torque limiter to protect the drive train
*Low energy consumption

5. Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
SLJ-40	80-220	40	16D	0-500	11/15/18.5	0.55	4	1800*600*1700
SLJ-50	150-300	50	16D	0-500	22/30	0.75	8	2600*700*2000
SLJ-55	300-400	55	16D	0-500	30/37	0.75	8	2700*900*2300
SLJ-60	400-600	60	16D	0-500	45	1.1	12	2750*1000*2350
SLJ-75	600-800	75	16D	0-500	55	1.5	12	2900*1100*2400
SLJ-80	800-1200	80	16D	0-500	75/90	2.2	20	3700*800*2800

6. Technical Parameters (Lab Type):

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-20	0.2-10	22	16D	0-600	2.2-4	0.1	2	1600*300*850
SLJ-30	1-30	30	16D	0-500	3-5.5	0.18	3.2	1430*550*1300
SLJ-32	40-80	32	16D	0-500	7.5/11	0.25	3.2	1600*500*1500

7. Company:

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistant quality, effective communication, responsible service.

8. Why choosing us?

Our boss has worked in this industry for more than 13 years.
Our vice GM has worked in this industry for more than 20 years.
Our technical manager has worked in this industry for more than 7 years.
Our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.
