• Model NO.：ABLB65
• Application：Bottles, Jars, Jerry Cans, Gallons, Containers
• Station：Single Station or Double Station
• Die Head：Single Head or Double Head
• Max. Product Volume：5L
• Auto-Deflashing：with Auto-Deflashing
• Clamping System：Toggle Type Clamping System
• Mould：One Cavity or Two Cavity
• Suitable Material：HDPE,PP,PVC,PS,PETG,LDPE
• Sutiable：0~5L Bottle
• Made in：China
• Extrusion Motor Power：15kw
• Oil Pump Motor Power：5.5kw
• Extrusion Heating Power：12kw
• Head Heating Power：5.7kw
• Cooling Fan Power：0.42kw
• Transport Package：Film Packing
• Specification：ABLB65I
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：300~320 PCS,H

Basic Info.

Model NO. ABLB65 Application Bottles, Jars, Jerry Cans, Gallons, Containers Station Single Station or Double Station Die Head Single Head or Double Head Max. Product Volume 5L Auto-Deflashing with Auto-Deflashing Clamping System Toggle Type Clamping System Mould One Cavity or Two Cavity Suitable Material HDPE,PP,PVC,PS,PETG,LDPE Sutiable 0~5L Bottle Made in China Extrusion Motor Power 15kw Oil Pump Motor Power 5.5kw Extrusion Heating Power 12kw Head Heating Power 5.7kw Cooling Fan Power 0.42kw Transport Package Film Packing Specification ABLB65I Trademark DAWSON Origin Jiangsu Zhangjiagang HS Code 8477301000 Production Capacity 300~320 PCS/H

Product Description

 DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru...

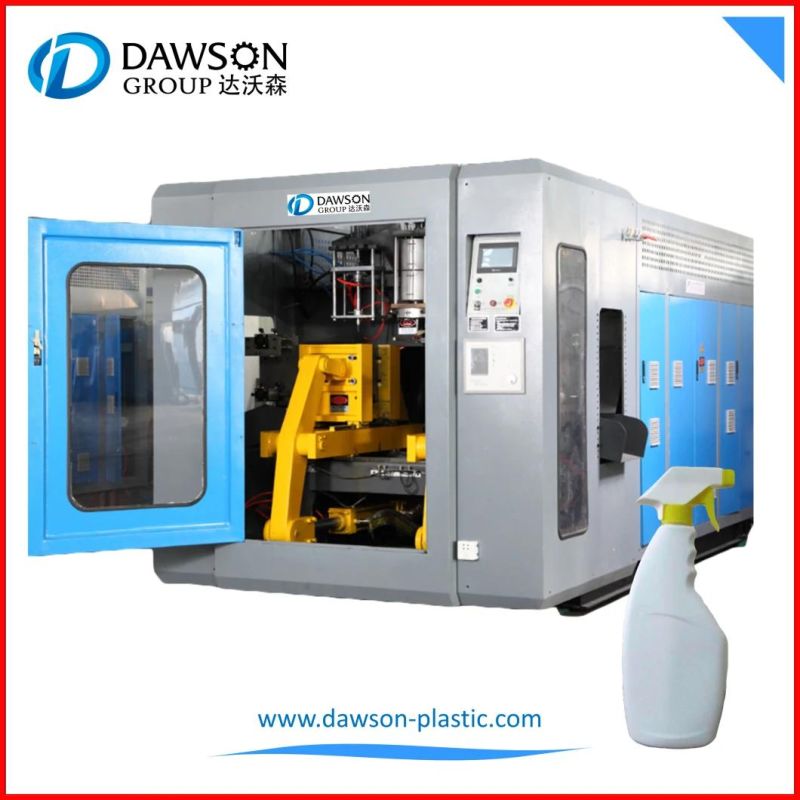

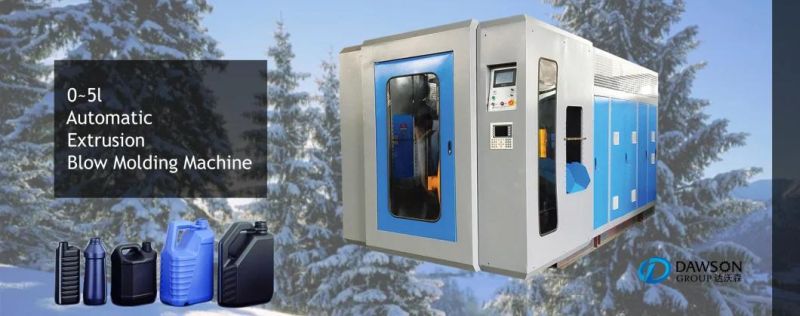

Automatic Extrusion Blow Molding Machine ABLB65I












Automatic Extrusion Blow Molding Machine ABLB65I

ABLB65I full-automatic bottle making machine is specially designed for plastic chemical bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over than 5Liters.

1. Suitable products
0~5L  HDPE, PP bottles
Applications: milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.

2. Station
This machine can be double station or single single station, depends on your output demands.

3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head.

Single die head   (2~5L)
Double die head (0~2L)


Changing the die head system takes around 1.5~3h, this also included heating time.

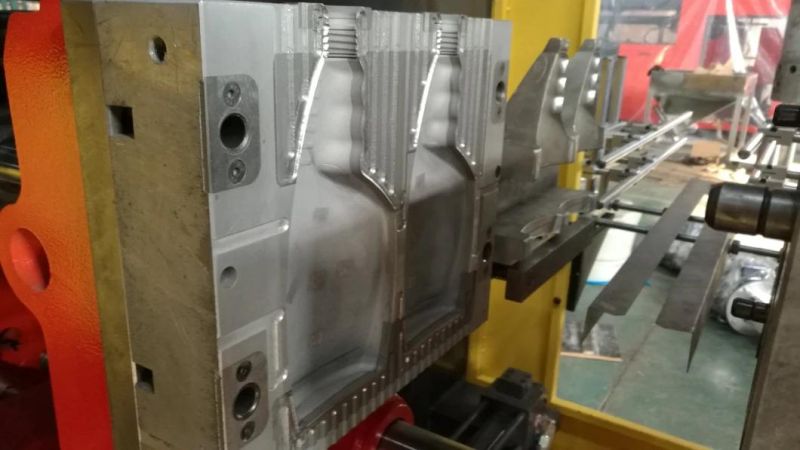

4.Mould - Aluminium 7075# inserted beryllium copper
the best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.

( we also provide S50c, P20, S136 material for you to choose, mould can be auto-deflashing or without auto-deflashing.)



5. MOOG 100 Point Parison control system is a program to change the parison thickness,As the plastic is extruded from the die head,the programming can:
1. Reduce the plastic used
2. Improved wall thickness distribution
3. Reduce cooling time


Do we have to use MOOG parison system?
No, We also have many customers they do not use MOOG parison control system, as on our machine's die head, we also can manually adjust the die gaps, from which it can also control the thickness and weight of bottles.
MOOG is more precision, and more easy to do the adjust. It also depends on your ending customer demands and markets.
But for some special designed blow molding items & accumulation type blow molding machines, MOOG is indispensable, it has to use MOOG.


 Our servo motor is using ITALY PHASE SERVO MOTOR.
Which is one of the best & most reliable servo system for hydraulic.

FEATURES
1. Energy Saving
Energy savings at least 40% greater than conventional fixed displacement pump systems (The energy-saving effect varies depending on the operation conditions.)
2. High Accuracy with Simple Operation
High-Accuracy servo control according to analog pressure (P) / flow rate (Q) voltage commands
3.Longer life for hydraulic units & O sealings
MOOG Servo motor due to its instant reaction speed, it does not require always running like traditional induction motor, so the hydraulic oil temperature is lower, which protect the hydraulic units and O-rings to use more longer life.4. Faster Shipping Adjustment
Simple adjustment to start a trial run on the machine, meaning a shorter adjustment time
5. Improving the Working Environment
Reduced noise during operation
6. Exceeds Standard of High Efficiency Motor regulation
Incorporating a motor dedicated to servo-based rotational speed control
Since no induction motor is used, the maximum discharge rate of the pump does not fluctuate depending on the power supply frequency, making it unnecessary to adjust the machines' maximum speed for each shipping destination.


Max. Product volume	5Liters
Out put capacities	150~180pcs/h
Screw diameter	65mm
Screw L/D ratio	24L/d
Screw drive power	18.5kw
Screw heating capacity	6kw
Heating zones	3zones
HDPE output	80kg/h
Oil pump drive power	7.5kw
Clamping force	65kn
Mold max size	148-568mm
Mold stroke	330*370mm
Max die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6m³/min
Cooling water pressure	0.3mpa
Water consumption	50L/min
Machine size	3.1*1.5*2.7m
Machine weight	5.5ton
