High Capacity Plastic Tape Extrusion Machine Sj-L Series
Zhejiang Sanlong Universal Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PP PE
- Screw Speed (R/Min：10-80
- Transport Package：in Wooden Cases
- Specification：ISO9001: 2008
- Trademark：Sanlong
Base Info
- Model NO.：SJ-L series
- Origin：Wenzhou, Zhejiang, China
- HS Code：8477800000
- Production Capacity：300kg,H
Description
Basic Info.
Model NO. SJ-L series Origin Wenzhou, Zhejiang, China HS Code 8477800000 Production Capacity 300kg/HProduct Description

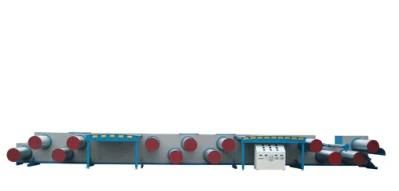

PP plastic tape extrusion machineFor making PP woven sack, PP woven bag;
Capacity: 200 - 300 kg/h;
| Model | Screw dia. (mm) | Screw L/D | Screw speed (r/min) | Die length (mm) | Drawing Speed (m/min) | Stretch Ratio | Main Motor (KW) | Drawing Machine Power (KW) | Heating Power (KW) | Thickness Of Plastic tape (mm) | Extrusion Capacity (Kg/h) |
| SJ-L145-24 | 145 | 1: 26 | 10-80 | 2400 | 15-120 | 4-7 | 55 | 11 | 120 | 0.03-0.10 | 200-245 |
| SJ-L145-25 | 145 | 1: 26 | 10-80 | 2500 | 15-120 | 4-7 | 55 | 11 | 130 | 0.03-0.10 | 200-245 |
| SJ-L155-26 | 155 | 1: 27 | 10-80 | 2600 | 15-120 | 4-7 | 55 | 15 | 140 | 0.03-0.10 | 210-270 |
| SJ-L155-28 | 155 | 1: 27 | 10-80 | 2800 | 15-120 | 4-7 | 75 | 15 | 165 | 0.03-0.10 | 220-285 |
| SJ-L160-30 | 160 | 1: 28 | 10-80 | 3000 | 15-120 | 4-7 | 75 | 15 | 175 | 0.03-0.10 | 230-300 |
