New Hot Sell MDF Embossing Machine
Qingdao Changyue Plastic Machinery Co., Ltd.- Plastic Processed：WPC
- Feeding Mode：One Feed
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Non Deep Screw
Base Info
- Model NO.：51
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Certification：ISO9001
- Transport Package：Film
- Specification：1.5*1*1.2m
- Trademark：HYD
- Origin：Shandong, China
Description
Basic Info.
Model NO. 51 Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Certification ISO9001 Transport Package Film Specification 1.5*1*1.2m Trademark HYD Origin Shandong, ChinaProduct Description
MDF WPC board embossing machineApplications of embossing machine

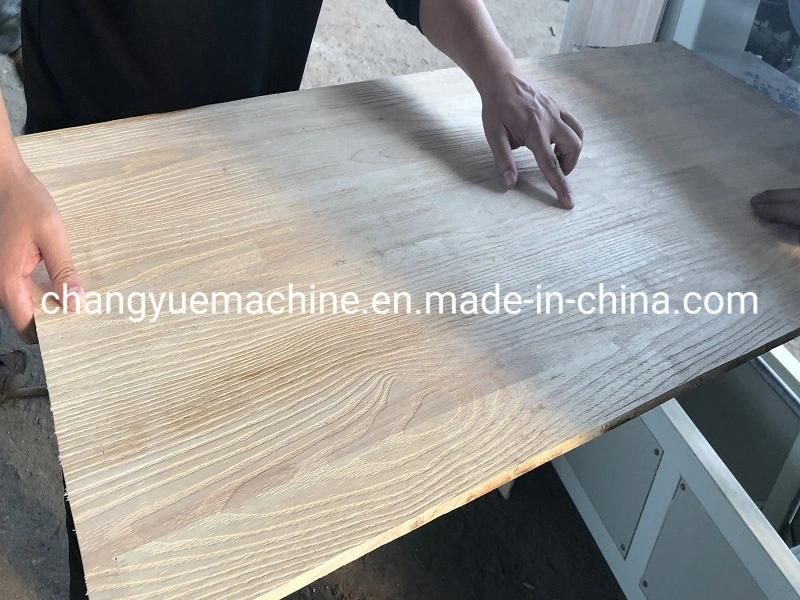

The machine is suitable for WPC profile, WPC panels,bamboo,composite panels,wood panels,foam board and MDF board and other outdoor,indoor decorative embossing plate,embossed by this machine, it obtained three-dimensional ,increase the beauty,improve product quality.WPC embossing machine is mainly used to press the veins on the surface of WPC products.It consists of convey rack,embossing rollers,hydraulic device,heating parts,digital meter and so on.
Main parameter of WPC embossing machine
| Item | Description | Unit | Parameter |
| 1 | embossing width | mm | 400-1300 |
| 2 | diameter of embossing roller | mm | 300 |
| 3 | embossing speed | m/min | 0-10 |
| 4 | working pressure | Mpa | 1-6 |
| 5 | motor power | kw | 4 |
| 6 | heating power | kw | 10 |
| 7 | dimensions | m | 1.2*1*1.7 |

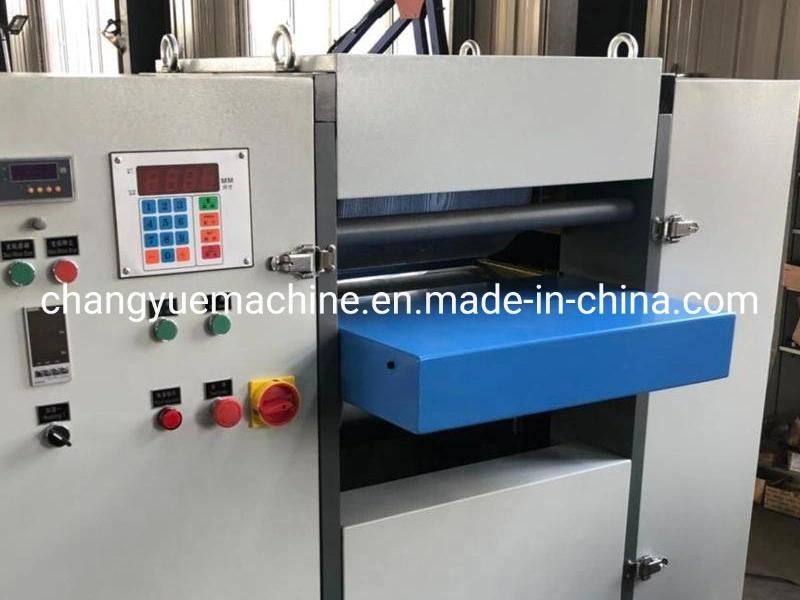

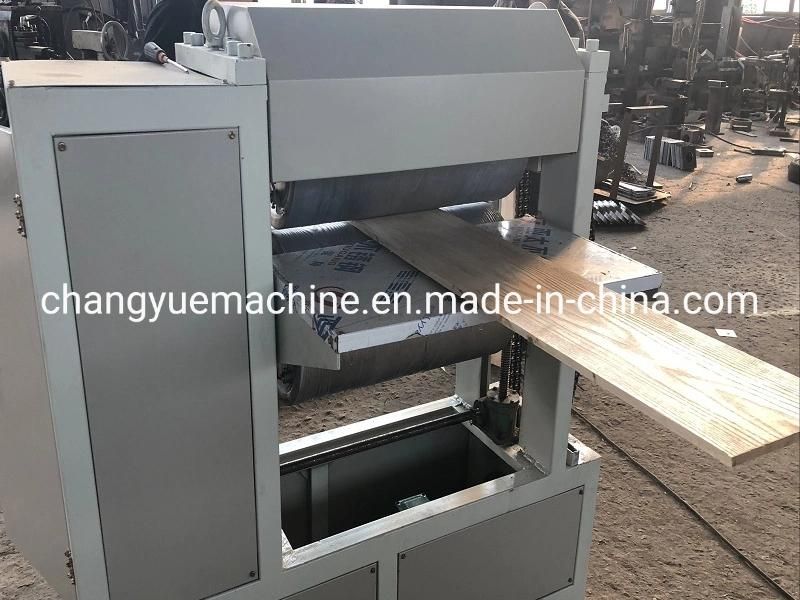

Machine details
Our customer&exhibition
Packing
