Single 5 Layer Extrusion Machine
Nantong Sunway Co., Ltd.- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：ISO9001:2008
- Customized：Customized
Base Info
- Condition：New
- Size：1100mmx800mmx1100mm
- Transport Package：Wooden Cases
- Specification：GMP
- Trademark：sunway
- Origin：Shanghai, China
- HS Code：8441801000
- Production Capacity：60 PCS,Min
Description
Overview
2, Dimension setting water case: Vacuum pump-Siemens
3, Traction part: To apply the belt traction and the power of the transducer is 0.75KW
4, Cutting part: The coder reads, PLC controlling service machine synchronically traces and cut the tube for setting length. Theservice engine is 0.75KW*2
5, Productivity: 6 meters/min.
6, Production specifications: Diameter: Φ 19mm-Φ 55mm Length: >50mm
Product Description
Main Technical Parameters

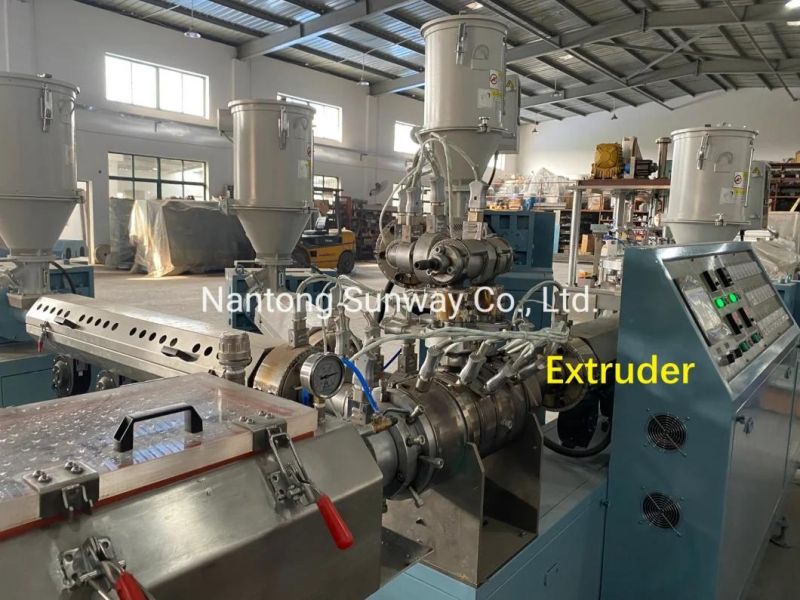

1, Extruding machine: Screw/cylinder 65, 30: 1 Body motor: 11Kw/8, transducer: 15KW Electric heater: Screw/cylinder 5Kw*4 Mould head: 3KW2, Dimension setting water case: Vacuum pump-Siemens

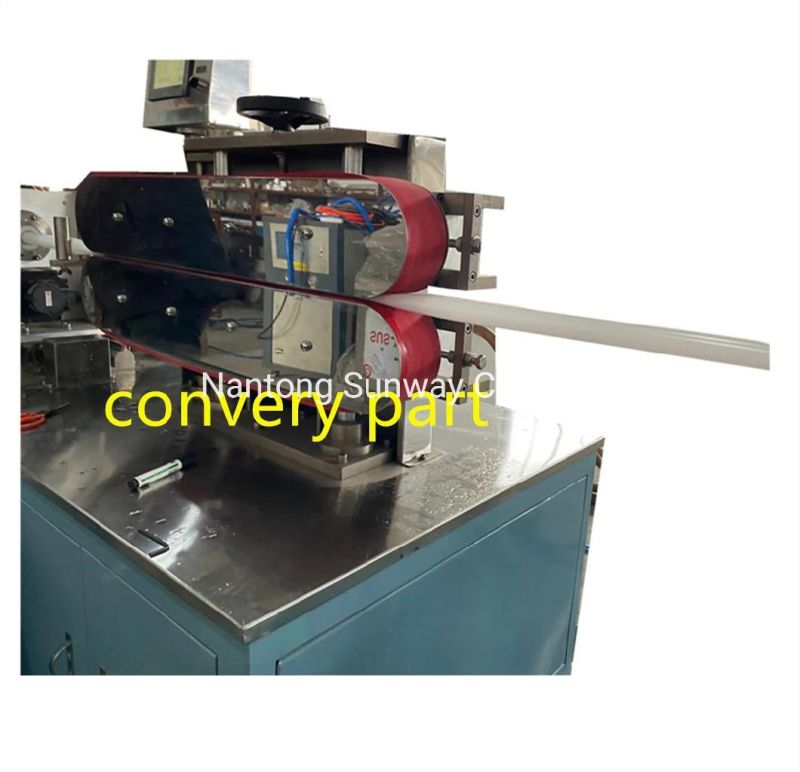

3, Traction part: To apply the belt traction and the power of the transducer is 0.75KW

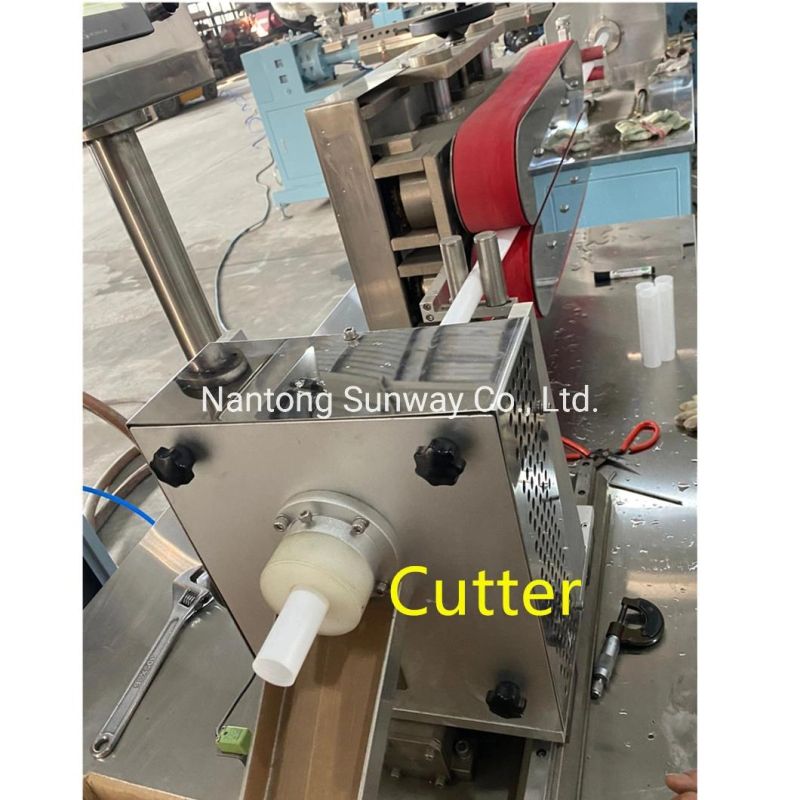

4, Cutting part: The coder reads, PLC controlling service machine synchronically traces and cut the tube for setting length. Theservice engine is 0.75KW*2
5, Productivity: 6 meters/min.
6, Production specifications: Diameter: Φ 19mm-Φ 55mm Length: >50mm
Detailed Photos

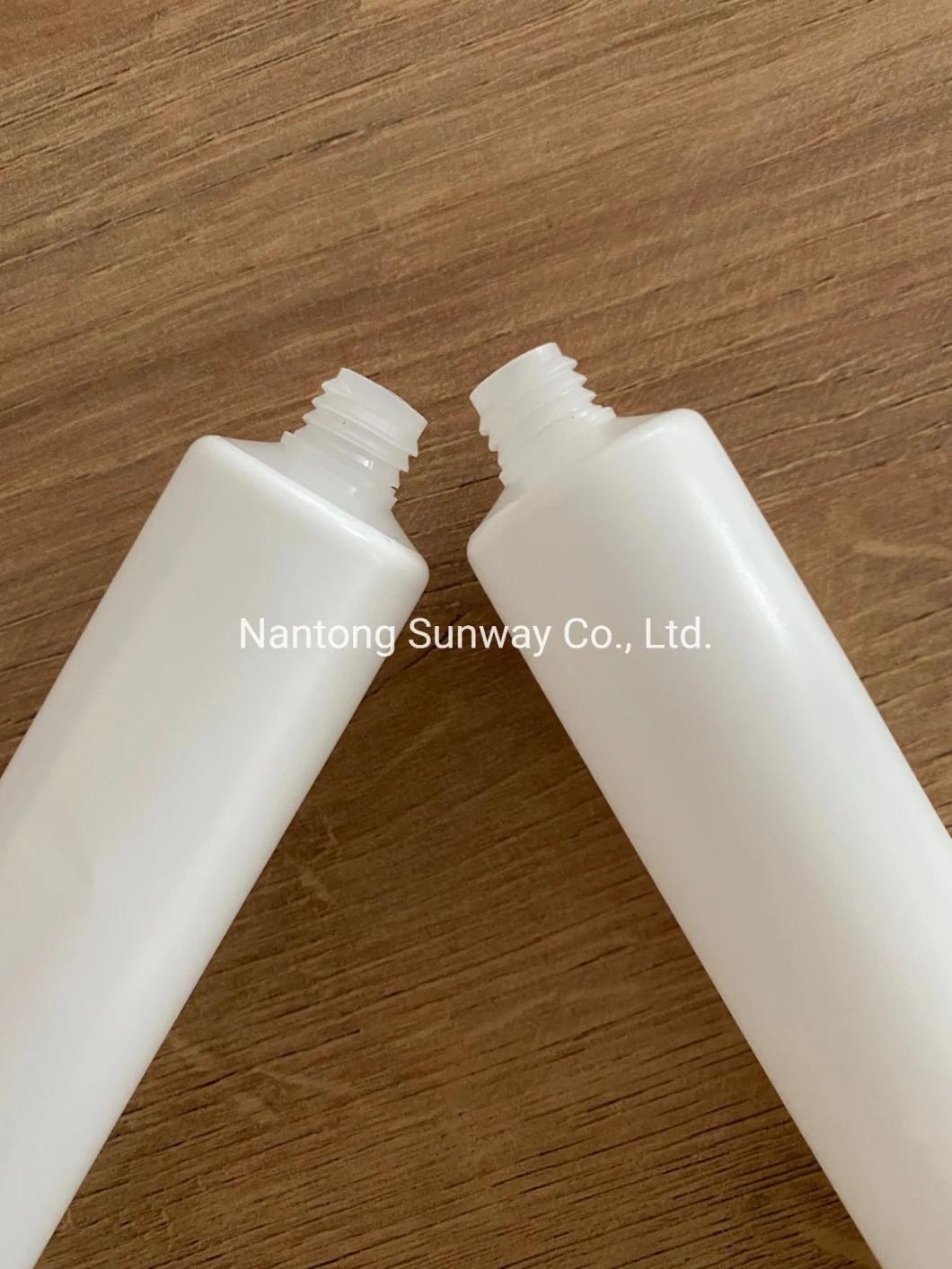

Finished Products
