• Condition：New
• Size：1100mmx800mmx1100mm
• Transport Package：Wooden Cases
• Specification：GMP
• Trademark：sunway
• Origin：Shanghai, China
• HS Code：8441801000
• Production Capacity：60 PCS,Min

Basic Info.

Condition New Size 1100mmx800mmx1100mm Transport Package Wooden Cases Specification GMP Trademark sunway Origin Shanghai, China HS Code 8441801000 Production Capacity 60 PCS/Min

Product Description

Main Technical Parameters

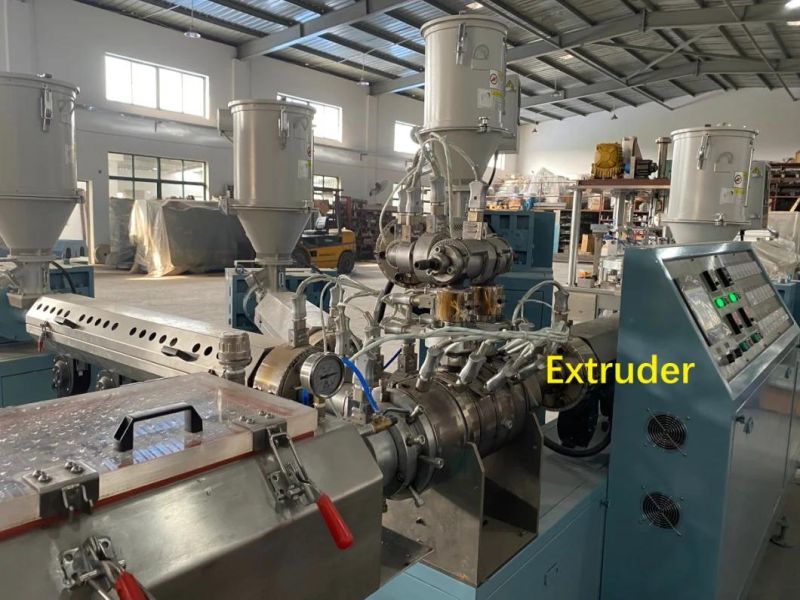

1, Extruding machine: Screw/cylinder 65, 30: 1 Body motor: 11Kw/8, transducer: 15KW Electric heater: Screw/cylinder 5Kw*4 Mould head: 3KW
2, Dimension setting water case: Vacuum pump-Siemens

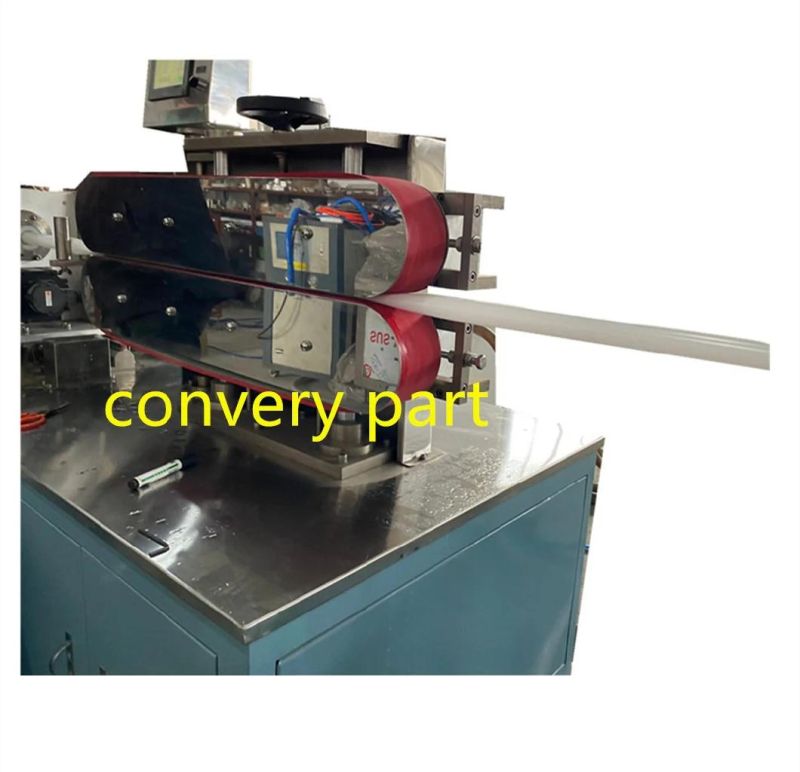

3, Traction part: To apply the belt traction and the power of the transducer is 0.75KW

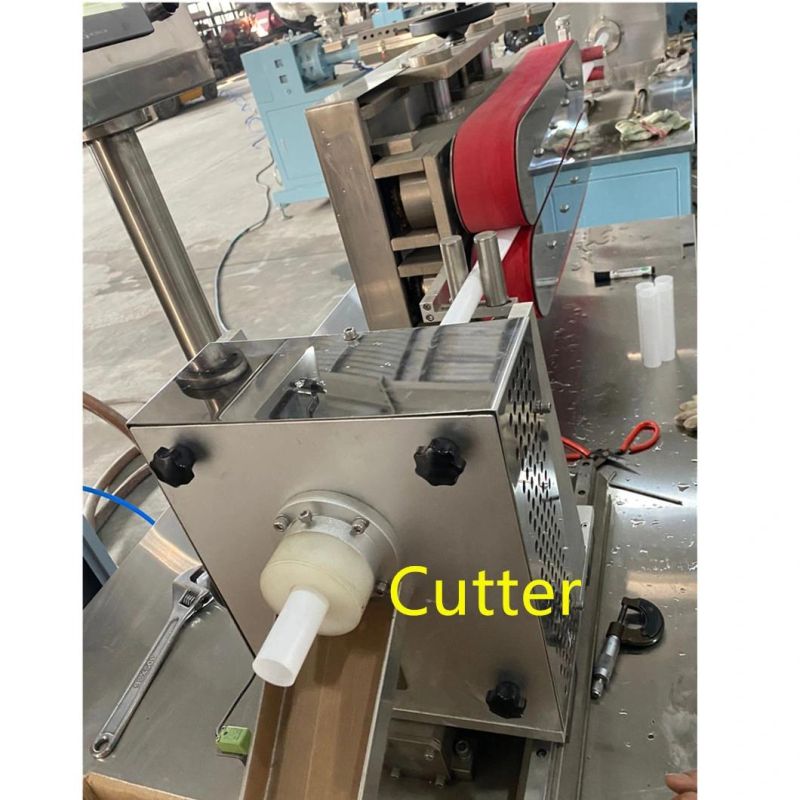

4, Cutting part: The coder reads, PLC controlling service machine synchronically traces and cut the tube for setting length. Theservice engine is 0.75KW*2
5, Productivity: 6 meters/min.
6, Production specifications: Diameter: Φ 19mm-Φ 55mm Length: >50mm
