Plastic Injection Molding Machine Hxyd700
Ningbo Beilun Highsun Machinery Co., Ltd.- Structure：Horizontal
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic & Mechanical
- Automation：Automatic
- Computerized：Computerized
Base Info
- Certification：CE, ISO9001:2008
- Energy Saving：Servo Energy Saving
- After Sales Service：Engineers Avaiable to Service Machine
- Voltage：According to Countries
- Showroom Locate：Malaysia,Russia,Turkey,Uzberkistan
- Condition：100% New
- Machine Weight：3.8 Ton
- Transport Package：Standard Packing
- Specification：4.46*1.25*1.93
- Trademark：HIGHSUN
- Origin：China
- HS Code：847710
- Production Capacity：7000sets,Year
Description

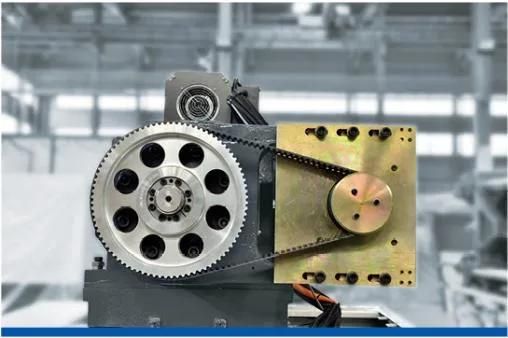

The injection unit uses ball screw and injection pressure sensor that are imported from Japan,which can precisely control various actions such as charging,injection,pressure maintaining and back pressure. It has the advantages of low noise, high response, high repeat precision and high service life. The repetition accuracy of injection position can reach 0.01mm.

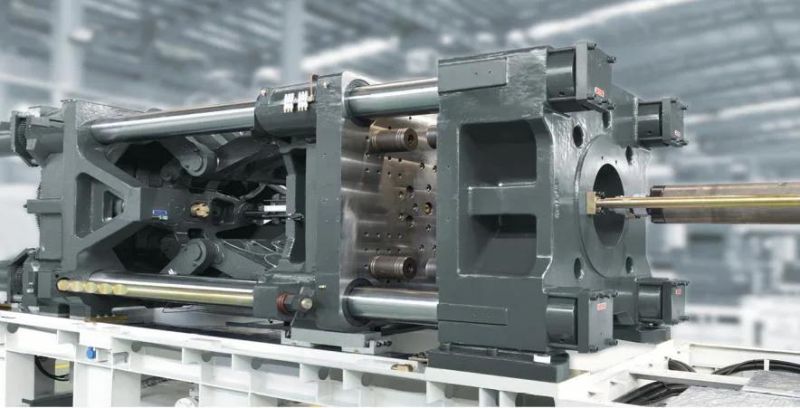

The platen optimized by finite element analysis has the characteristics of high rigidity and high strength.And the feet slip
structure of movable platen is new designed oblique-wedge.It increases the support area and makes the point forward.While
loading the mod. it can effectively keep the parallel precision of the mold-plate.
Adopt digital communication non-contact displacement sensor for mold open/clamp,which has feature of more fast and stable, higher accuracy of position measurement and higher precision of repetition.
4.

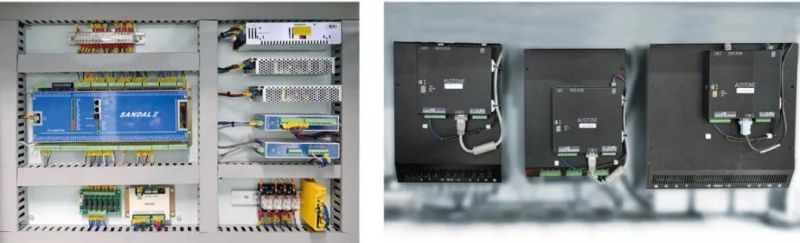

It adopts the scecial control system of electricity and oil hybnd machine and realizes tne dlosed-loop control and data sharing of the
computer controller, servo driver and servo motor by Ether CAT bus communication, The control system supports real-time energy
consumpticn monitonng and single product energy consumption measurement, providing customers with accurate cost calculation.
