• Customized：Customized
• Raw Material：Wood and Plastic
• Layers：Double Layer
• Profile Size：Customized
• Transport Package：Wooden Pallet , PE Film
• Specification：International Standard
• Trademark：Chenxing
• Origin：China
• HS Code：84778000
• Production Capacity：500sets,Year

Basic Info.

Customized Customized Raw Material Wood and Plastic Layers Double Layer Profile Size Customized Transport Package Wooden Pallet / PE Film Specification International Standard Trademark Chenxing Origin China HS Code 84778000 Production Capacity 500sets/Year

Product Description

Application:
This Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi - holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

General information:
1. Capacity of main frame can be optionally chosen from 60-700 kgs/hour.

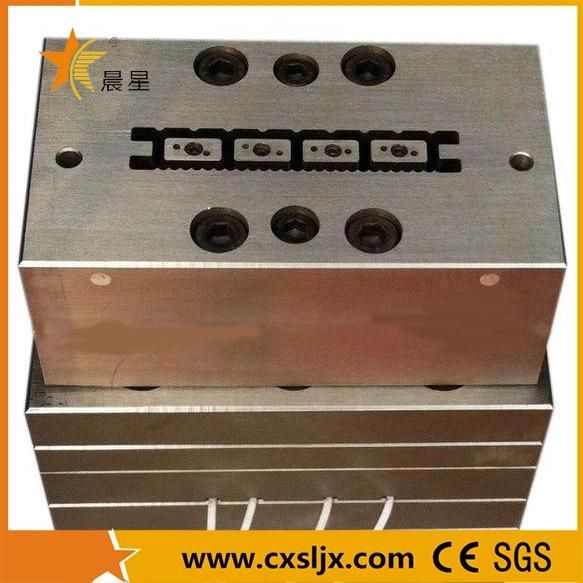

2. With different molds, it can products different kinds of profiles.

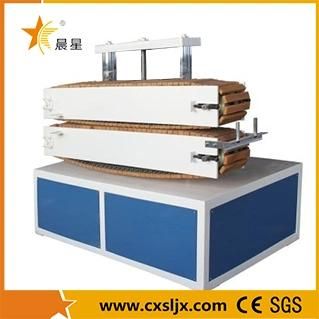

3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.

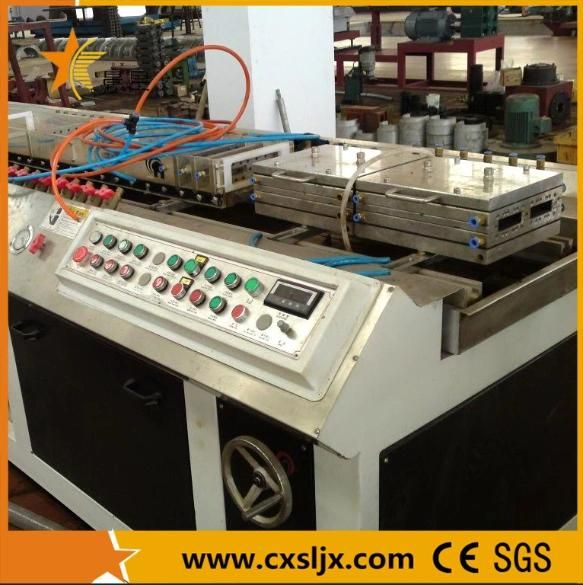

4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.

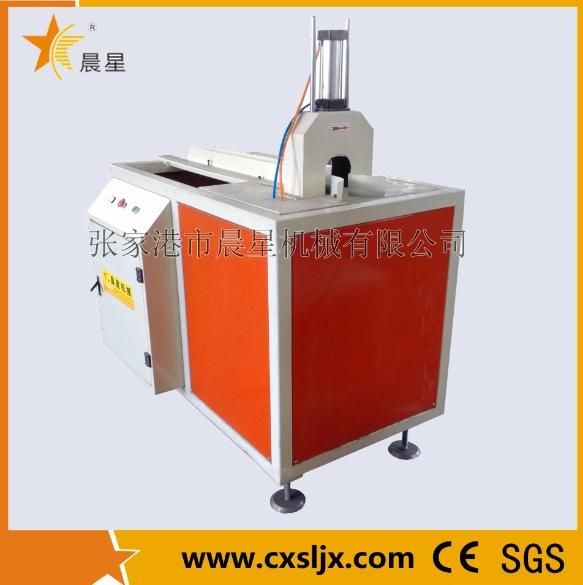

5. Movement speed and drawing speed of cutting machine keep synchronous.
6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7. Powder & dust suction device can be provided.

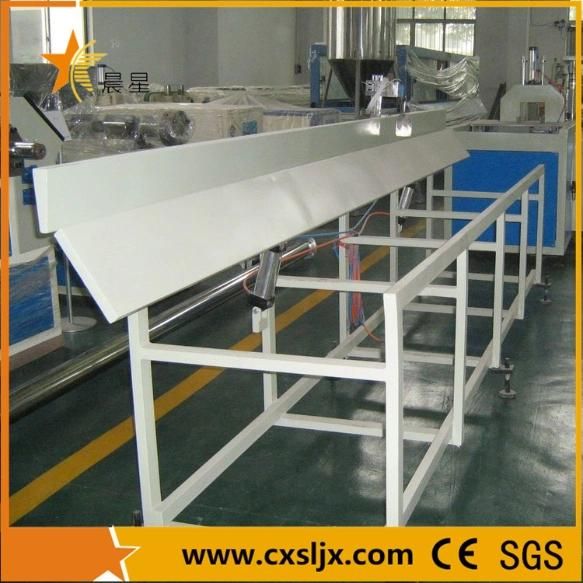

8. The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.

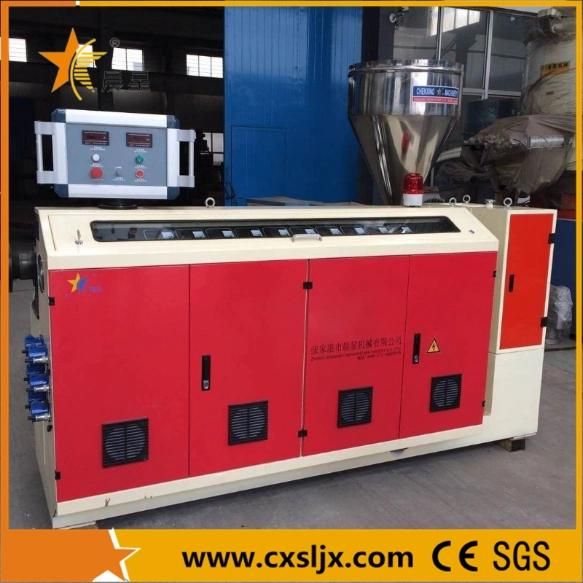

9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.


Main technical parameters:
(These parameters are all for reference. For more details, don' t hesitate to contact me by clicking below. )

Model	YF180	YF240	YF300	YF400	YF500	YF600
Max. Width of product(mm)	180	240	300	400	500	600
Extruder model	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJSZ80/156
Max. Extrusion capacity (kg/h)	150	250	250	250	350	350
Extruder power	22	30/37	30/37	30/37	55	55
Cooling water(M3/H)	5	7	7	8	10	12

Picture for Reference:
