• Model NO.：HSD
• Customized：Customized
• Condition：New
• Sheet Width：300-2000mm
• Thickness：0.2-45mm
• Color：by Buyer′s Request
• Extrusion System：Mono-Layer or Multi-Layer
• Raw Material：PE, PP
• Transport Package：Wooden Cases and Pallets
• Specification：CE, ISO9001: 2008, SGS
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：20 Sets

Basic Info.

Model NO. HSD Customized Customized Condition New Sheet Width 300-2000mm Thickness 0.2-45mm Color by Buyer′s Request Extrusion System Mono-Layer or Multi-Layer Raw Material PE/ PP Transport Package Wooden Cases and Pallets Specification CE, ISO9001: 2008, SGS Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 20 Sets

Product Description

HDPE Sheet Extrusion Line PE Film Extruder

Brief introduction: the plastic sheet production line is a high-efficiency and energy-saving unit independently developed by our company. It has the advantages of low energy consumption, high output and easy operation. It can produce various specifications of plastic sheet.


Our company can provide large single screw extruders with the maximum diameter of 200 mm. The sheet width is customized according to customers' requirements, and the thickness ranges from 1 mm to 35 mm.

Structure of Machine:

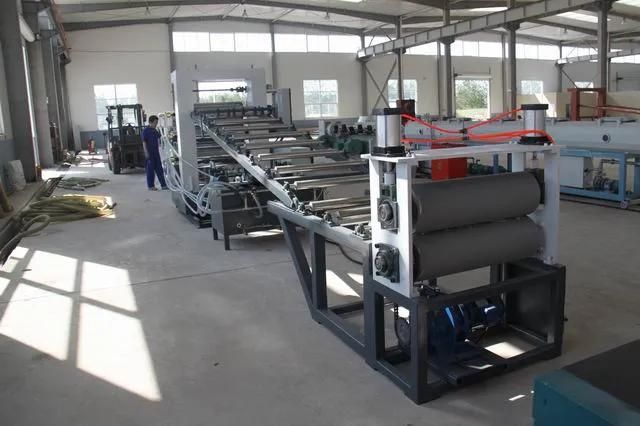

The machinery unit consists of extruder, Screen changing device, melt pump, T-die, 3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.
Others, The working principle is the 3 states of the hot-plastics at different temperatures: The pushing force of the screw change the physical state from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.

PE / PP high efficiency single screw extruder is adopted, the forced water cooling feeding section is adopted in the extrusion part, the barrel is slotted, the power consumption of the main driving motor is greatly reduced; the screw with large length diameter ratio has strong adaptability to materials and excellent plasticizing effect.
Extruder die: hanger type runner structure, nitriding polishing treatment, special design, thickness adjustment, simple and accurate operation.

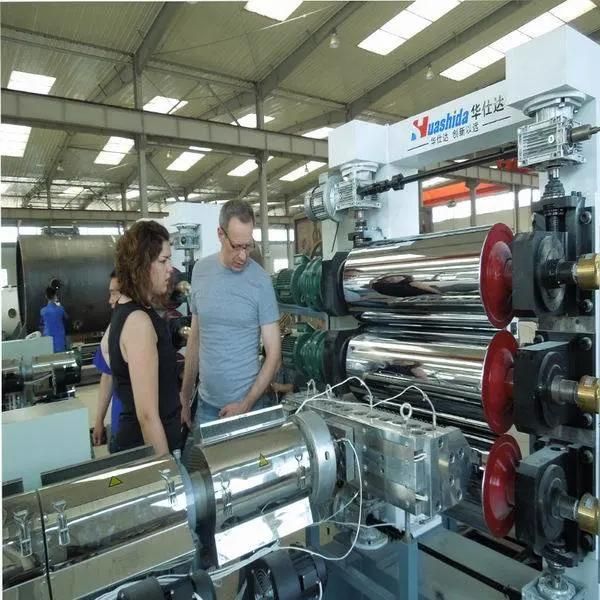

Three roller calender: according to the different width, it adopts vertical and vertical inclined structure, and the specially designed inner flow channel structure of the roller ensures the accurate temperature control of the roller and the surface brightness of the plastic sheet; the high-precision mirror roller ensures that the thickness of the plastic sheet can keep a small error in a wide range; the surface layer is plated with hard chromium, with high strength and long service life, and the accurate mold temperature control system can provide high quality Plastic sheet production provides high quality assurance.

More customized production - antiskid / pattern / art board sheet production line

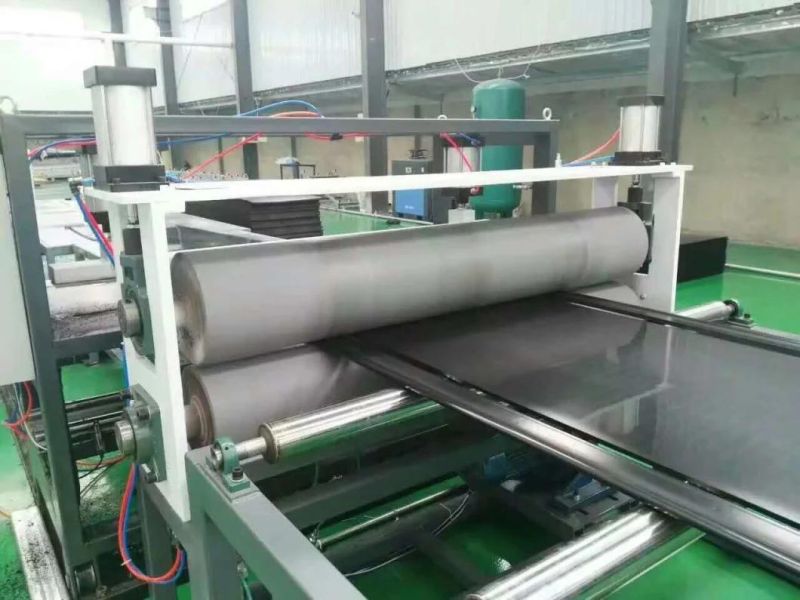

Cooling bracket: aluminum magnesium alloy cooling roller, ensure long service life

PLC control system, intelligent centralized control.




(Modle)	(width)	Thickness(MM)	Seedtm/min)	Outputr(kg/h)
SBJZ-800	650	0.18-1.5	1-25	80-320
SBJZ -1000	800	0.2-2.0	1-20	150-430
SBJZ -1500	1350	1-10	0.5-10	150-450
SBJZ -2000	1850	2-15	0.5-8	300-550
SBJZ -2200	2000	1-10	0.4-3	420-820
SBJZ -3000	2850	2-8	0.2-3	500-1200
SBJZ -7000	6800	2-6	0.2-2	600-1560
