• Model NO.：1-2
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Voltage：380V 50Hz 3phase(Customized)
• Extrusion Capacity：350kg,H
• Certification：Ce ISO9001
• Line Speed：120m,Min
• PP Belt Width(mm)：9-19mm
• Deviation of Width (mm)：0.45mm
• PP Strap Band Thickness：0.6-13mm
• Deviation of Thickness (mm)：0.05mm
• Usage：Strap, Packing
• Service：Free Installing and Training
• Transport Package：Ply Wood
• Specification：48m*10m*6.5m
• Trademark：YZJ
• Origin：China
• HS Code：8477800000
• Production Capacity：5sets,Month

         Items

We

others

Equipment applicable raw materials

New, pellets, 100% PET bottles flakes, can also be added waste tape (viscosity 0.75 or above)

PET bottle flakes material (raw material size: 10 -16 mm)

Max.capacity

210kg/h

170-200kg/h

Energy consumption

16008:400KWh/T

16008:400-500KWh/T

Screw material

38CrMoAIA

38CrMoAIA

     Embossing roller material

φ156×170 (SKD-11)

φ155.5×100(SKD-11)

Cooling tank material

stainless steel(304)

stainless steel

Main production parameters of equipment

Width deviation(mm)

<±0.45

<±0.5

Thickness deviation(mm)

<±0.05

<±0.06

Fracture tension range(kN)

16008≥450KN;

16008≥400KN

2m deflection(mm)

<80mm

<100mm

Equipment size (L×W×H)

I shape :38*6*6.5(m)

L shape :34*8*6.5(m)

U shape:28*8*6.5(m)

45*3*7(m)

Equipment Weight

15-20T

10-15T

Exported countries

More than 20 countries including America, Japan, Vietnam, Saudi Arabia, Egypt, Jordan, Russia, Italy, Brazil, Argentina, etc

Mainly for domestic market

Technical strength

We not only produce strap making machine, but also use our own machine to produce strap to sell.  Accumolate more than 23 years experience, customer can totally copy our experiences on strap marketing, producing, to success fast

Only produce strap machine, lack of strap marketing and producing experiences

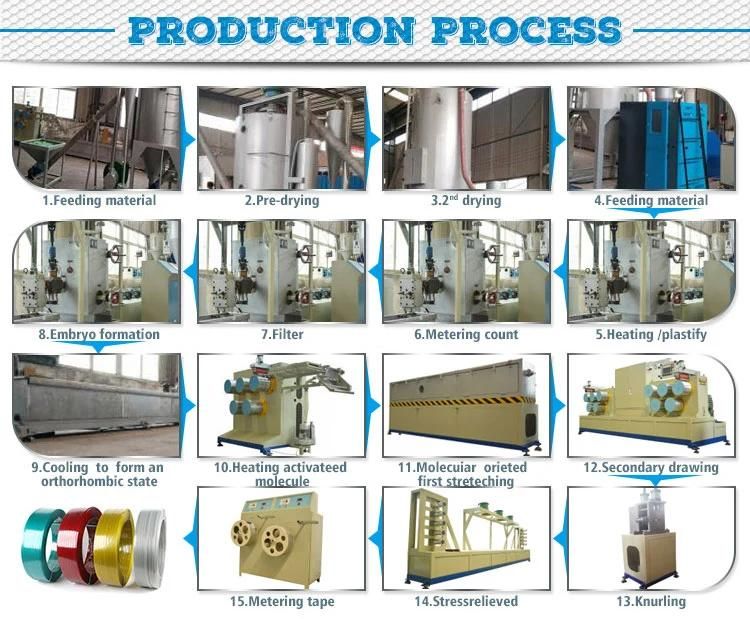

Technical Process of PET strap making machine:

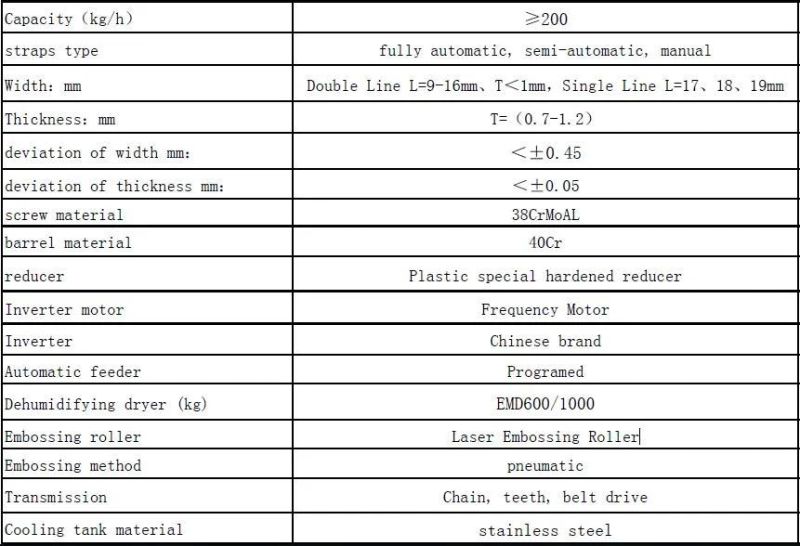

Specification of PET strap making machine:

Certification of PET strap making machine:

Packing & Delivery:

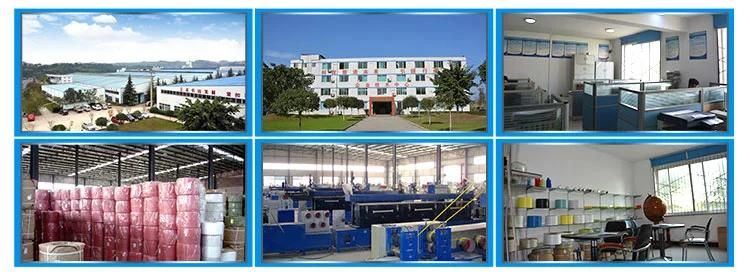

Company Information

Sichuan Union Technology Co., Ltd. is located in the beautiful scenery along the Tuojiang River in Ziyang, Sichuan,Acquisition of "YZJ" Machinery Manufacturing Resources and Technology for more than 20 yearsThrough unremitting exploration and rapid development,Mainly involved in plastic packaging belt production equipment, waste plastic recycling equipment and plastic products and other fields,She is a "plastic machinery as the main, plastic products, theory and practice combined", research and development, production, sales in one of the scientific and technological companies.The company has research and development department, technical department, trade department, production department, property control department, finance department and so on.

The headquarter of the company consists of provincial enterprise technology center, quality center, production center, assistant engineer of the company and senior engineer personnel. The proportion of undergraduate degree and above is 62.8%.

Company size in the domestic peer enterprises in the forefront, the company covers an area of nearly 70000 square meters. Mainly involved in plastic machinery, plastic products, industrial parks, international trade, renewable resources and other fields, the annual output value of hundreds of millions of yuan, is a "plastic machinery and plastic products series as the leading," set research, production, Integrated Plastics Co., Ltd.
Contact me:

After-sales service:
1. Advanced and outstanding product will be determined more by continuously improved technique support and service. Our service covers all the sales process: before, during and after sales.
2. To meet your satisfaction and to guide you to advance, we have established unanimous customer service awareness and measurable customer service standard.etc.
3. Quickly After-sales service  respond: respond within 12 hours for domestic customer, 20 hours for overseas customer.
