304 Stainless PP PE Plastic Shredder /Waste Tyre Recycling Machine Equipment Tire Shredder ...
Zhangjiagang Boxin Machinery Co., Ltd.- Type：Powerful Plastic shredders
- Raw Material：PE
- Structure：Tangential Feed
- Knife Classification：Claw Knife Crusher
- Knife Roll：Solid Knife Roller
- Automation：Automatic
Base Info
- Model NO.：BOXIN
- Computerized：Computerized
- Certification：CE, ISO9001:2008, QS, UL, GMP
- Plastic Type：PP,PE,Pet,Film
- Production Capacity (Kg/H)：400 - 700 Kg,H
- Max Production Capacity：10000
- Application：Recycled Industry
- Function：Plastic Rcycling
- Power：22-90kw
- Used for：Waste Shredding
- Voltage：380V,50Hz
- Shaft Design：Double
- Warranty：1 Year
- Control Type：PLC
- Power Source：Electric
- Motor：Famous Brand Siemens
- Waste Tire Production Line：OTR, Big Truck Tire, Car Tire, etc
- Control：PLC and Computerized
- Transport Package：Plastic Film
- Specification：4000*1800*3800mm
- Trademark：BOXIN
- Origin：Jiangsu China
- HS Code：8477800000
- Production Capacity：400-10000kg,H
Description
Product Description
This shredder have been designed for a wide array of applications and industries, suitable for shredding different plastic film and solid material such as car tire,truck tire, e-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc.Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction.It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.
Main technical parameters of double shaft crusher:
| Model | GL280/600 | GL370/800 | GL370/1000 | GL450/1200 | GL450/1600 |
| motor | 22kw | 37kw | 45/55kw | 75/90kw | 55/55kw |
| Blade size | 280*30 | 370*30 | 370*30 | 450*30 | 450*50 |
| Blade quantity | 20 | 16 | 20 | 24 | 32 |
| Inlet size | 600*600 | 800*800 | 1000*800 | 1200*1000 | 1600*1000 |
| Overall size | 2200*1200*1800 | 2500*1300*2000 | 2800*1300*2000 | 3200*1400*2400 | 3300*1500*2500 |

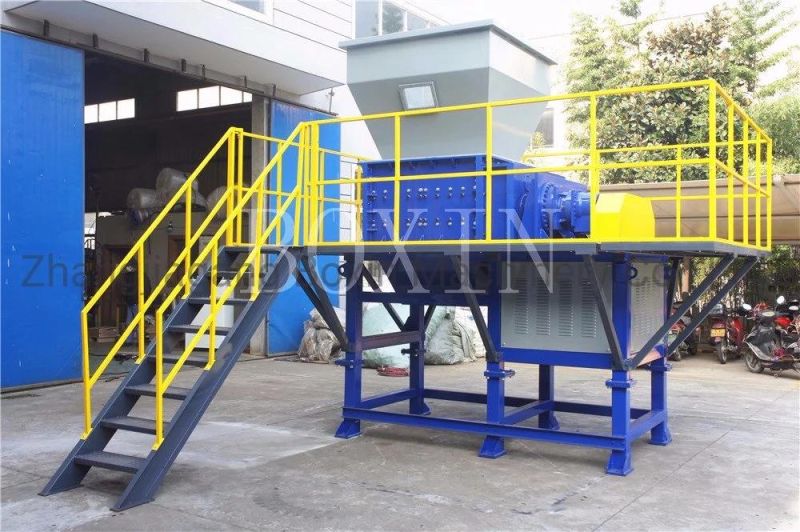

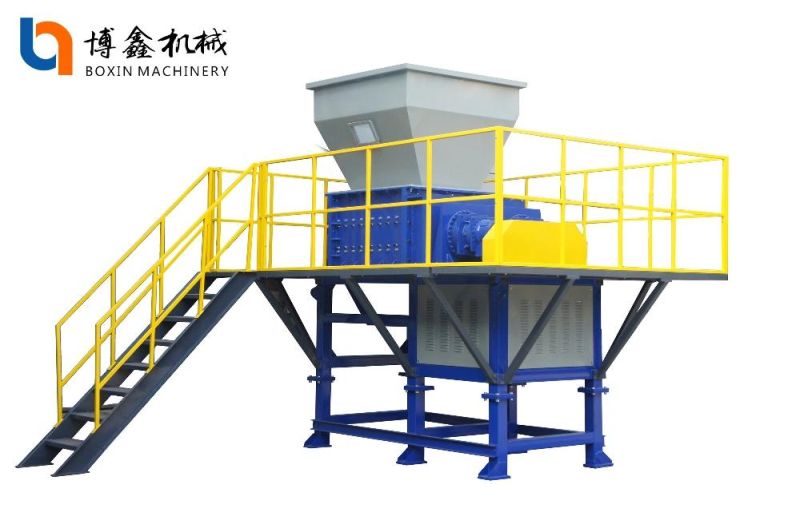

Pictures of double shaft crusher:
Packaging & Shipping
1.For the loose cargo the machine will be packed by wooden box .
2.For the full container loading the machine will be packed by wooden pallet and film scraping .The electrical control panel will be always packed by wooden box .
Our Services
1,We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
Company Information
Zhangjiagang Boxin Machinery Co.,Ltd is a leading supplier of complete waste plastic recycling systems.We are specialized in producing PET bottle recycling ,PP,PE film recycling,series crushers,shredders and ect.Since we are established in 2005 we are pursuing to development and manufacture outstanding quality of waste plastic recycling equipement through excellent manufacture and quality inspection processes time and again.
Up to today, our machines and service are supplied in more than 30 countries all over the world.We are sincerely to cooperate with you in the future!
