• Model NO.：ABLD150

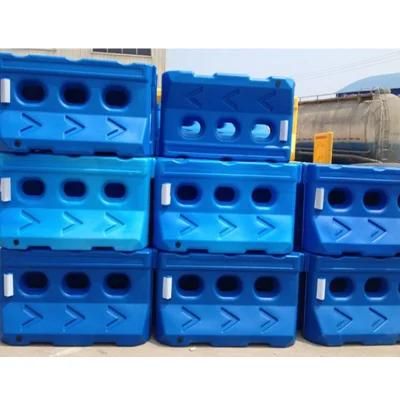

• Application：Drum, Plate, Float, Roadblocks, Medical Bed Board
• Max. Product Volume：250L
• Screw Diameter：120*2 mm
• L/D Ratio：33
• Drive Motor：132*2 Kw
• Heating Zone with Cooling Fan：6*2 Zone
• Output/Capacity：620~840 Kg,Hr(HDPE Particle)
• Heating Capacity：36*2 Kw
• Platen Size：1800X2120
• Length of Mold：1730-2200mm
• Clamping Force：1800kn
• Close/Open Stroke：1000-2700mm
• Clamping Stroke Measurement：Transducer Italy Gefran
• Hydraulic Valve：Taiwan Hitech
• Programmer：Japan Moog
• Transport Package：Film Packaging
• Specification：ABLD150
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：as Per Samples

extruder1Screw diameter120*2 mm2L/D ratio333Drive motor132*2 Kw4Heating zone with cooling fan6*2 zone5Output/Capacity620~840 Kg/hr(HDPE  particle)6Heating capacity36*2 kwAccumulator  Head1Accumulator capacity70L2DesignFirst in and first out3Heating zone6 zone4Heating capacity64 kw5Max die&pin diameter1000mm6Accumulator push-out stroke measurementTransducer  Italy Gefran7Extruder stopHaveCLAMPING UNIT1Platen size1800X21202Length of mold1730-2200mm3Clamping force1800KN4Close/Open stroke1000-2700mm5Clamping stroke measurementTransducer  Italy Gefran6Hydraulic valveTaiwan HitechPARISON CONTROL1ProgrammerJAPAN MOOG2Servo valve
MOOG
 3Servo cylinderIntergret of die head4Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps
