New Technology PE/LLDPE/PP/Plastic Extrusion Machine (CE/ISO9001)

Qingdao Create Trust Industry Co., Ltd.
  • Raw Material:PE
  • Screw:Single-Screw
  • Inverter:Inverter
  • Electromagnetic Heater:Electromagnetic Heater
  • Automation:Automatic
  • Computerized:Computerized

Base Info

  • Model NO.:CX230
  • Customized:Customized
  • Certification:CE, ISO9001:2008, QS, UL, GMP
  • Condition:New
  • Main Formula:Calcium Carnonate,PE.Llpe LDPE.
  • Products:Masterbatch Granules
  • Control System:Center Control by PLC System
  • Capacity:From 500kg,H to 1500kg,H
  • Transport Package:Woodend Box
  • Specification:CE,ISO9001
  • Trademark:CX
  • Origin:China
  • HS Code:847780000
  • Production Capacity:100 Sets,Month

Description

Basic Info.

Model NO. CX230 Customized Customized Certification CE, ISO9001:2008, QS, UL, GMP Condition New Main Formula Calcium Carnonate,PE.Llpe LDPE. Products Masterbatch Granules Control System Center Control by PLC System Capacity From 500kg/H to 1500kg/H Transport Package Woodend Box Specification CE/ISO9001 Trademark CX Origin China HS Code 847780000 Production Capacity 100 Sets/Month

Product Description

Name:  Plastic extrusion machine, Plastic extruding machine,Plastic extruder,Plastic pelletizing machine,Plastic masterbatch production.

Model : CX230

Usage: this line machine is maily designed for masterbatch production. such like PP,PE,LLDPE/LDPE/HDPE,PVC ect. also can produce black masterbatch too.

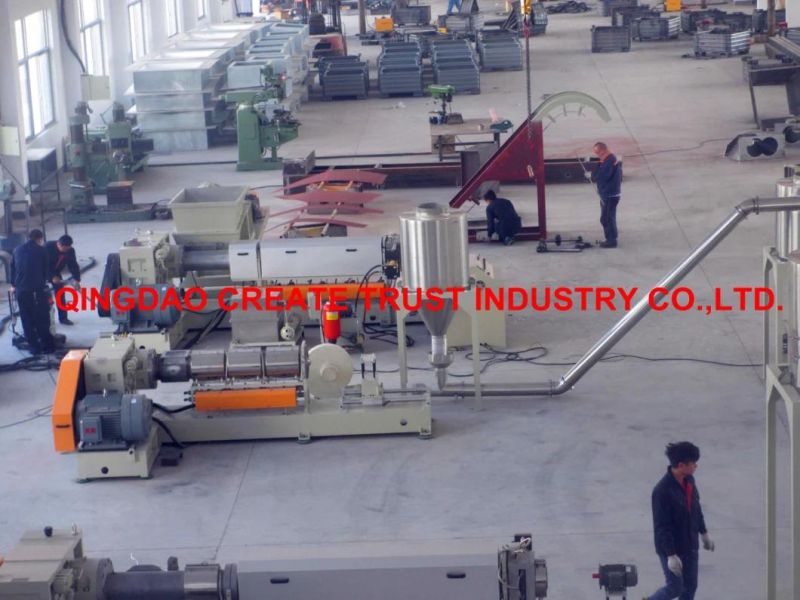

Consist of machinesd: Plastic kneader (banbury mixer),force feeding machine,extruder,cutting machine ,cooling machine ect.

Details instruction below :

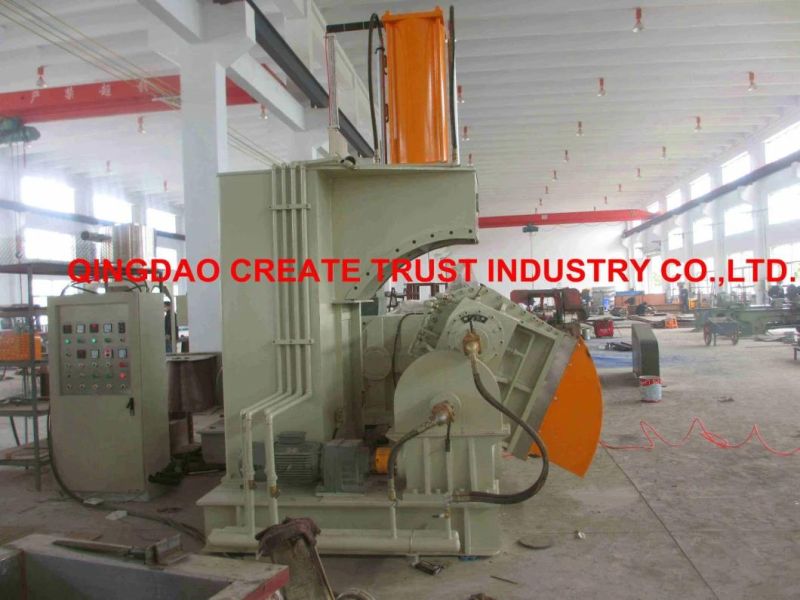

1- Plasic kneader (banbury mixer) :  Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.

The reducer are hardened gear teeth,no noise,longlife us .

New Technology PE/LLDPE/PP/Plastic Extrusion Machine (CE/ISO9001)

2- Force feeding device :
 INVT frequency converter.
Double screw for material feeding,
Contaction with single screw is Harvard structure

New Technology PE/LLDPE/PP/Plastic Extrusion Machine (CE/ISO9001)

3- The  extruder is the highest technology design now in this area :

Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Cooling by water .

Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover .  Heating of barrel is made by Cast aluminum heater.
New Technology PE/LLDPE/PP/Plastic Extrusion Machine (CE/ISO9001)

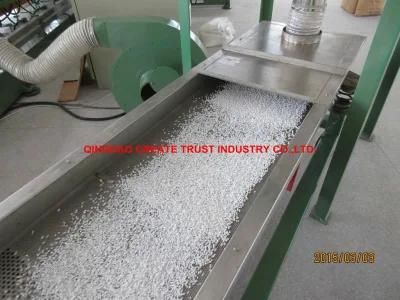

4- Air cooling mould surface hot cutting pelletizer.


All material for water bank,pump and pipes are made by stainless steel. Pipes with cover to protect and easy maintaince


Hydraulic screen changer : fixed between the barrel and head,which can strainer the impurity during working, sametime each exchanged and clean.

The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.

5- The electric parts we used is DELIXI brand,contactor is from SIMENS.



Service :

We will provide good aftersale service,and help install machines in your factory, help test the products till get correct for you .
