Hot Sale Masterbatch Pelletizing Machine/Masterbach Pelletizer Machine/Masterbatch ...Qingdao Create Trust Industry Co., Ltd.
- Raw Material：PE
- Electromagnetic Heater：Electromagnetic Heater
- Model NO.：CX-150E
- Certification：CE, ISO9001:2008, QS, UL, GMP
- Products：Masterbatch Granules
- Control System：Center Control by PLC System
- Capacity：From 500kg,H to 1500kg,H
- Testing of Machine：We Will Use Your Material to Test Working
- Service：We Provide Both Machine and Formula
- Transport Package：Woodend Box
- HS Code：847780000
- Production Capacity：100 Sets,Month
Basic Info.Model NO. CX-150E Customized Customized Certification CE, ISO9001:2008, QS, UL, GMP Condition New Products Masterbatch Granules Control System Center Control by PLC System Capacity From 500kg/H to 1500kg/H Testing of Machine We Will Use Your Material to Test Working Service We Provide Both Machine and Formula Transport Package Woodend Box Specification CE/ISO9001 Trademark CX Origin China HS Code 847780000 Production Capacity 100 Sets/Month
Product DescriptionName: Materbatch pellelizing machine,masterbatch pellelizer machine,masterbatch pellelization machine, masterbatch machine,masterbatch extruder,masterbatch extruding machine,masterbatch granulation machine,masterbatch granulating machine,masterbatch granulator machine.
Model : CX150E
Usage: this line machine is maily designed for masterbatch production. such like PP,PE,LLDPE/LDPE/HDPE ect. also can produce carbon black masterbatch too.
Consist of machinesd: rubber kneader (banbury mixer),force feeding machine,extruder,cutting machine ,cooling machine ect.
Details instruction below :
1- Rubber kneader (banbury mixer) : Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.
The reducer are hardened gear teeth,no noise,longlife us .
2- Force feeding device :
INVT frequency converter.
Double screw for material feeding,
Contaction with single screw is Harvard structure

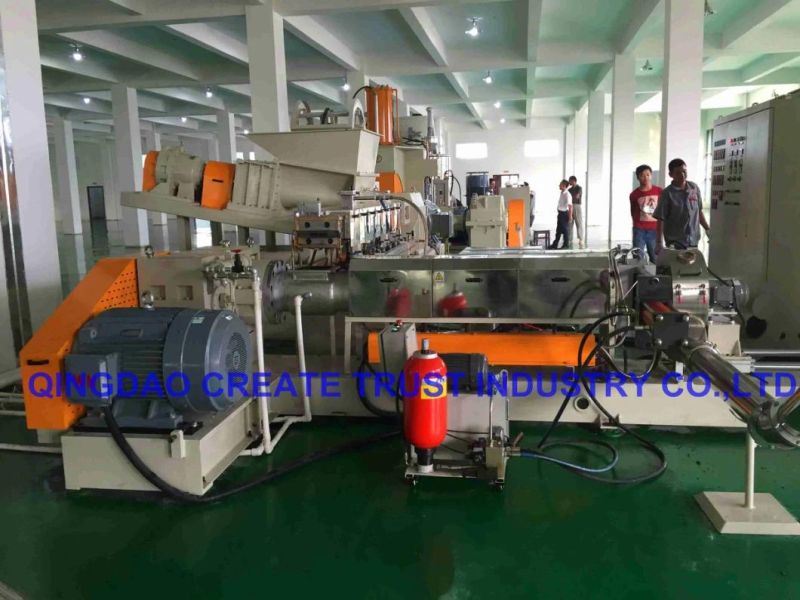

3- The extruder is the highest technology design now in this area :
Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Cooling by water .
Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover . Heating of barrel is made by Cast aluminum heater.
4- Air cooling mould surface hot cutting pelletizer.
All material for water bank,pump and pipes are made by stainless steel. Pipes with cover to protect and easy maintaince
Hydraulic screen changer : fixed between the barrel and head,which can strainer the impurity during working, sametime each exchanged and clean.
The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.
5- The electric parts we used is DELIXI brand,contactor is from SIMENS.
Service of us :
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
