• Model NO.：BSX-1224
• Computerized：Computerized
• Certification：CE, SGS
• After-sales Service：Online Support
• Working Area：1200*2400mm
• Forming Area：1040*2240mm
• Max Forming Height：300mm
• Total Power：20.5kw
• Vacuum Pump Output：63m3,H
• Working Voltage：380V,50Hz,3p or Customized
• Net Weight：950kg

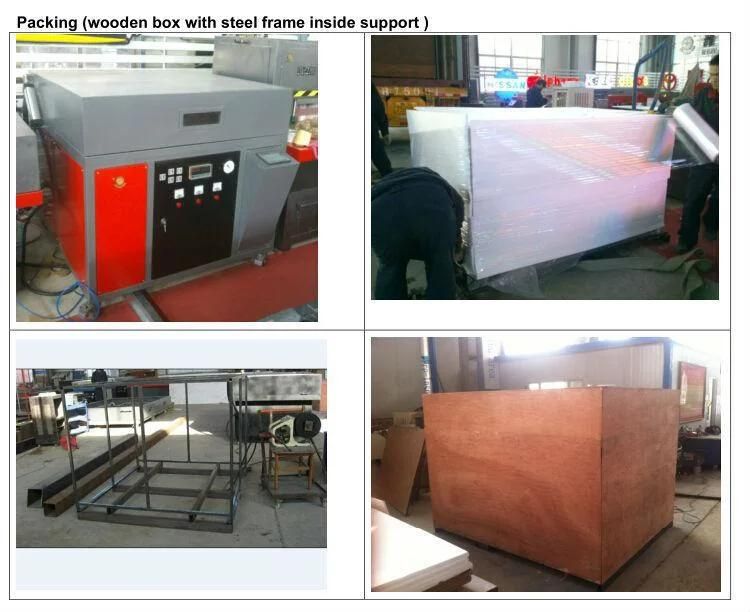

• Transport Package：Wooden Box
• Specification：2870*1550*1650mm
• Trademark：BaoYuanTong
• Origin：Shandong
• Production Capacity：200sets,Month

Basic Info.

Model NO. BSX-1224 Computerized Computerized Certification CE, SGS After-sales Service Online Support Working Area 1200*2400mm Forming Area 1040*2240mm Max Forming Height 300mm Total Power 20.5kw Vacuum Pump Output 63m3/H Working Voltage 380V/50Hz/3p or Customized Net Weight 950kg Transport Package Wooden Box Specification 2870*1550*1650mm Trademark BaoYuanTong Origin Shandong Production Capacity 200sets/Month

Product Description

Automatic plastic vacuum forming thermoforming machine for acrylic abs pvc pmma pet sheet

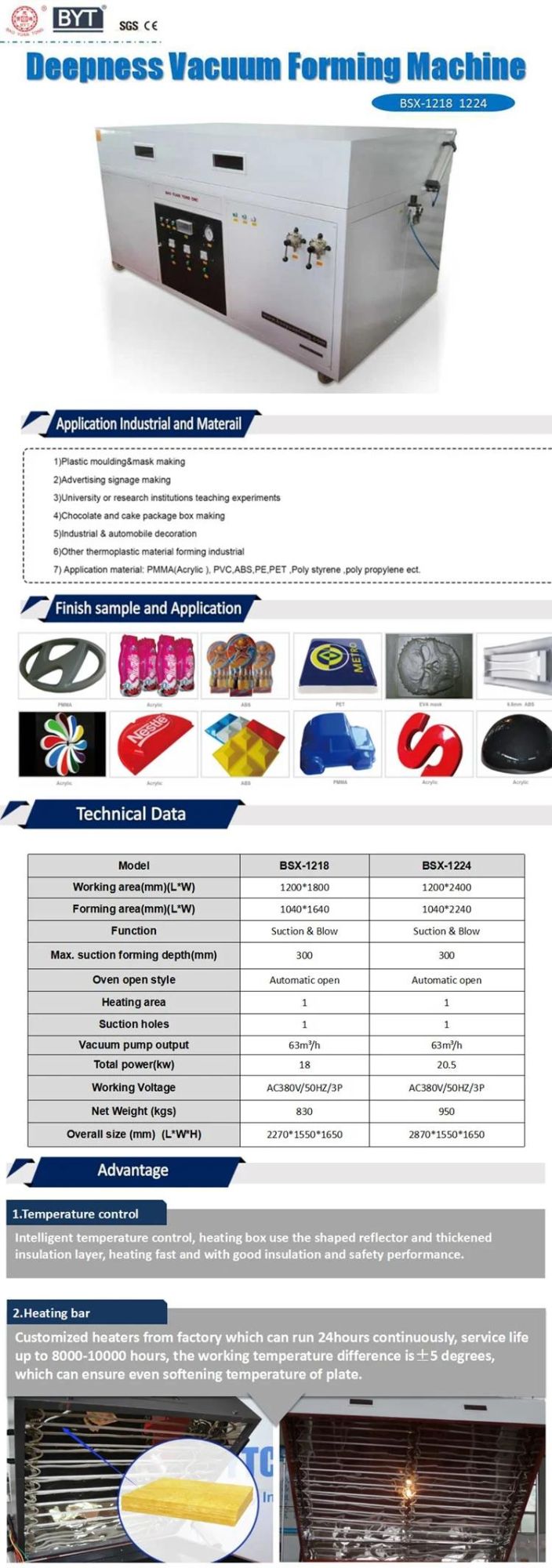

Deepness vacuum forming machine BSX-1218 1224 2030

Application Industry and material :
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.

Feature:
1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2. Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.

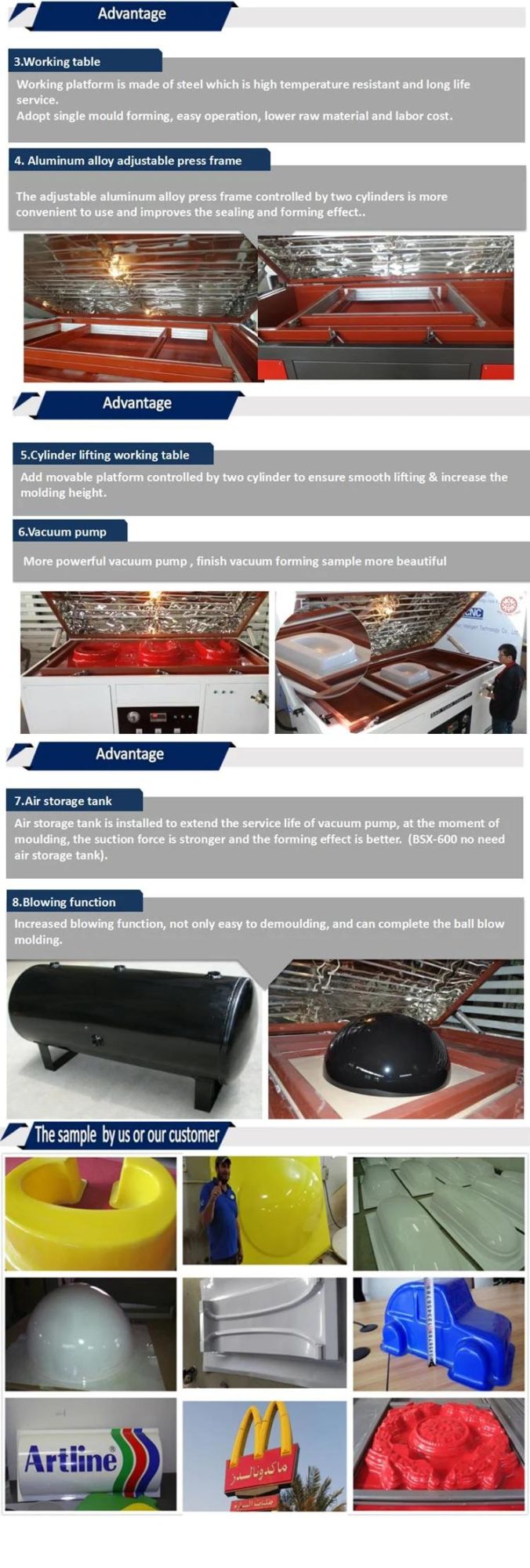

3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.
4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.
6.More powerful vacuum pump , finish vacuum forming sample more beautiful
7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is stronger and the forming effect is better.
8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.
Technical data:

Model	BSX-1218	BSX-1224	BSX-2030
Working area(mm)(L*W)	1200*1800	1200*2400	2000*3000
Forming area(mm)(L*W)	1040*1640	1040*2240	1840*2840
Function	Suction & Blow	Suction & Blow	Suction & Blow
Max. suction forming depth(mm)	300	300	300
Oven open style	Automatic open	Automatic open	Automatic open
Heating area	1	1	1
Suction holes	1	1	1
Vacuum pump output	63m³/h	63m³/h	100m³/h
Total power(kw)	18	20.5	34
Working Voltage	AC380V/50HZ/3P	AC380V/50HZ/3P	AC380V/50HZ/3P
Net Weight (kgs)	830	950	1680
Overall size (mm)  (L*W*H)	2270*1550*1650	2870*1550*1650	3550*2250*1650
