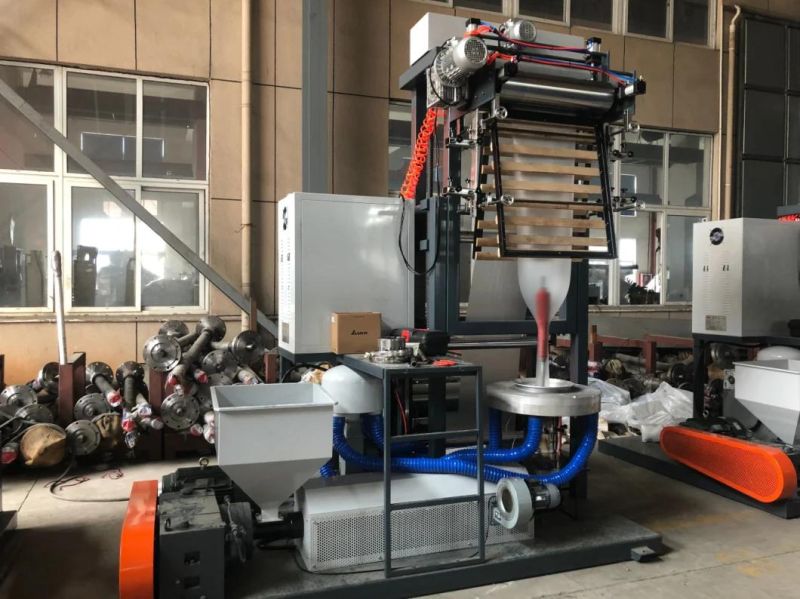

Tiny Film Blowing Machine

Zhejiang Zhuxin Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：500mm
  • Screw Diameter：45mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：MINI
  • Machine Weight：1.8t
  • Certification：CE, ISO9001:2008
  • Machine Model：Mini Type
  • Transport Package：Wooden Case or Stretch Film Package
  • Specification：CE,ISO9001
  • Trademark：Changyin
  • Origin：Made in China
  • HS Code：84773090
  • Production Capacity：1000sets,Year

Description

25-30kg/hr0.01-0.150.01-0.08
Extruder
Screw diameter(mm)Φ45
Screw L/D length28:1
Screw material
(adopt alloy steel nitrogen treater)		SACM-645/38 CRMOALA
Cylinder materialSACM-645/38 CRMOALA
Driving motor (kw)
(3phase frequency inverter control)		11
Average power-consume(kw)8
Type of die
Die size

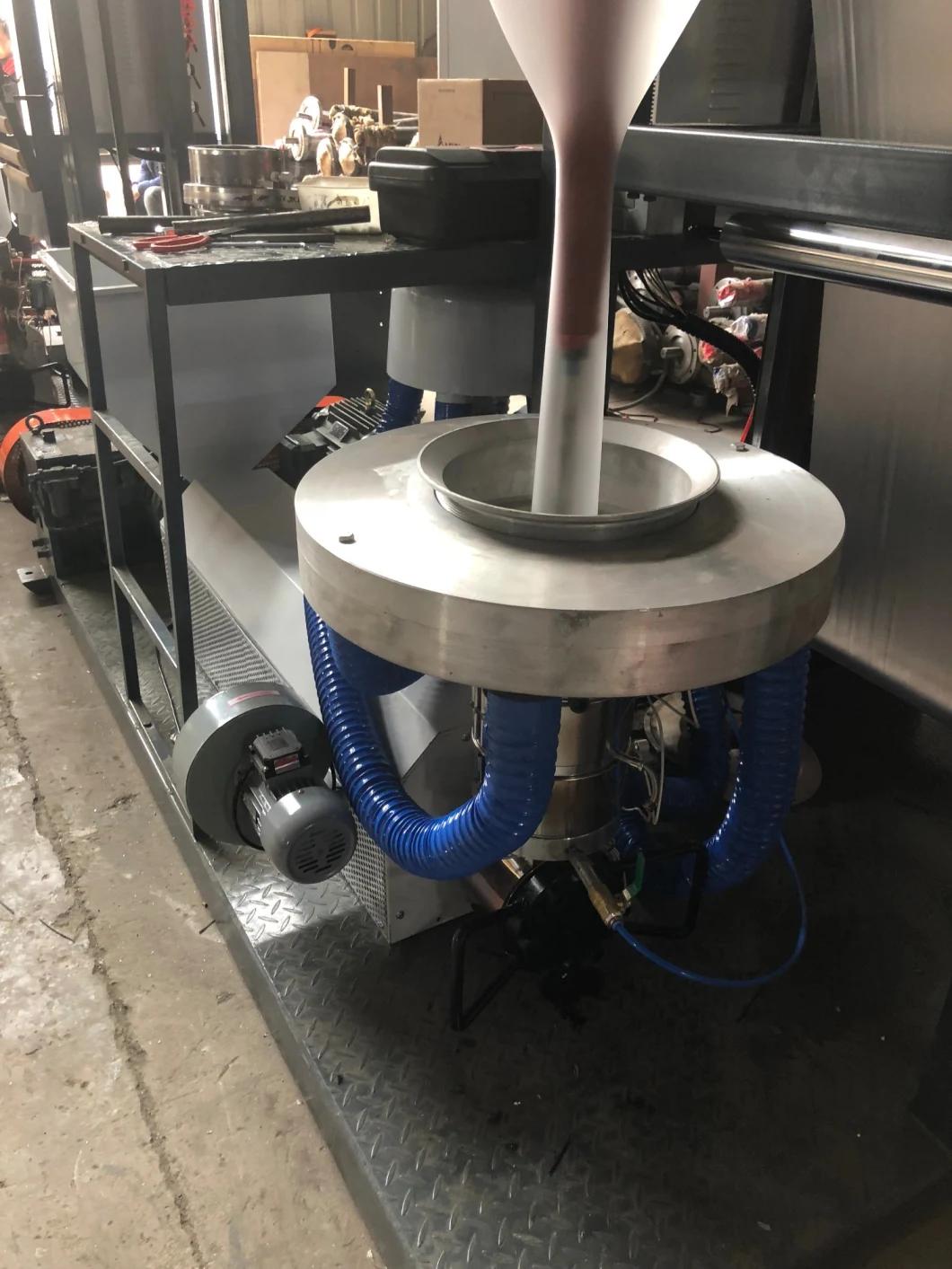

(surface adopt chromium plate)		Air ring
(made of aluminum)		Air blower(kw)Center steady stick
(LD)
Φ8011.51
Take-up unit
Roller width(mm)600m
Effective width 500mm
Take-up speed(m/min)10-100
Take-up motor(kw)0.75
Winding unit
TypeWinding motor
(torque motor control)		Windingspeed
(m/min)		Cover dimension
(m)
Surface friction type1.5kw10-1003.5×2.3×2
