• Model NO.：FT-B90,100,110,120
• Transport Package：Wooden Case,Wooden Block,in Nude
• Specification：FT-B90,100,110,120
• Trademark：Fangtai
• Origin：Ruian China
• HS Code：8477201000
• Production Capacity：20set,Month

Basic Info.

Model NO. FT-B90/100/110/120 Transport Package Wooden Case/Wooden Block/in Nude Specification FT-B90/100/110/120 Trademark Fangtai Origin Ruian China HS Code 8477201000 Production Capacity 20set/Month

Product Description

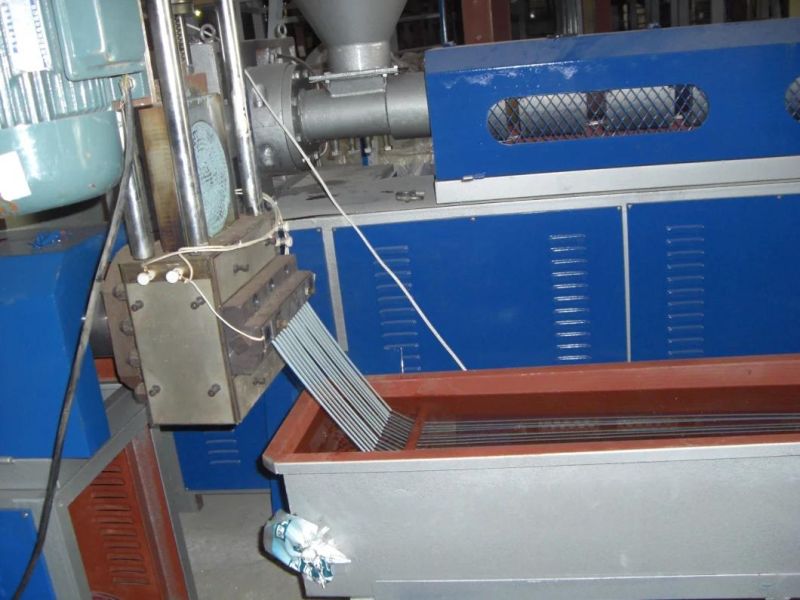

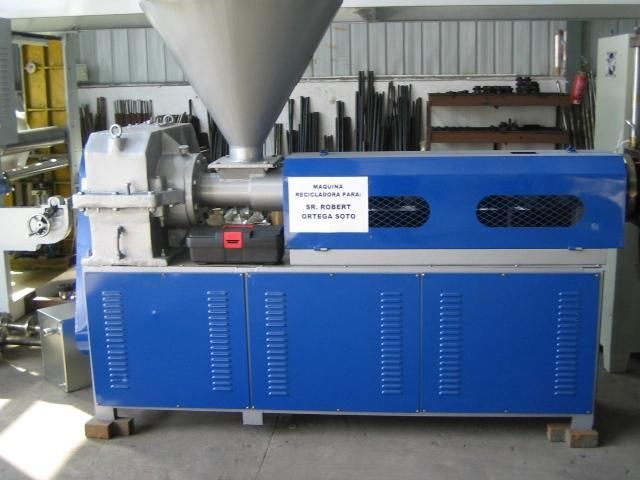

Fangtai Plastic Recycling Machine

Use

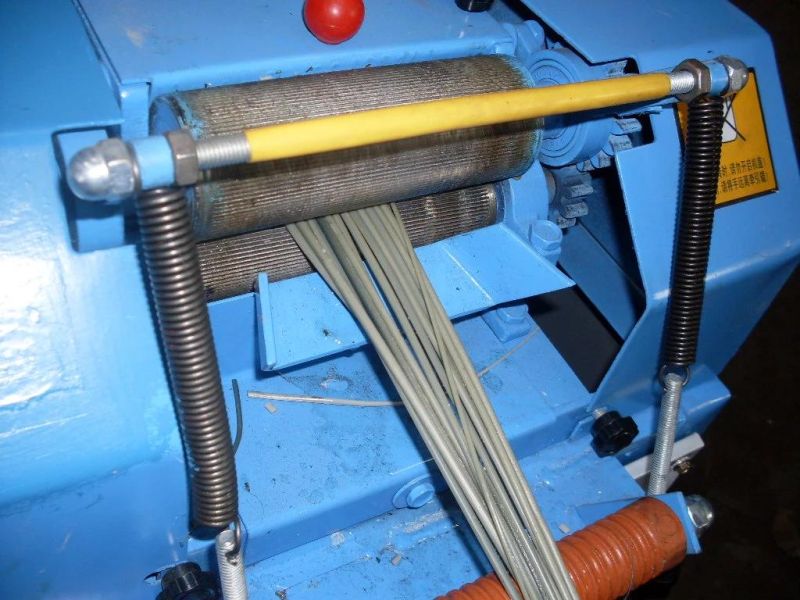

This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance,and favorable economic benefit.

Optional Equipment
1) Hydraulic Net Changer
2) Force Feeding



Main Technical Variables

Model Type	FT-B90	FT-B100	FT-B110	FT-B120
Diameter of Screw Stem	Φ85	Φ95	Φ105	Φ115
Major Diameter Ratio of Screw Stem	L/D20:1-22:1	L/D20:1-22:1	L/D20:1-22:1	L/D20:1-22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	18.5kw	22kw	30kw	37kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2000	2100	2200	2500
Cover dimensions(L*W*H)(mm)	8000*1200*1800	8200*1600*1800	8500*1600*1800	8800*1600*1800
