• Model NO.：PL
• Applicable Industrial：Plastic Recycling
• Name：Pet Bottle Washing Line
• Raw Material：Pet Bottle Waste
• Material Processing：Crushing-Washing-Drying
• Final Product：Clean Pet Flakes
• Main Components：Friction Washer, Washing Tank, Dryer
• Inverter：ABB Brand
• Motor：Siemens Brand
• Contactor：Schneider Brand
• Final Use of Pet：Pet Filber
• Machine Warranty：12 Months
• Machine Material：304 Stainless Steel
• Steam Use：Optional
• Final Moisture：1-2%
• Processing Capacity：500kg,H, 1000kg,H, 1500kg,H, 2000kg,H
• Transport Package：Wood Package
• Specification：It depends
• Trademark：Plastar
• Origin：China
• HS Code：8477800000
• Production Capacity：100sets,Year

Purpose and meaning:
PET bottle flakes crushing washing line is our company absorbed foreign advanced technology and developed our own design and manufacturing. The device is divided into unpacking, washing, sorting, detecting metal, crushing, floating washing, hot washing, rubbing, rinsing, dehydration, drying and packaging process steps. The equipment can produce high quality PET bottle flakes, PET can be recycled for the production of polyester filament products such as PET and other related products, completely changed previously history that recycled PET bottle chip can only do recycled polyester staple fiber filament cannot do. The complete production line design process is reasonable, a high degree of mechanization, less investment, easy maintenance.

Principles and characteristics:
1 It can be realized automatically unpacked bottle brick machinery, and by continuous washing can be sand, cleaned of impurities, also remove the PE labels, paper labels and some PVC labels, then it makes the continuous washing in bottle recycling process more easily, and better utilization.
2. In the selection work platform, you can remove the bottle containing heterogeneous classes, different color bottles, labels, chips, metal and garbage in PET bottles, to ensure the next step for crushing bottles more easily.
3. Designed for PET bottle crushing mill, with a smooth feed, output stability, low power consumption with vibration, low noise level, and the structure is strong, low maintenance, long life characteristics. In wet grinding, in addition to the use of water strengthen the impact of PET debris to improve cleaning effect, and because the cooling effect of water can lower the friction heat, reduce the PET debris, extended knives' life;
4. The purpose of floating washing, hot washing, rubbing and rinsing of PET bottle is for the final purification PET flakes. The machine is mainly relied on three washing force: mechanical, chemical and thermal power, remove the film of the trademark label in bottles, bottle caps, glue, medicine, and other impurities, etc.;
5. Dehydration and finished packaging steps is prepare for the bottle flakes dehydration and packaging.

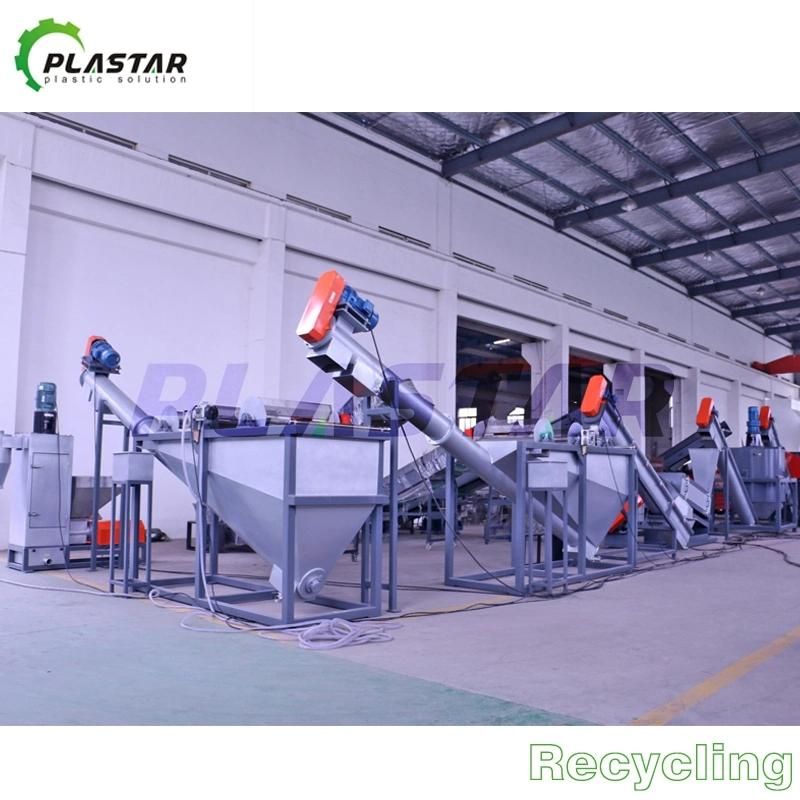

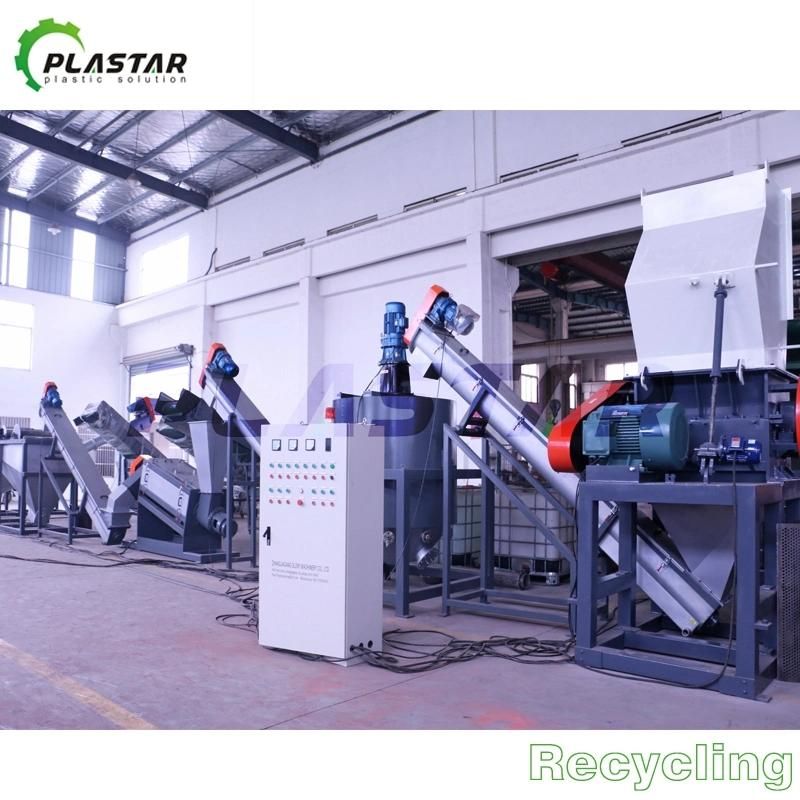

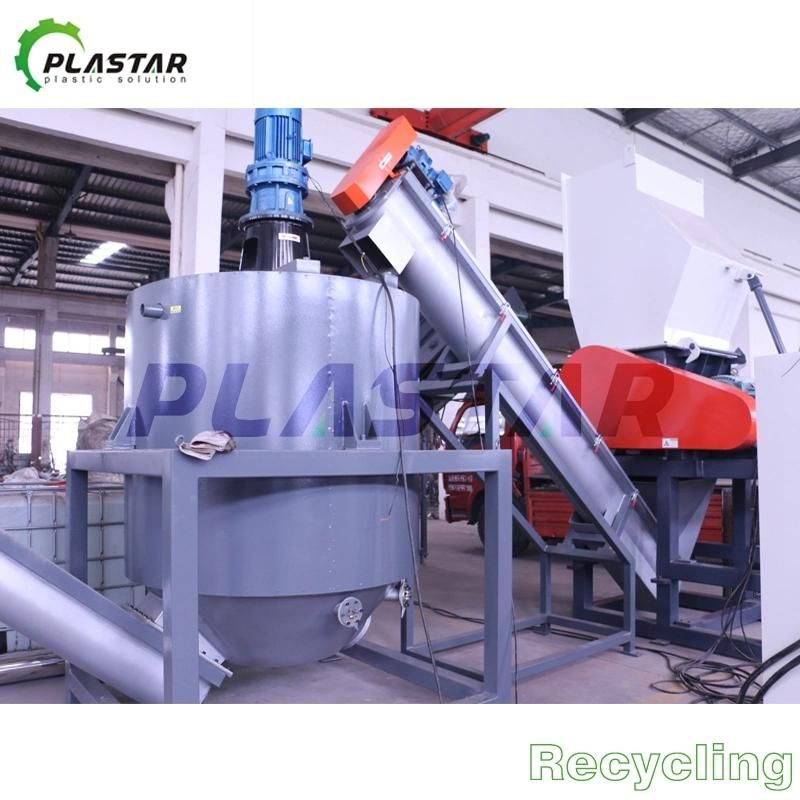

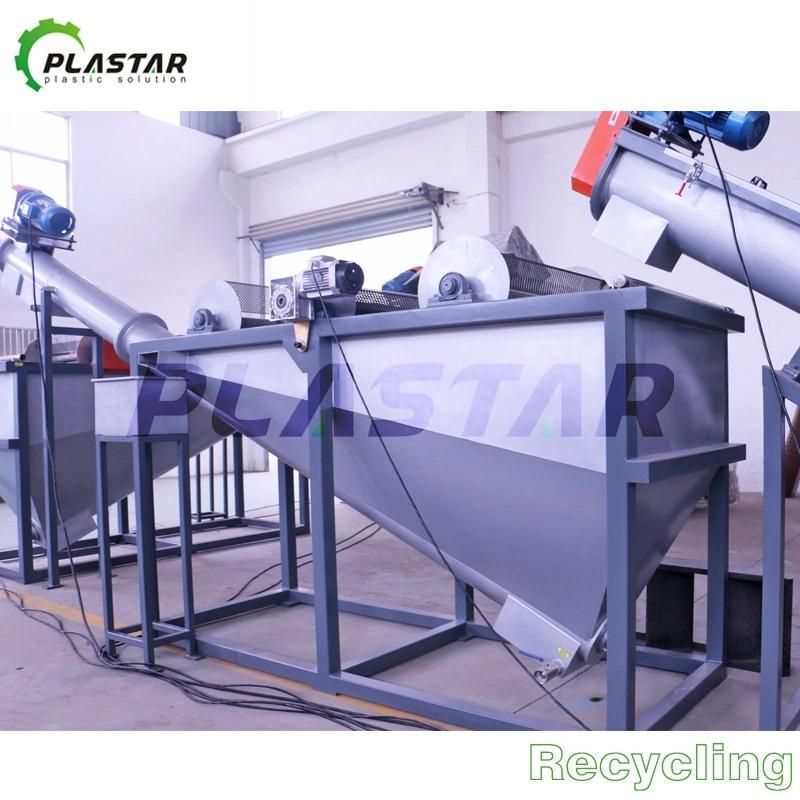

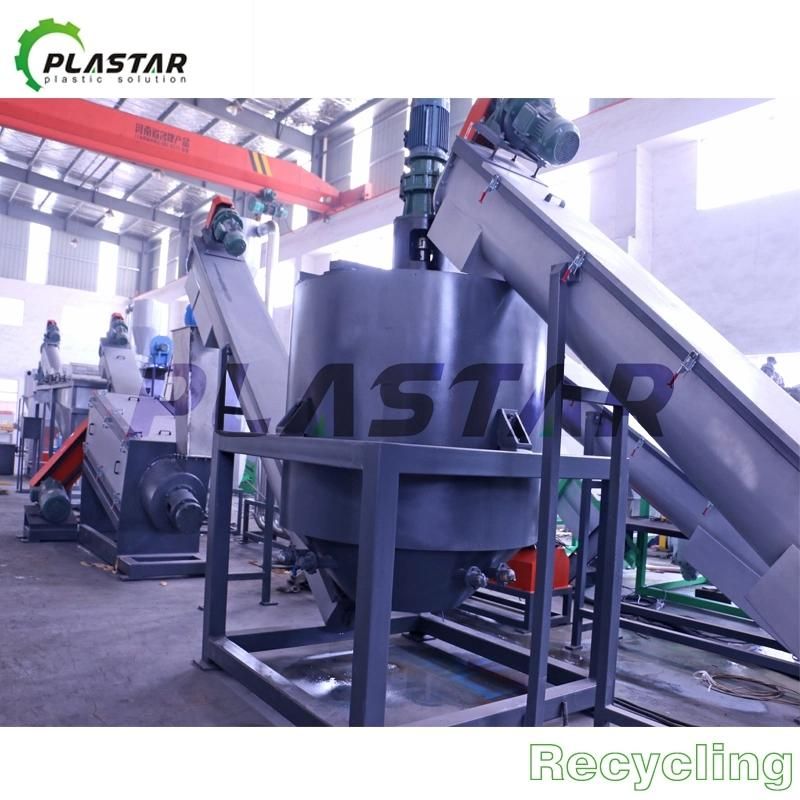

Machine pcitures for reference:
