• Model NO.：FB-G
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Screw Quantity：1set
• Die Head：360 Degree Rotary
• Winder Type：Center Control
• Winder Station：Double Stations
• Water Ring：3 Pieces
• Drying Method：Drying Oven
• Corona Treater：Optional
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO9001 certificate
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：30 Set,Month

Basic Info.

Model NO. FB-G Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Screw Quantity 1set Die Head 360 Degree Rotary Winder Type Center Control Winder Station Double Stations Water Ring 3 Pieces Drying Method Drying Oven Corona Treater Optional Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Set/Month

Product Description

The cylinder and the screw stems of extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The extruder can be lift up to 3meters according to the technological requirements. Mode of film blowing: Bottom blowing. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Usage:
It is used for blowing polyethylene (PP) and also for blowing high and low density polyethylene (HDPE, LDPE) which are widely used for packing food, garments, textile, daily necessities and industrial products etc.


Model	FB-G-600	FB-G-800
Screw Diameter	60mm	75mm
Screw Ratio	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min
Power of Main Motor	15Kw	18.5Kw
Rotational Mode of Machine Head	Continuous Rotation	Continuous Rotation
Max. Extrusion output	38kg /h	46kg /h
Max. Folding Width of Film	600mm	800mm
Single-sided Thickness of Film	0.015 -0.08mm	0.015 -0.08mm
Total Power	28Kw	36Kw
Weight of Machine	2900kg	3500kg
Overall Dimensions(L×W×H)	4800×2000× 4000mm	5000×2200× 4200mm

C: Details Information
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box

2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Plate Type
Film Cooling Method: Water Cooling
Film Bubble Setting Ring: Water Ring
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

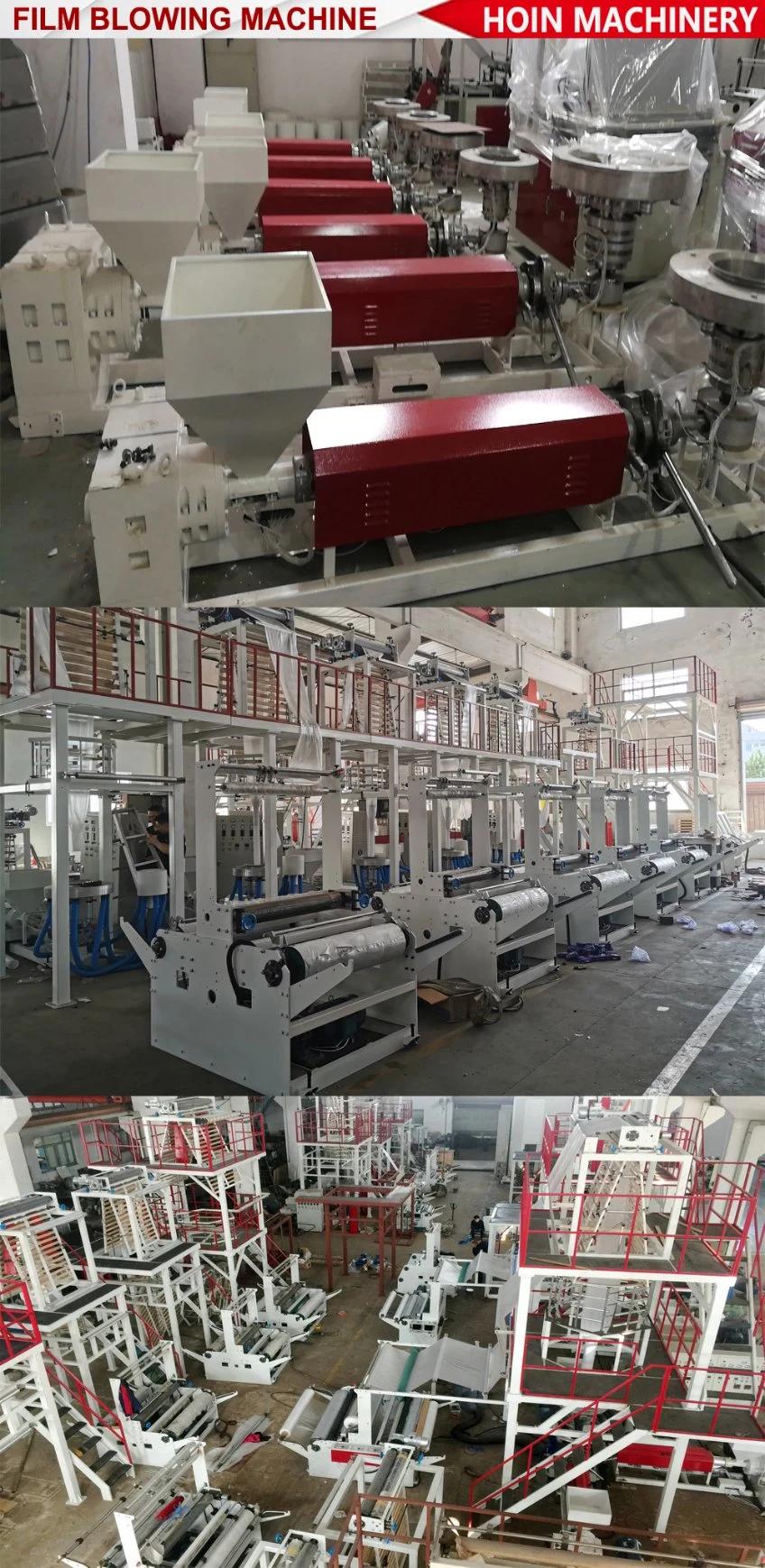

E.Workshop of HOIN

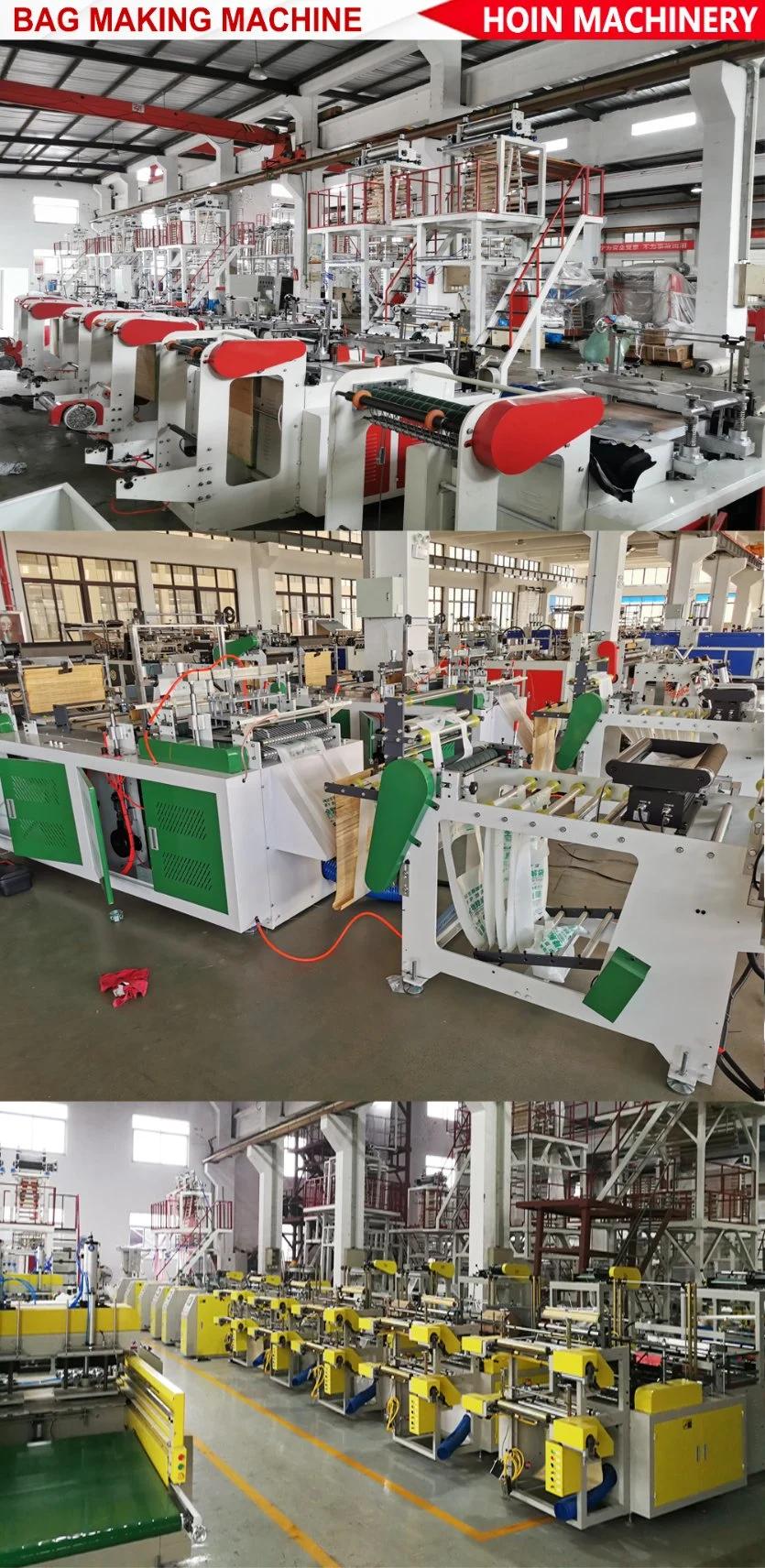

F.More Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
