• Model NO.：SJ-90,33
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Suitable Resin：PP PE PVD
• Width of Final Product：98mm 99mm 100mm
• Transport Package：as Export Standard Plastic Machine Packing
• Specification：Depend on the exactly machine parameters
• Trademark：Weier
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：90 Sets,Year

Basic Info.

Model NO. SJ-90/33 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Suitable Resin PP PE PVD Width of Final Product 98mm 99mm 100mm Transport Package as Export Standard Plastic Machine Packing Specification Depend on the exactly machine parameters Trademark Weier Origin Qingdao, China HS Code 8477209000 Production Capacity 90 Sets/Year

Product Description

100mm Width PVD PE HDPE Band vertical Drain Board Extrusion Machine

Product Description

SJ-90/33 HDPE Drainage board/ sheet production line On line welding

.SJ-90/33 single screw extruder machine 1 set
           Max extrusion capacity 250kg/h
1.3 Screw and barrel material 38CrMoALA
1.4 Charging barrel adopt ceramic heater
1.5 Main motor (AC motor)
1.6 Horizontal gearbox Gear reduction, long life span, low noise, high torque.
1.7 Barrel flange galvanizing
1.8 Cabinet Contactor SCHNEIDER
1.9 Equipped with drying hopper and feeding machine 1 set
. Machine mould 1 set
      Width of the finished product 100 mm
. Cooling water tank 1 set

. Haul off machine 1 set
. Non-woven fabrics material rack 1 set
. Guiding device 1 set
Shrink forming device 1 set
Bonding apparatus 1 set
.Composite and tightening device 1 set
. Haul off machine 1 set

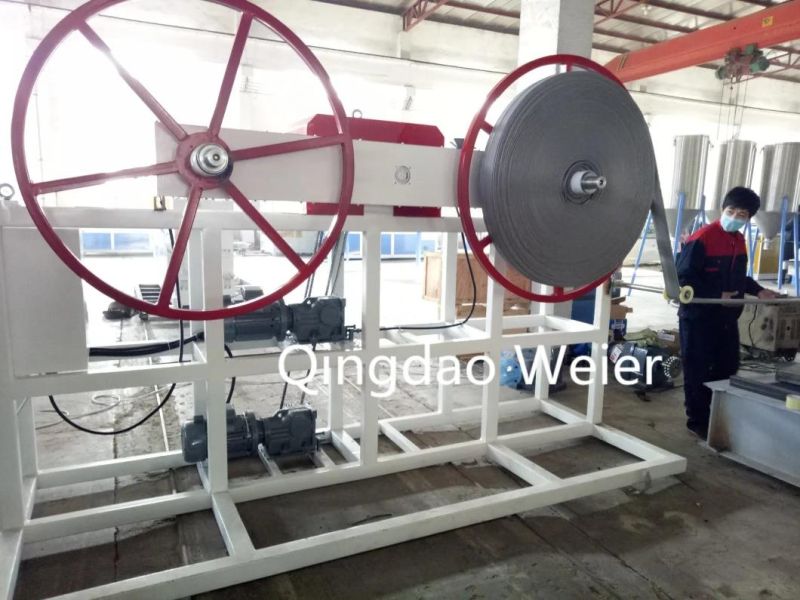

. Double station rewinder 1 set

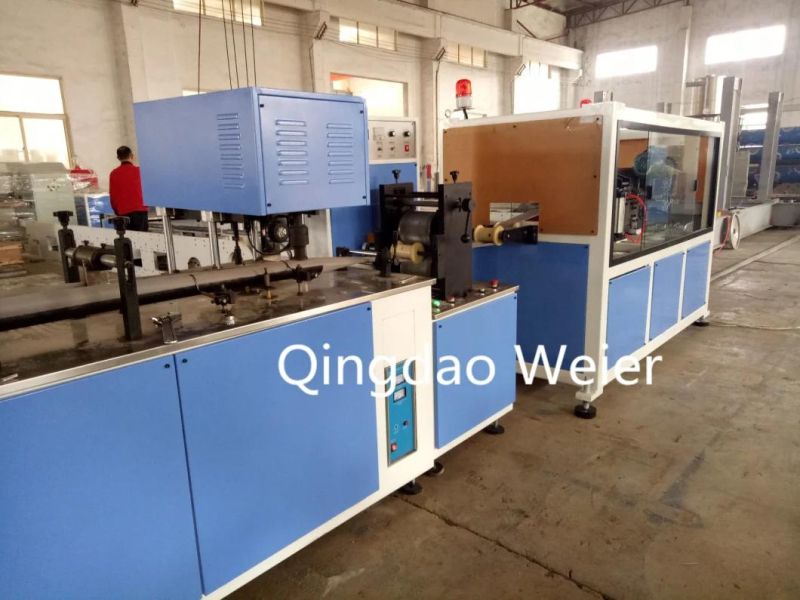

Detailed Images





Packing & Delivery


1.The machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts

    and wires.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world. wooden packaging is

   49.5USD/m3.


Our Service
Pre-sale

We provide presales service in various forms, for example, making investment budget, manufacturing planning, etc. so that customers make a reasonable plan with less cost.
Investment budgeting---We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
Plant Planning---We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.

On-sale
Detailed design of workshop lay-out
Technological information of provided products
Schedule about design, manufacture and installation
Working & Producing process
Training courses for the technician team so that the installation is safe and standard

After-sale
For customers buying our products, we provide them training so that they can use and maintain the machine independently.
We will offer to customers technical support in time. If needed, we will offer on-line guidance and assistance.
We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
We will prioritize the product upgrading of prev
ious customers.
