Best Price Fully Auto Pre Stretch Film Rewinding Machine
Jiaxing Patsons Electronics & Machinery Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Transport Package：Wooden Case
- Trademark：PPD
- Origin：China
Base Info
- Model NO.：PPD-PRE600
Description
Basic Info.
Model NO. PPD-PRE600Product Description

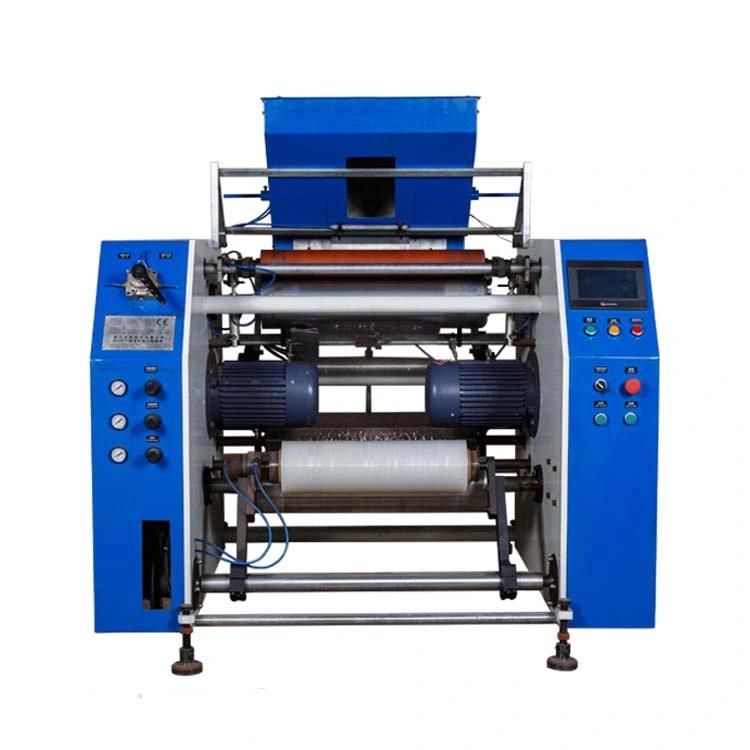

Automatic pre stretch film rewinding machine is designed for rewinding stretch film jumbo roll into pre stretch sub roll and standard stretch roll.Machine is able to add on the folding edge on the both side of pre stretch sub roll,and also able to be oscillating rewinding to make the loose sub roll by much bigger diameter.
It is with PLC program controlling,Inverter controlling motor with HMI to operate by full color of touch screen for ergonomics user friendly.
Technical data:
Model: PPD-PRE600
Jumbo roll width: 600mm
Jumbo roll inner diameter: 3inch
Jumbo roll outer diameter: 500mm
Sub roll width: 600mm
Sub roll paper core inner diameter: 1.5/2/3inch
Machine speed: 650m/min
Standard stretch film design speed: 1000m/min
Volatge: 220/380/415v option
Note: Any specifications can be customized.
