• Model NO.：column type,frame type
• Rubber Machine：EVA Foaming Making Machine
• Transport Package：in Standard Export Packing
• Specification：all sorts of
• Trademark：eenor
• Origin：Made in China
• HS Code：84778000
• Production Capacity：200set Pre Year

Basic Info.

Model NO. column type/frame type Rubber Machine EVA Foaming Making Machine Transport Package in Standard Export Packing Specification all sorts of Trademark eenor Origin Made in China HS Code 84778000 Production Capacity 200set Pre Year

Product Description

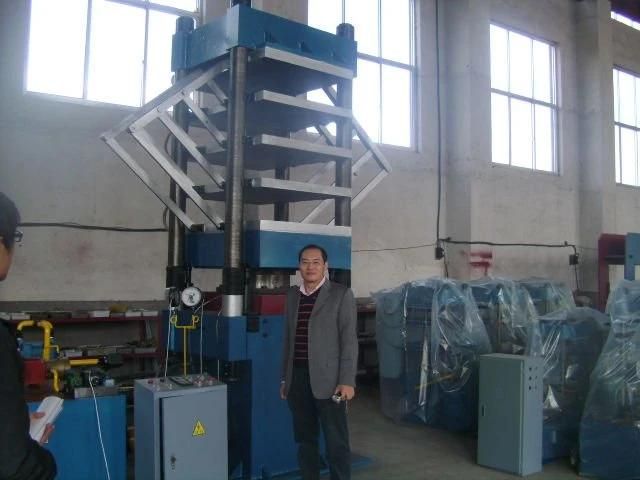

                                                      eva foaming mat  making machine

Function:
Mainly used for producing of foaming slippers, foaming sheet, thermal insulation material, sports protective material, life jacket, sponge and other rubber products.
Features:
1. Main frame uses casting steel. Piston adopts chilled cast iron, with surface hardness HR-70.
2. With large clamping force, high open & close speed, and high production efficiency.
3. Its structure is simple and application is wide. It is easy to be operated.
4.Upper base , movable plate, oil cylinder are made of high-quality steel (EG35), auusrue by heat treatment, flaw detection. The machine's rigidity is stronger 15% than welding plate structure.
 Long use no deformation.

5.Hydraulic system is adopt logical formula circuit, There's no oil seal in the circuit, no abrasion ,no  leak.

6.It is adopt PLC control and text display, function display clearly , data changed convenient.
We can design and manufacture all kinds of non-standard rubber machinery according to the requirement of the customers.

Model No.	XLB-Q1200*1200*4	XLB-Q1400*1500*6	XLB-Q1500*1500*6
Total pressure(MN)	5	8	10
Plate size(mm)	1200*1200	1400*1500	1500*1500
Plate clearance (mm)	150	150	150
Working Layer Quantity	4	6	6
Piston stroke(mm)	500	800	800
Plate pressure(MPa)	3.4	3.8	4.5
Motor power(kW)	18.5	26	33
Overall dimension(L*W*H)(mm)	2400*2100*3200	2650*2400*3600	2750*2400*3600
Weight(kg)	about 22000	about 38000	about 48000
