• Model NO.：PXB70D
• Certification：CE, ISO9001:2008
• After-sales Service：Life-Long Technical Support
• Extrusion System：Hard Gear Surface Decelerator + Japan Inverter
• Auto Deflashing：Available
• Total Weight：5t
• Output(Dry Cycle)：800 *2 PC,Hr
• Die Head Option：Single, Double, Tri-Head, Tetra-Head
• Transparent Line：Available
• Production Usage：Bottle, Toy, etc
• Multi-Layer：Available
• Multi-Color：Available
• Material：PE, PP, PVC, ABS...
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 5L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

SpecificationsMaterial PE,PP, PVC, PA...Max container capacityL5Number of dieSet1, 2, 3, 4Output(dry cycle)Pc/hr800x2Machine Dimension(LxWxH)M3.4x2.2x2.5Total weightT5.0Clamping UnitClamping forceKN68Platen opening strokemm150-500Platen sizemm338x380Max mould size(WxH)mm338x350Mould thicknessmm155-300PowerMax driveKW33Total powerKW41Fan power for screwKW0.25Air pressureMPA0.7Air consumptionM3/min0.9Average energy consumptionKW23Extruder unitScrew diametermm70Screw L/D ratioL/D24Melting capacityKg/hr80Number of heating zonezone3Extruder heating powerKW14.2Extruder driving powerKW22DieNumber of heating zonezone3Power of die heatingKW5.7Max die-pin diametermm135Center distance of double diemm160Center distance of tri-diemm110Center distance of tetra-diemm85

Delivery Time:
- No later than 40 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

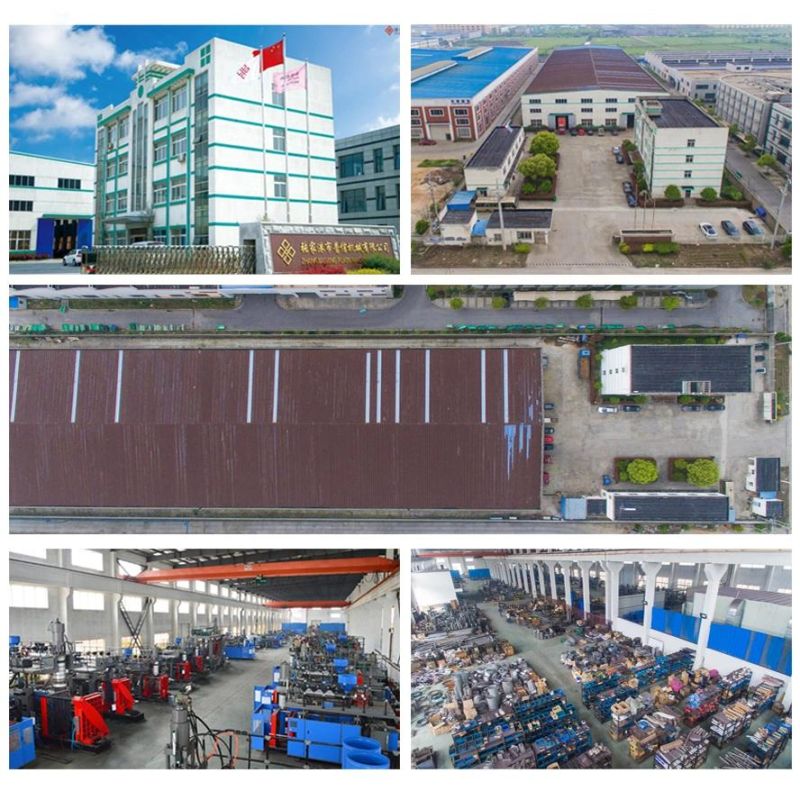

OUR FACTORY:
