Yxtl 750mm*350mm Plastic Cup Making Machine, Cam Structure Thermoforming Machine, Plastic ...
LX Plastic Machinery Co., Ltd.- Certification：CE, ISO
- Column number：Four Column
- Molding Method：Pressing
- Automatic Grade：Automatic
- Forming Area：800mm*600mm Max
- Forming Depth：120mm Max. Other at Request.
Base Info
- Dry Run Speed：40cycles,Min Max.
- Film Thickness：0.15-2mm
- Sheet Width：800mm
- Suitable Material：PP PS Pet PVC BOPS
- Production Range：Container, Clamshell, Tray and Lid
- Automaticity：Forming, Cutting, Stacking and Conveying
- Transport Package：Film with Oil
- Specification：CE
- Trademark：LXLASTICS
- Origin：China
- HS Code：84774000
- Production Capacity：20sets,Year
Description

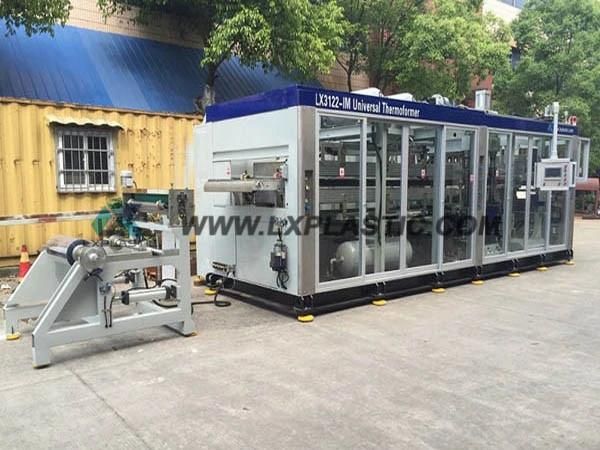

Specification LX3122IM Mould Area 800*600mm Max. . Depth of Draw under sheet 120 mm Max (others at request) Depth of Draw above sheet 30 mm Max. (others at request) Clamping force 750KN Suitable material PP PET PS PVC BOPS Sheet Width 460- 850 mm Material Thickness Range 0.15-1.5mm Material Roll Diameter 1000 Max Dry run Speed 40cycles/min Max. Power Supply 3-N AC380V±15V ,(others at request) Power consumption Approx.35kilowatts/hr Air Pressure 0.7Mpa Air Consumption 2500 Liters/min Cooling Water Consumption 13 Liters/min 15° - 20°C Dimensions 9.5m*2.2m*2.2(L*W*H)
FAQ
1.What can IM Model do?
It produces clamshell,container,lid, tray and dish with rolled-lip
2.What material IM mdoel can process?
It can mainly process PP PET BOPS PS PVC sheet
3.What is MAX. speed of praticl production?
As far as we tested, it is 33cycles/min for 0.2mm PET . for higher speed , we still need more testing
4.What is Trim-in-place and what is post-trim?
Trim-in-place means forming and cutting inside the same mould .
Post-trim means cutting after forming.

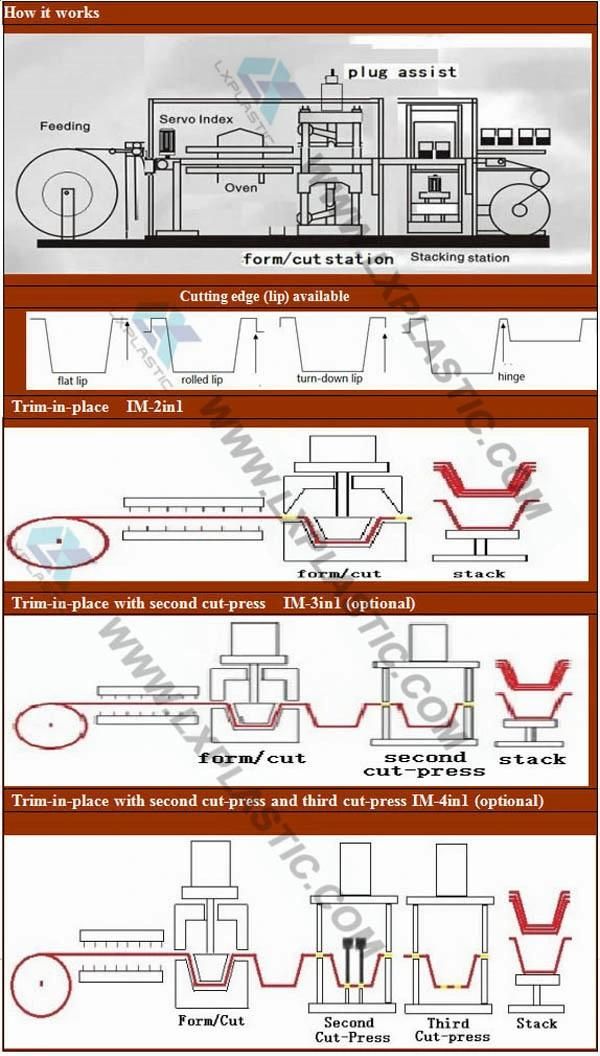

5.what is different among IM 2in1 ,IM 3in1 and IM 4in1?
*IM-2in1 does forming and cutting in the same station with steel-rule-knife.
It can makes any packaging if there is no requirement of making holes on it.
*IM-3in1=IM-2in1+ second cut-press , it can do trim-in-place process and post-trim process . it means it can do cutting after forming station and in forming station.
*IM-4in1=IM-2in1 +second cut-press +thrid cut-press, it can do trim-in-place and post-trim process and also do hole-punching .
6. what is the advantage of trim-in-place ?
* bring indentical trimming for parts made in film with high shrinkage rate like pure PP .
* no wasting time on adjustting accuracy of trimming
*no wasting money to make an independent cutting tool
Technical support
Upon receiving the deposit, we will offer the following technical services:
1. Make drawings of your project for your approval after receiving your samples
2. Provide mould drawings .
3. Provide electric diagram .
4.provide drawings of sensor layout, pneumatic layout, sensor layout and motor layout
5.provide picture of labeling of all electric parts and pneumatic parts.
6. Free technical suggestions on adjusting of equipment layout and application.
5. Equipment upgrading (customers need to pay the cost);
Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system an and Security conforming to CE ;
2. Strict control from purchasing inspection, process inspection to final proofing;
3. Established several QC departments to execute quality control regulations;
4. Detailed quality control examples:
(1) Complete files for quality control and quality feedback;
(2) Strict inspection for the components to assure products free of damage and avoid rust-eaten and paint peeling off later on.
(3) Only qualified components will be assembled and total equipment must be inspected completely before sale.
After sale service
1. we can offer a full training in our factory on operation and maintain
2. Installation and commissioning in buyer's factory is available with all cost caused by visit on buyer's account.
3. The warranty is one year. And after one year of warranty, service is still available with cost on buyer's account if it involves parts changing.
