• Computerized：Computerized
• Certification：CE, ISO9001:2008, QS, UL, GMP
• Transport Package：Wood Pallet
• Specification：DYPS560 600 700 800 1000 1200
• Trademark：DYUN
• Origin：China
• HS Code：84778000
• Production Capacity：100 Sets ,Year

Basic Info.

Computerized Computerized Certification CE, ISO9001:2008, QS, UL, GMP Transport Package Wood Pallet Specification DYPS560 600 700 800 1000 1200 Trademark DYUN Origin China HS Code 84778000 Production Capacity 100 Sets /Year

Product Description

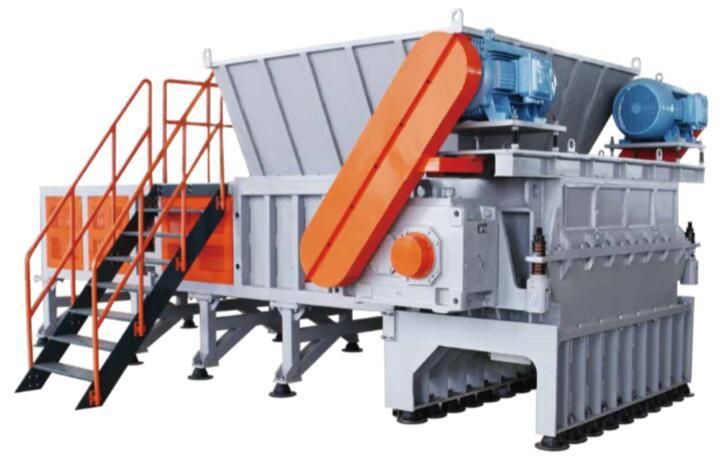

DYSSZ Series Heavy Single-shaft Shredder
DYSSZ series shredders are designed to meet the difficult recycling requirements and high capacity requirements of various industries. They can be used to shred all kinds of plastic bulk solid wood, waste wood, waste paper and thick cardboard, electronic products and rubber products, etc. Representative products such as refrigerator casings, plastic leftover material, pallets, waste packing products, blow molding barrels, petrol barrels, plastic pipes and membranes, etc.

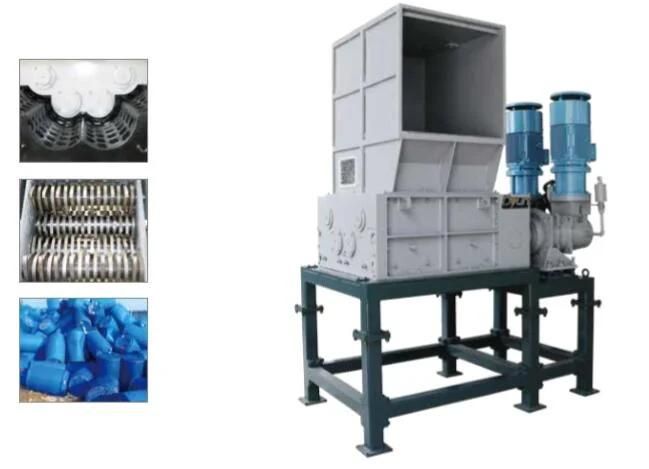

DYFSS Series Four-shaft Shredder
Four-shaft series shredders are of multifunction and versatility. With standardized and modular design, shredder of this series has an advantage of good interchangeability between spare parts. The auxiliary knife is refined by die forging, while the main knife, made of special alloy steel by a special process, is of good wearability and high intensity. The shredder is driven by intermediate gear transmission, forming differential relationship. Shredders of this series are applicable to shred plastic barrels, plastic frames, woven bags, circuit board and paper box etc., and have advantages of controllable discharging size, high-efficiency, low rotate speed and low noise.

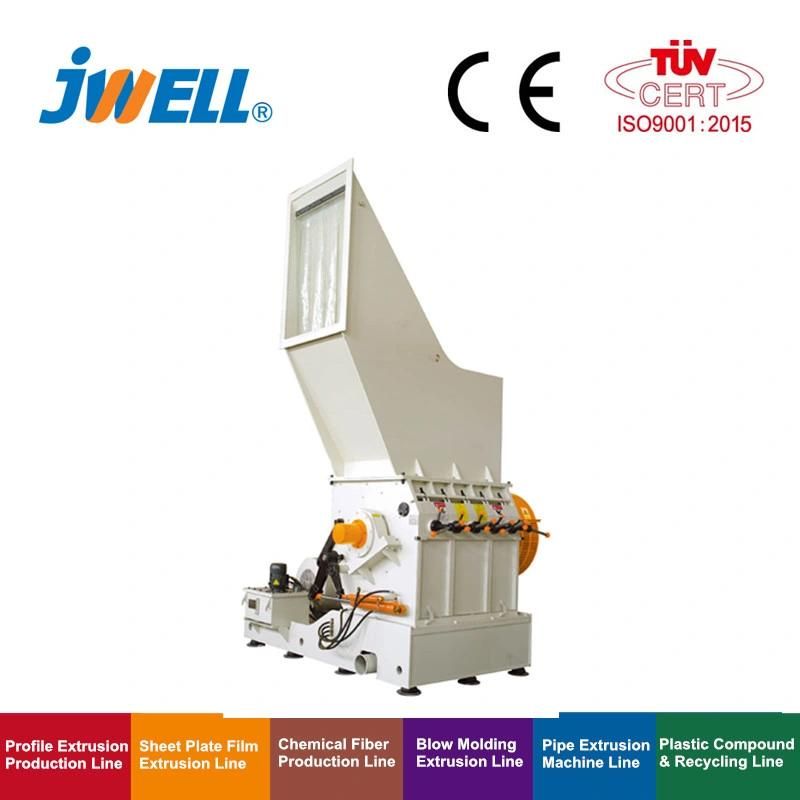

DYPS-X Profile,Pipe,WPC Series Special Use Strong Crusher

Conventional crusher have substantial problems handling long pipes and profiles. To feed large and bulky materials in most cases cavities or platforms are needed. Therefore DYUN developed the DYPS-X range. Thanks to the almost level feeding hopper, long pieces can be fed easily. As the machine there is no risk of blocking, in case of congestion no more material will be accepted by the machine until the grinding chamber is empty and the machine will accept material again, and work can go on without problems again.
The DYPS-Xrange is based on the DYPS-Z range and all the machine concepts and features that are present in the DYPS-X range and leave nothing lacking.

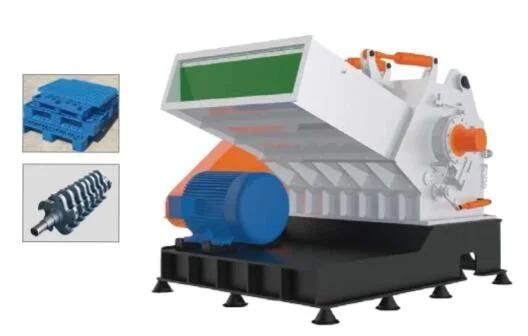

DYPS-T Series Tray/Plate Special Crusher

Tray and plate special crusher, is mainly for crushing wide but thin plastic products. It has a dedicated main shaft and unique feeding hopper, which is easy to feed trays and wide plate products in. Wide products do not need to be cut, which spares the recycling process, saves energy, reduces labor intensity and costs and m improve the efficiency of pulverization and recycling.

DYPS-H Dedicated High Output Thin-film Crusher
DYPS-H Dedicated high output thin-film crusher is designed for crushing hard cracked material, specially high tenacity material or mixed material. And the capacity is high, specially film. The rotor is full steel with screw subsection blades. This special structure can avoid the damage of spindle because of hard material and mixed material. The crusher chamber and screen can be opened and closed by hydraulic system, which will save more time when you have to replace the blades and screen. DYPS-H series is low speed, less dust and low noise. In order to make use of the friction generated during the fracturing process to cleaning process, the series crusher can also work in the wet state.

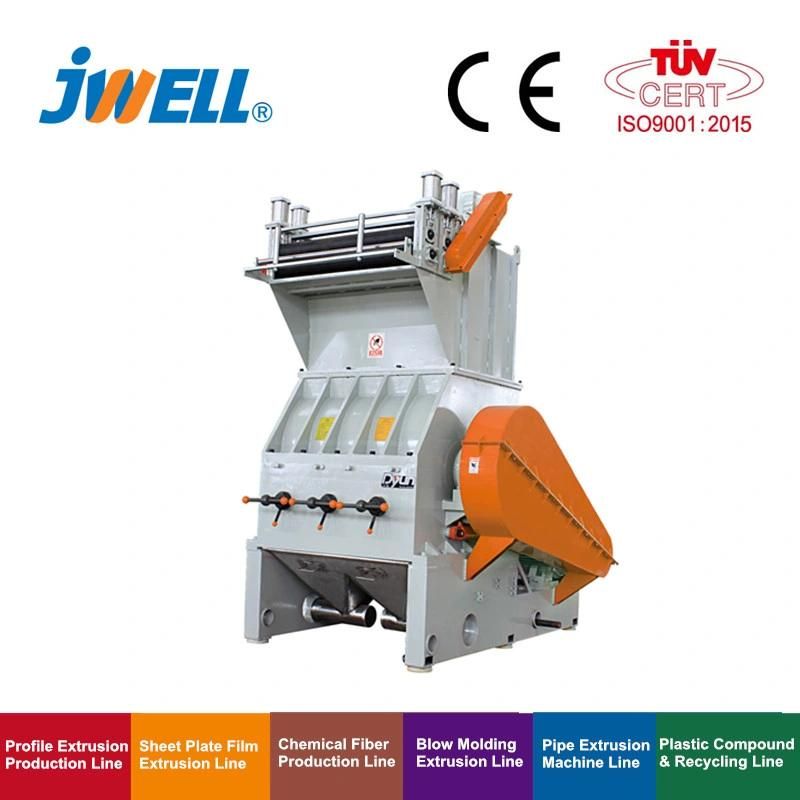

VDYPS-PB&DYPS-FP Sheet, Plates, Foam Coil Material Crusher
It is difficult to crush the quite width of sheet,plates and foam coil material. The DYPS-PB and DYPS-FP can solve the problem. Comparing with ordinary crusher, this series crusher add a set of haul-off device,two sets of press roller, air press controller. The line speed can reach 30m/min. The capacity is higher. The main axis is processed with high quality steel after verifying the balance. The rotor adopts "V"type cutting technology. The DYPS-FP adopts box water cooling system, which avoid sticking the blade because of the heating of material. We can provide material collection device and powder separation system according to customer's requirements.

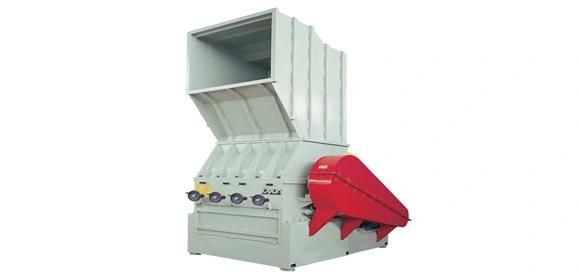

DYPS-Z Series Heavy Crusher
DYPS-Z series heavy crushers are designed specially for the recycling material which is not easy to be crushed.
Cabinet: The main box of DYPS-Z series crusher, processed by CNC Machine exactly with the strong welding structure. This kind of crusher features thick wall thickness, high strength, good wear resistance, no pollution, long life. The upper box can be opened easily by hydraulic system and repaired conveniently.
Main axis: The main axis is processed with high quality steel after verifying the balance. Good toughness, stable working state, low shaking are the main features.
The rotor with new V type cutting technology can be composed of three blades, five blades, seven blades on the basis of different crushing material. This technology makes sure the blade can produce uniform granular with low energy and low noise.
Filter: The screen plate is processed with high strength material. It can be installed easily with hydraulic system and changed conveniently. Different size mesh in 10-200mm for customer' option.s

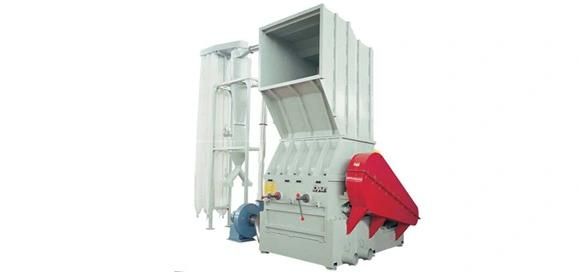

Dyun can also provide relevant auxiliary equipment according to our customers requirements, such as feeding conveying system, metal segregator, material collection device, powder seperate equipment.

Pipe crusher
