Used Rotary Die Plastic PE Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- Type:Single-Layer Co-extrusion Film Blowing Machine
- Raw Material:PE
- Automation:Non-Automatic
- Computerized:Non-Computerized
- Certification:CE, ISO9001:2008
- Certificate:CE,ISO9001
Base Info
- Model NO.:FB-A-600
- Guarantee:One Year
- Feature 1:Rotary Die Head
- Feature 2:Single Layer Film Extruding
- Feature 3:360° Continuous Rotation
- Transport Package:Stretch Film or Wooden Case
- Specification:CE, ISO9001
- Trademark:HOIN
- Origin:Ruian, Zhejiang, China
- HS Code:8477300000
- Production Capacity:30 Set,Month
Description
Basic Info.
Model NO. FB-A-600 Guarantee One Year Feature 1 Rotary Die Head Feature 2 Single Layer Film Extruding Feature 3 360° Continuous Rotation Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477300000 Production Capacity 30 Set/MonthProduct Description

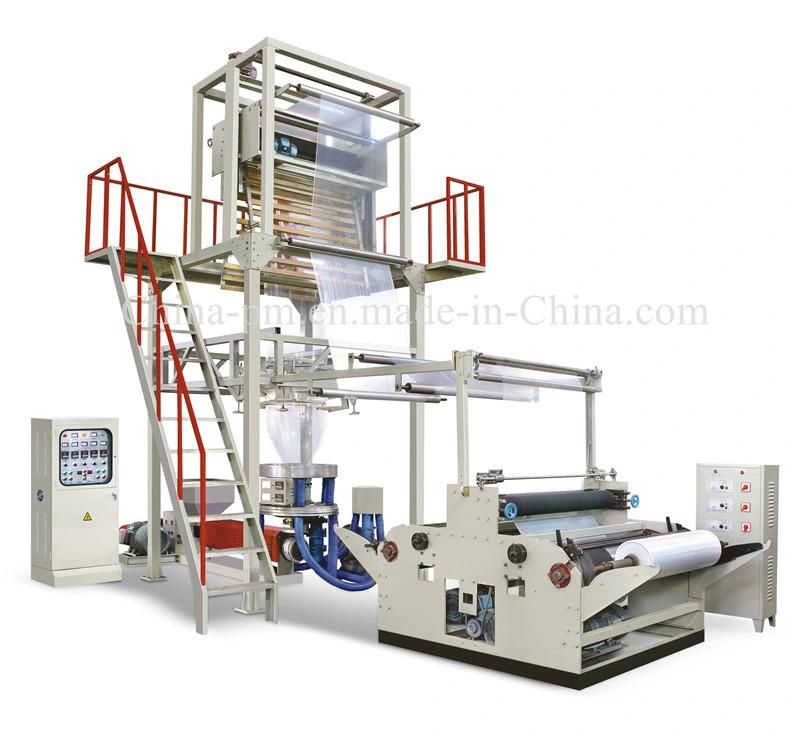

Uses and Featuresrotary die head film blowing composite machine unit with rotary machine head is used to blow plastic composite films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE).
The composite films can be widely applied to packaging for liquid, printing base materials, exported products and industrial products,garment and textile,etc.
The die head is lauer type spiral mandral,continous 360,rotation.the air ring is high -performance and double air vent. and the machine is with high speed net changer, double rewinder with superficial.
Features
1. The cylinder and screw rods of extruder are all made from high-quality alloy steel through precision machining and nitriding, so as to ensure optimal hardness and durability. 2. The auxiliary extruder is provided with a platform worktable to be operated more conveniently, and is equipped with a bubble fixing ring.
3.the auxiliary machine has a plat from working table for making operation easily and equiped with bubble stablizing ring. the rewinders adopt torque motor to keep proper tension , winding orderly and easily changing the roll .
Model | FB-A-600 |
Suitable material | LDPE,HDPE,LLDPE |
Layflat width of film | 600mm |
Thickness of film | 0.01-0.1mm |
Max extrusion output | 40kg/h |
Screw diameter | Φ50 |
Screw L/D | 28:1 |
Screw rotation | 10-100r/min |
Main motor | 11KW |
Dia of orifice | Φ80mm,120mm |
Rotary traction form | 360 °continuous rotation |
Total power | 20kw |
Dimension (L*W*H) | 5.6*2*3.8M |
Weight | 3 T |
