PP PE Color High Quality Plastic Masterbatch Production Plant
ZHANGJIAGANG S&K MACHINERY CO., LTD.- Warranty：1 Year
- Material Processed：PP PE PPR PVC ABS
- Plastic Type：PP PE PPR PVC ABS
- Screw：Single,Double
- Automation：Automation
- Computerized：Computerized
Base Info
- Certification：GMP, ISO9001:2008, CE
- Color：Customized
- Power：10-295kw
- Weight：5-20t
- Plastic Process：PP,PE,PA,PVC,PE-Rt,Pex,PVDF,ABS
- Voltage：380V ,220V
- Usage：Plastic Pipe
- Name：Plastic Washing and Recycling Machine for Plastic
- Key Words：Plastic Washing and Recycling Line
- Transport Package：Film
- Specification：28*1.5*10 m
- Trademark：S&K
- Origin：Jiangsu
- HS Code：84778039
- Production Capacity：30 Sets Per Month
Description
1
Model
SKML-85
SKML-100
SKML-130
SKML-160
SKML-180
2
Screw Diameter(mm)
85
100
130
160
180
3
Compactor power(kw)
37
55
75
90
110
4
First extruder power(KW)
55
90
132
180
250
5
Second extruder power(kw)
18.5
30
45
55
90
6
Output(kg/h)
180-250
280-350
450-500
650-700
900-1000
Machine Parts:

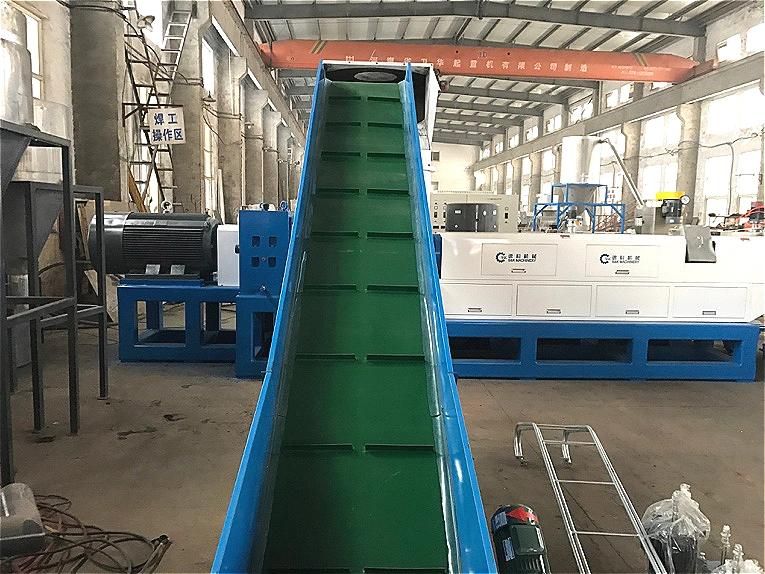

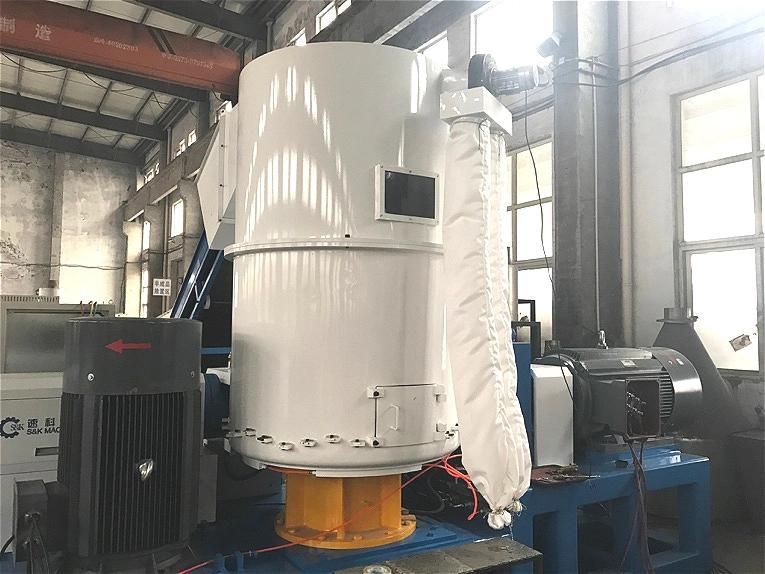

Belt convveyor : Compactor: Single screw extruder 1.Belt material: PVC 1.Motor power: AC 75KW 1.Screw and Barrel Material: 38CrMoA1A
2.Power of motor: 2.2 kw (frequency controlling) 2.Rotating blade: 12 group. 2.Rotate Speed: 10-150 rpm
3.Raw material: Carbon steel 3.Fixed blade: 15groups 3.Heating Method: Electric heater
4.Conveyor width: 800mm 4.Blade material: Gr12MoV 4.Cooling Method: Force air cooling

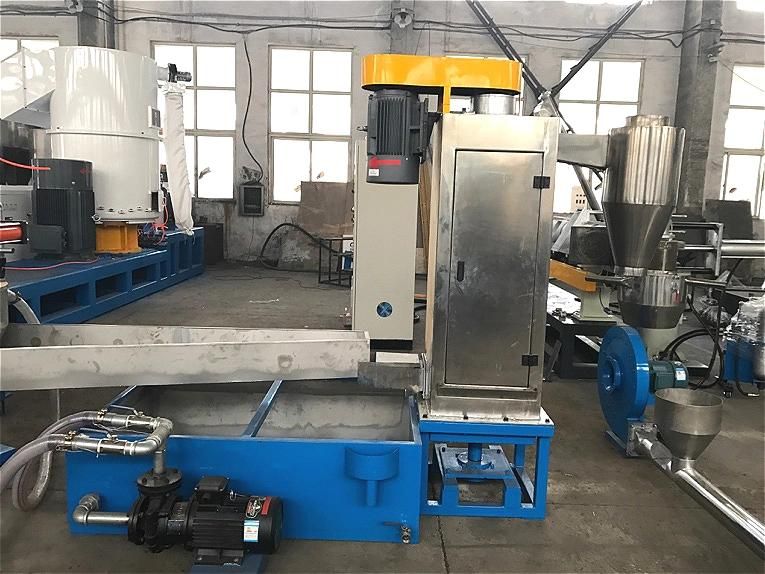

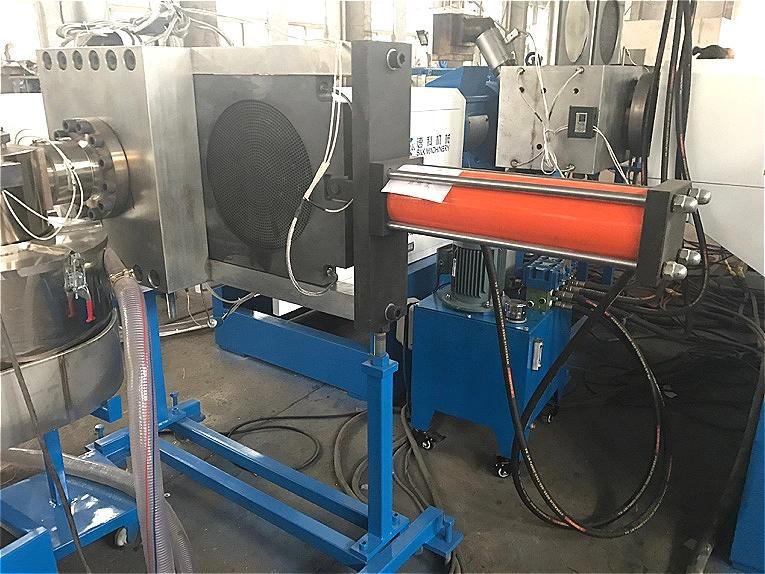

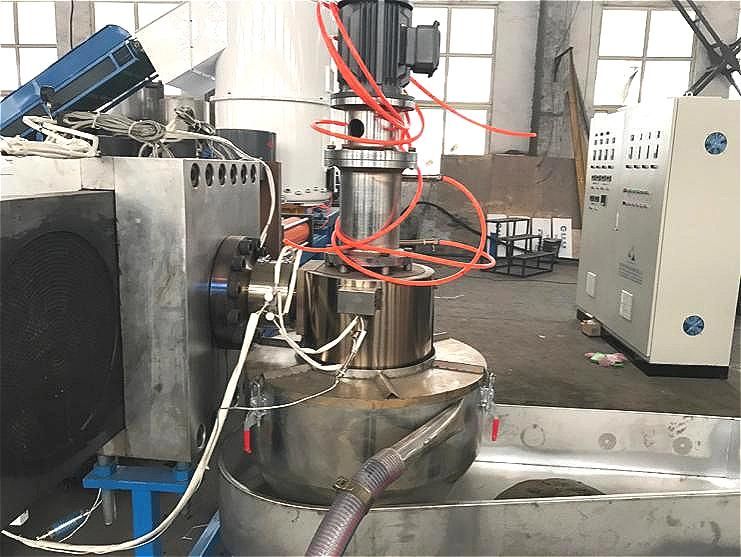

Hydraulic Screen changer : Water-ring cutter: Dryer:
1.Changing screen time≤2 sec. 1.Motor power: 2.2KW 1.Motor power: 5.5kw
2.Motor power:2.2KW 2.Cutting speed: controlled by frequency 2.Made of stainless steel
3.Diameter of the plate:300mm 3.Rotation speed: 1400rpm
4.Heating power:16KW

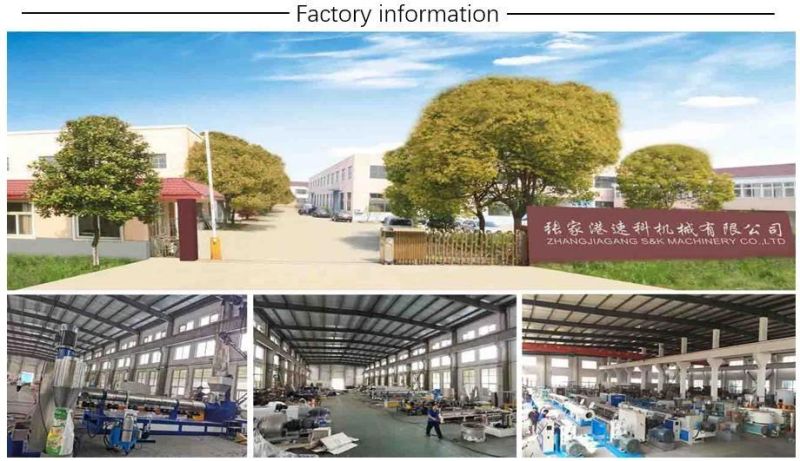

Factory overview:
Our service:Pre-sale :
We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals
In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard
After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
Competitive Advantage:
1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.
2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.
S&K Machinery has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
