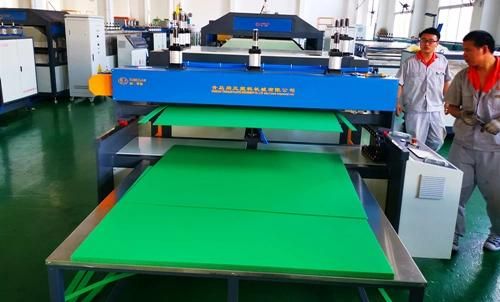

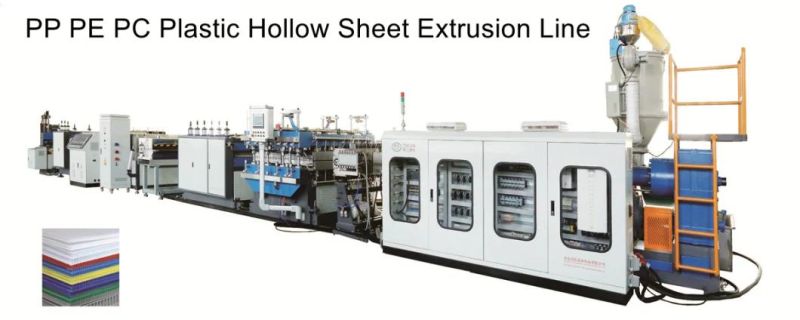

1220-2450mm PP Hollow Corrugated Sheet Board Plastic Extruder Machine

Qingdao Tongsan Plastic Machinery Co., Ltd.

After-sales Service：Engineer Team
Warranty：12 Month
Type：Sheet Extruder
Plastic Processed：PP
Product Type：Extrusion Molding Machine
Feeding Mode：One Feed

Base Info

Model NO.：65,132
Assembly Structure：Integral Type Extruder
Screw：Single-Screw
Engagement System：Full Intermeshing
Screw Channel Structure：Deep Screw
Exhaust：Exhaust
Automation：Automatic
Computerized：Computerized
Sheet Width：1220-2450mm
Sheet Thickness：2-10mm
Motor Brand：Siemens
Output Capacity：200-350kg,H
Line Speed：2-6m,Min
Inverter：ABB
Screw Design：Single-Screw
Screw Material：38crmoaia
Screw Diameter (mm)：120mm
Screw L/D Ratio：36
Voltage：3p,380V,50Hz or Customized
Air Flow：0.8m3,Min
Transport Package：Standred Sea Packing
Trademark：TongSan
Origin：Shandong China
Production Capacity：2set,Month

Description

Main Technique ParameterModelTSGZB-1400TSGZB-1860TSGZB-2300TSGZB-2600TSGZB-2600(Co-extrusion)Width1220mm1700mm2100mm2450mm2450mmThickness2-6/5-10mm2-6/5-10mm2-6/5-10mm2-6/5-10mm2-6/5-10mmExtruder ModelSJ-90/36SJ-100/36SJ-100/36SJ-120/36SJ-120/36SJ-120/36SJ-120/36SJ-80/36Extruder Capacity170-190kg/h190-250kg/h260-300kg/h300-350kg/h340-420kg/hMain Motor55KW55-75KW75-90KW90-110KW110+37KW

APPLICATION:

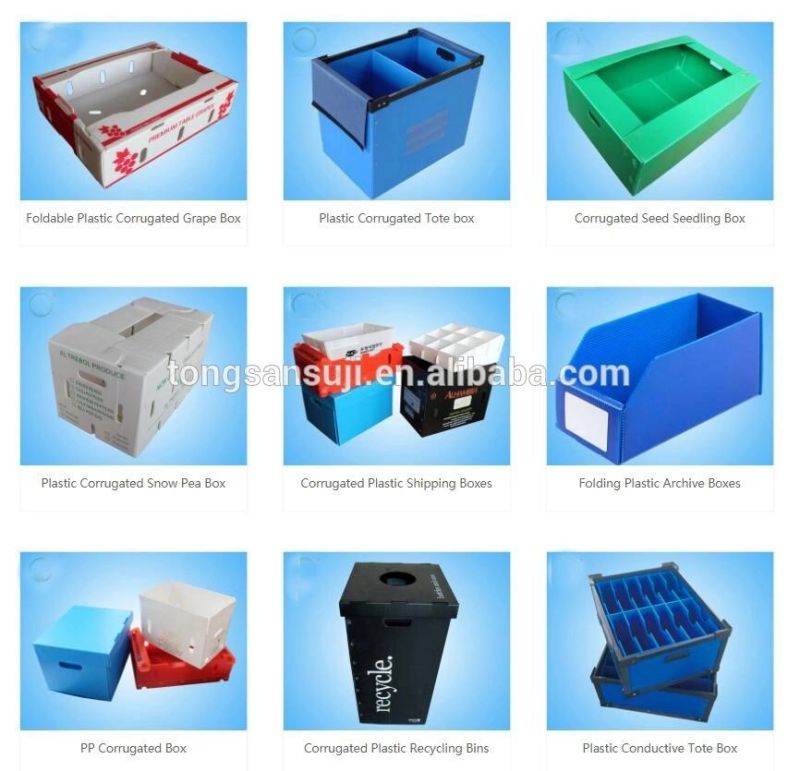

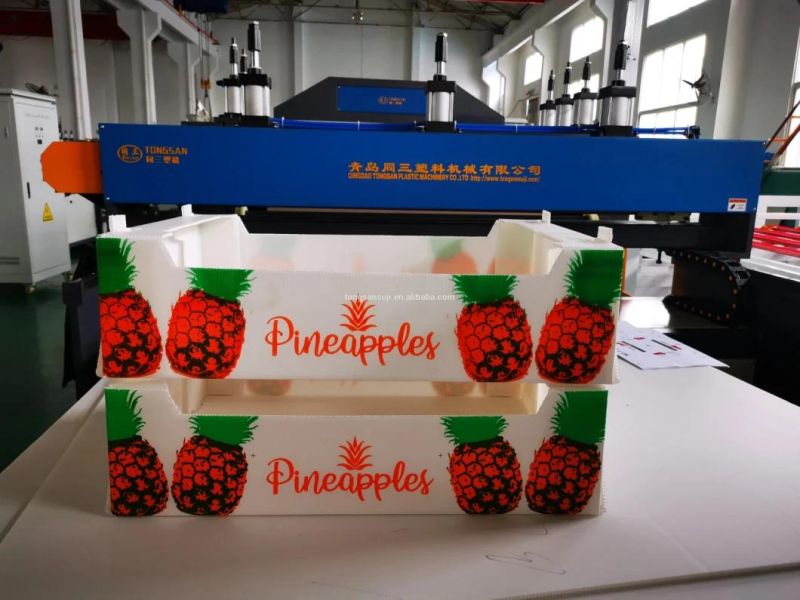

Application of PP Plastic Hollow Corrugated sheet/Plate in Fruit,Vegetable and Food Packaging
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.

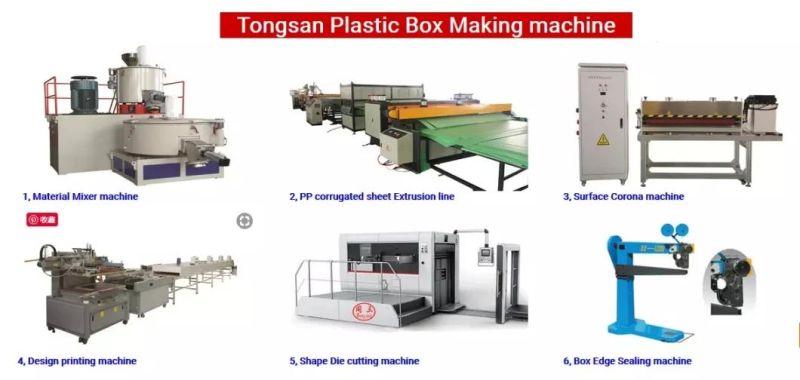

PROCESS:

WHY CHOOSE US?

BE OUR CLIENT:

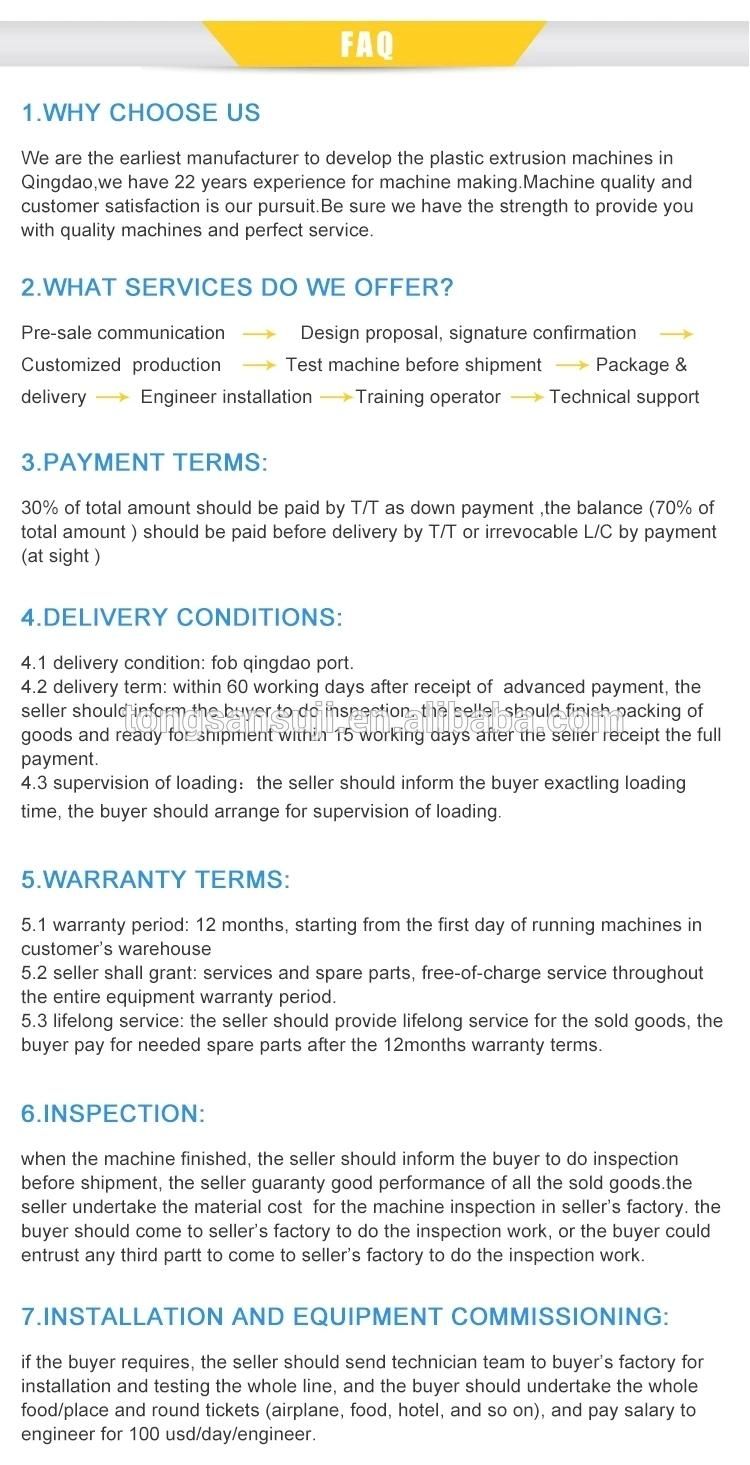

FAQ:
