• Model NO.：EK9-2S4A
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Productivity：1800 Pairs,Day 24hours
• Transport Package：Container
• Specification：ISO, CE
• Trademark：KCLKA
• Origin：Fujian, Jinjiang
• HS Code：84773090
• Production Capacity：25 Sets, Month

Basic Info.

Model NO. EK9-2S4A Computerized Computerized Certification CE, ISO9001:2008 Productivity 1800 Pairs/Day 24hours Transport Package Container Specification ISO, CE Trademark KCLKA Origin Fujian, Jinjiang HS Code 84773090 Production Capacity 25 Sets/ Month

Product Description

Suitable For Molding Material of TR,TPR,TPU,PVC In Multi-color Unit Soles, football/bastketball shoes soles.
Daily Producivity: 1800 pairs/day  24hours


Technical Description


Number of station	station	2
Material		TR/TPR/TPU/PVC
Clamplng force	Tons	100-150
Standard Mould size	Mm	380 * 500
Mould height	Mm	90-200
Mould opening stoke	Mm	350
Injection unit	set	4
Injection Cap (Max)	cc	500*4
Screw diameter	Mm	60
Screw speed	RPM	0-250
Thermal zone of barrel	No	4
Feeding unit heating power	kw	18.4
Motor of hydraulic unit power	kw	11+18.5
Total electric Consumption	kw	73.4
Measurement(L.W.H)	Mm	3000*2126*2330
Weigh	Tons	10

The machine is PLC controlled, driven by Hydraulic Motor, full hydraulic pressure and cycled automatically. The temperature can be controlled automatically by pre-selection. The type of injection material is horizontal. It can process multi material as TR, PVC, TPR, TPU.


Mold carrier unit
lMold thickness automatically compensated hydraulic clamping system.
lThree-position (0o-90o-180o) mold rotating head providing multi-mold production capability for single color and two-color with three-layer unit soles, etc.
lUnique rotating head positioning mechanism, providing precise and fast mold positioning.
lUpper and bottom molds ejector units for easy, fast and distortion free sole removal.
lAutomatic sliding unit for flexible and easy, fast and distortion free sole removal.
lAutomatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
lWith separate cooling systems on three faces rotating head and bottom mole plate, cooling time is shortened and productivity is higher.
lSeparate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue removal.


Feeding unit
lProvide injection or extrusion system available for TR.
lElectric motor driven injection point height adjustment system, suitable for different size of molds.
lAdjustment of injection point with horizontal leveling, no material heap at channel of extruders.
lPrecise barrel temperature control with P.I.D. control system.
lIt is easy and fast for material changing with less waste.


Electric control system
lWith self-diagnosis analysis system, current status of machine operation can be monitored to insure smoothly production.
lProviding with work file records, processing parameters for different molds can be saved with individual files, production is more efficient
lEvery extruder is with independent nozzle, material flow is not interfered, colors are not mingled, outsole colors are clearer.


Common FAQ:
 1.How long have you been doing it?  We started in 2003 and already have 17 years of industry experience.
 2.Are you a trading company or a manufacture?   We are manufacture .

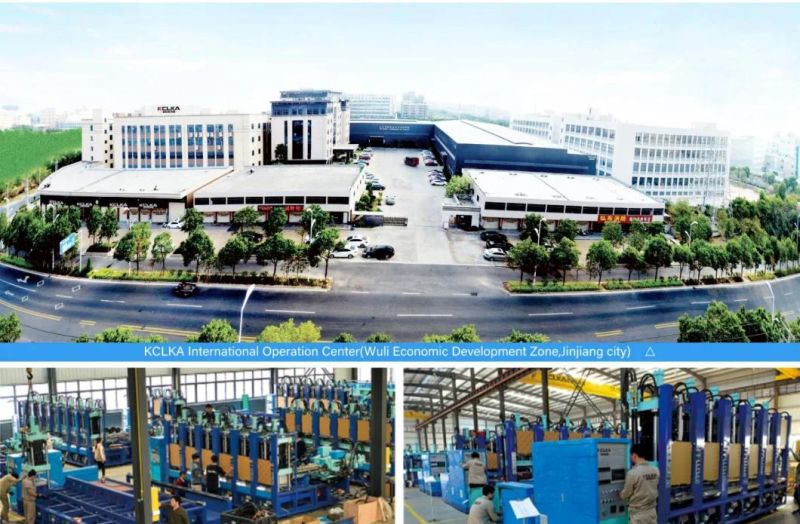

 3.Where is your company?  Our company is located at No.30 Quanyuan Road(Wuli Park), Jinjiang
  Economic Development Zone, Jinjiang City, Fujian province, China(Mainland). The branch is located in Wushan Industrial Zone, Jinjiang City, Fujian Province.
 4.Delivery date:
  Within 20 days After receiving the 30% earnest money
 5.Payment term:
  Advance payment at order 30%, 70% before shipment
 6.What kind of technical support is provided?  Under normal circumstances, if the customer need it, we will send a technician to the factory to help install the machine. Due to the epidemic, technicians cannot go out, we will provide installation videos of related machine.
 7.What are the characteristics of EVA injection molding  machine?  Energy Saving Design: No need water circulation for mould station, using efficient heat insulator material.
