• Model NO.：SJ-65,FM800
• Automation：Automatic
• Computerized：Computerized
• Certification：CE
• Motor：Siemens,China
• Inverter：Delta, Euro
• Switches：Schneider
• Transport Package：in Standard Wooden Case
• Specification：CE
• Trademark：E-light
• Origin：China
• HS Code：84431980
• Production Capacity：50sets,Year

Basic Info.

Model NO. SJ-65/FM800 Automation Automatic Computerized Computerized Certification CE Motor Siemens/China Inverter Delta/ Euro Switches Schneider Transport Package in Standard Wooden Case Specification CE Trademark E-light Origin China HS Code 84431980 Production Capacity 50sets/Year

Product Description

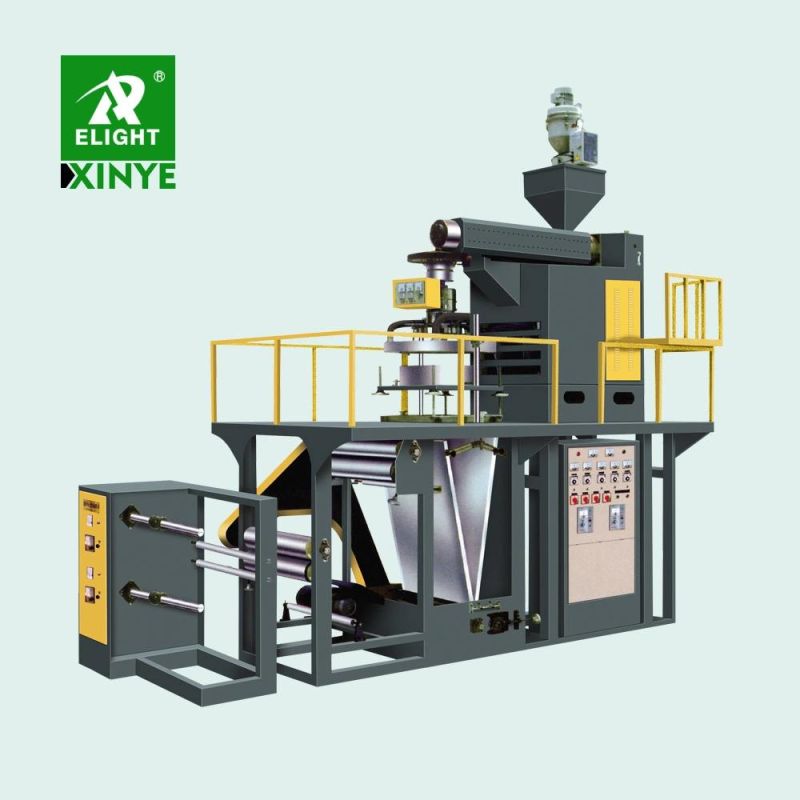

 Rotary Head Polypropylene Film Blowing Machine Set

    It is used for blowing polyethylene (PP) and also for blowing high and low density polyethylene (HDPE, LDPE) which are widely used for packing food, garments, textile, daily necessities and industrial products etc.
  OPTIONAL EQUIPMENT:
   1. AUTO LOADER
   2. CORONA
   3. DIE ROTARY DEVICE
   4. GRAVITY METRIC DEVICE

Model	SJ-55/FM600	SJ-65/FM800
Screw Diameter	55mm	65mm
Screw L/D  Ratio	L/D28:1	L/D28:1
Screw Rotary Speed	10-100r/min	10-100r/min
Master Power	15Kw	18.5Kw
Rotational Mode of Machine Head	Continuous Rotate	Continuous Rotate
Main Output	38kg/h	46kg/h
Max.Folding Width of Film	600mm	800mm
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm
Total Power	28KW	36KW
Weight of Machine	2900kg	3500kg
Overall Dimension(L×W×H)	4200×2500×4000mm	4500×2800×4500mm

    The cylinder and the screw stems of extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment...
    The extruder can be lift up to 3meters according to the technological requirements. Mode of film blowing: Bottom blowing. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
  1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft  handle  bag-making  Machine ; high  speed  heat  sealing  and  slitting  bag-making  Machine;Microcomputer control bag-making Machine;Computerized vest bag-making  Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
  2) Printing Machine: Flexography Press; Rotogravure Printing Press;
  3) Film Blowing Machine: HDPE-LDPE  Dual-purpose  Film Blowing  Machine,High  Speed  Film Blowing Machine Unit;
  4) Others:Auto Slitting and Rewinding Machine, Hem Folding  Machine, Material Cutting  and Punch Machine.Since its  establishment,  with the purpose of " Gain the customer's confidence  base on good quality."and "Improve continuously,  meet customer's needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
Our Services:
Installation services:
    Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After sales services:
   We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
