Plastic Machinery

Waste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher ...

Zhangjiagang City Xinrong Machinery Co., Ltd.
  • After-sales Service:Online Guidance for Installation and Commissioning
  • Warranty:12months
  • Type:Hard Plastic Crusher
  • Raw Material:PP, PE, Pet, PVC, Wood, Mixing
  • Structure:Top Feed
  • Knife Classification:Flat Knife Crusher

Base Info

  • Model NO.:XRC600
  • Knife Roll:Solid Knife Roller
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, UL, SGS
  • Crushing Room:600*320mm
  • Crusher Rotor Diameter:320mm
  • Blade Materials:SKD11,D2,DC53
  • Gear Box:Guomao or Boneng
  • Bearing:Heavy Duty Bearing
  • Motor Brand:Simo,Wannan,Siemens,Weg
  • Voltage:According to Customers
  • Feeding Size:600*350mm
  • Crusher Rotary Speed:600rpm
  • Screen Size:6-30 mm
  • Main Electric Element:Schneiders, Siemens
  • Capacity:200-300 Kg,Hr
  • Weight:1100 Kg
  • Transport Package:Wooden Case
  • Specification:XRC600
  • Trademark:FAMOUS
  • Origin:China
  • HS Code:84778000
  • Production Capacity:40sets,Year

Description

Basic Info.

Model NO. XRC600 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, UL, SGS Crushing Room 600*320mm Crusher Rotor Diameter 320mm Blade Materials SKD11/D2/DC53 Gear Box Guomao or Boneng Bearing Heavy Duty Bearing Motor Brand Simo/Wannan/Siemens/Weg Voltage According to Customers Feeding Size 600*350mm Crusher Rotary Speed 600rpm Screen Size 6-30 mm Main Electric Element Schneiders/ Siemens Capacity 200-300 Kg/Hr Weight 1100 Kg Transport Package Wooden Case Specification XRC600 Trademark FAMOUS Origin China HS Code 84778000 Production Capacity 40sets/Year

Product Description

PET/PP/PE Bottles/Containers/Drums/Barrels, ABS/PS/PC Plastic Crusher
Product Description:
According to requirement of recycling production, our company developed PC series waste plastic crusher it is widely used in Polystyrene, Polypropylene, Nylon, Engineering plastics and waste Polyvinyl Chloride foamed material or injection lump crushing If replace the screen sieve, and adjust the blade clearance, it can also crush all kinds of blown film, rolling film, sheet, plate and other plastic waste.
Performance and structure:

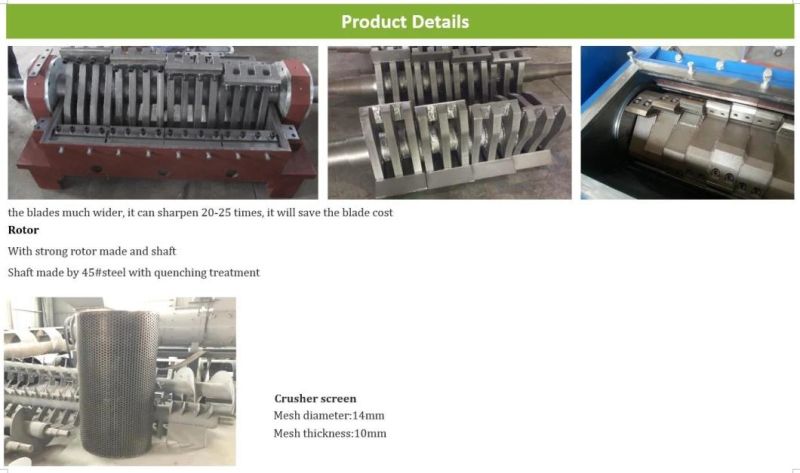

1. Adopt imported high quality tool steel for specially blades. Extremely wear-resisting, blades can be elastically fixed, repeatedly sharpened when blunt and achieve using life.

2. The Base of Rotary blade designs as step and scissors, so that the cutting force can be decomposed and caused double increase
3. Material of rotary blade base is T7A high-quality tool steel, rigid and flexible, which has stronger and long life. It adopts high intension bolts (12.9 level) to fix, the structure is solid and durable.
4. Machine body is made by advanced Q235A steel, which can avoid influence to mechanical properties after long time running.
5. Main Axis Core and both end face is finished by the high precision coordinate boring in one time, ensures concentricity and perpendicularity errors less than 0.05mm. Each of the components sets basic hole and surface with both coarse and fine processing. Parts are interchangeable and with high precision
Suitable Products:
Waste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher Grinder
Product Parameters:
Model XRC400XRC500XRC600XRC800XRC1000XRC1200
Rotating diameter(mm)220280320450450580
Speed(rpm)550550600600600600
Rotating knives(pcs)121518243060
Fixed knives(pcs)224444
Motor(kw)7.51518.5-2237-4545-7575-90
Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different
based on crushing different material requirements, please call us for more information before purchasing.

Waste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher GrinderWaste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher Grinder
Waste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher GrinderWaste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher GrinderWaste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher Grinder
Waste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher GrinderWaste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher GrinderOur Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine

Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.

Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Waste PVC/PP/PE/Pet Film Bag/Sheet/Can/Bottle Industrial Small/Mini Plastic Crusher Grinder

Q: Are you a factory or a  trading company?

A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 30 years, our factory is in Zhangjiagang city which is near shanghai and wuxi.

Q: Do you have any certifications?

A: Yes, we have ISO, CE, SGS.

Q: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: When can I get my machine after I paid?

A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: How to install my machines when it arrives? how much the cost?

A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have
problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory.

Customer pay for visa, round air tickets, accommodation and USD100/day/person.

Q:How long time for installation?

A:According your machines order, we will send one or two engineers to your plant, it will take about 5 days to 10 days.

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price.


IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT WITH US.
