• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Color：One Color
• Folding Width of Products：500mm,1000mm
• Thickness：0.015-0.05mm
• Transport Package：Wooden Case,Wooden Block,in Nude
• Specification：FT-500,600
• Trademark：Fangtai
• Origin：Ruian China
• HS Code：8477800000
• Production Capacity：20set,Month

Basic Info.

Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Color One Color Folding Width of Products 500mm/1000mm Thickness 0.015-0.05mm Transport Package Wooden Case/Wooden Block/in Nude Specification FT-500/600 Trademark Fangtai Origin Ruian China HS Code 8477800000 Production Capacity 20set/Month

Product Description

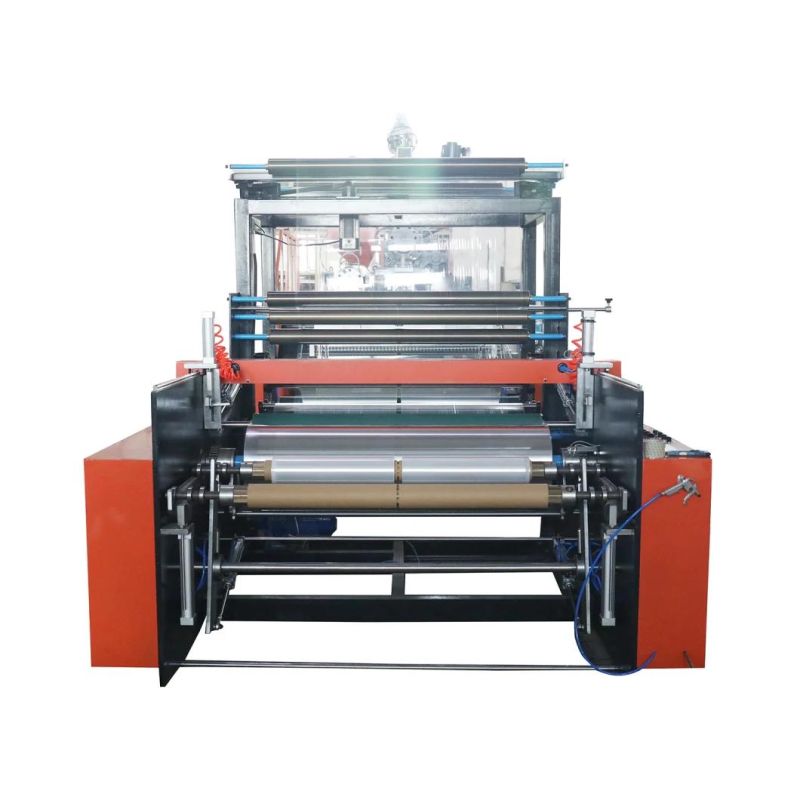

Fangtai Double-Layer Co-Extrusion Stretch Film Making Machine
Use
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film.The film has good tensile strength,anti-pricking ability and impact strength.Its good shriking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.The transparency and tensile strength of this product can make the packaging beautiful,economical and practical.The film can be widely used in wrapping or palletized goods.It is a good substitute for hot shrinking packaging film during transportation.
This machine can be equipped with gravure printing machine, one color printing.

OPTIONAL EQUIPMENT
1)auto loader
2)air shaft
3)auto dry hopper
4)electric changer
5)hydraulic net changer
6)glue pump

Main Technical Variables

Model	FT-500(Double)	FT-600(Double)
Diameter of Screw Stem	φ55mm*2	φ55mm*2
Major Diameter Ratio of Screw Stem(L/D)	28:1	28:1
Rational Speed of Screw Stem	10-120rpm	10-120rpm
Folding Width of Products	200-500mm	200-600mm
Thickness	0.015-0.05mm	0.015-0.05mm
Main Motor Power	15kw*2	15kw*2
Heating Power	30kw	72kw
Max.Output(kg/h)	40	120
Machine Weight	3T	3.5T
Overall Dimensions (L*W*H)(mm)	4500*2600*2550	5000*2800*2600
