• Model NO.：SKY-8Y
• Control：PLC
• Capacity：2000PCS,Hr
• Bottle Size：50~2000ml
• Power：18kw
• Transport Package：Wood Packing
• Trademark：SKYM
• Origin：Jiangsu
• HS Code：84773090
• Production Capacity：300sets,Year

Basic Info.

Model NO. SKY-8Y Control PLC Capacity 2000PCS/Hr Bottle Size 50~2000ml Power 18kw Transport Package Wood Packing Trademark SKYM Origin Jiangsu HS Code 84773090 Production Capacity 300sets/Year

Product Description

Product Description

Semi automatic PET stretch blowing machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle, mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.



Main Technical Data

Model	SKY-8Y
Bottle volume range	0.05~2 Liter
Production Speed	1200~1600 bottles per hour(500ml)
Bottle diameter	20mm-100mm
Cavity	2cavity
Dimension	1870*630*1450mm(L*W*H)
Weight	250kg

Auxiliary Equipment

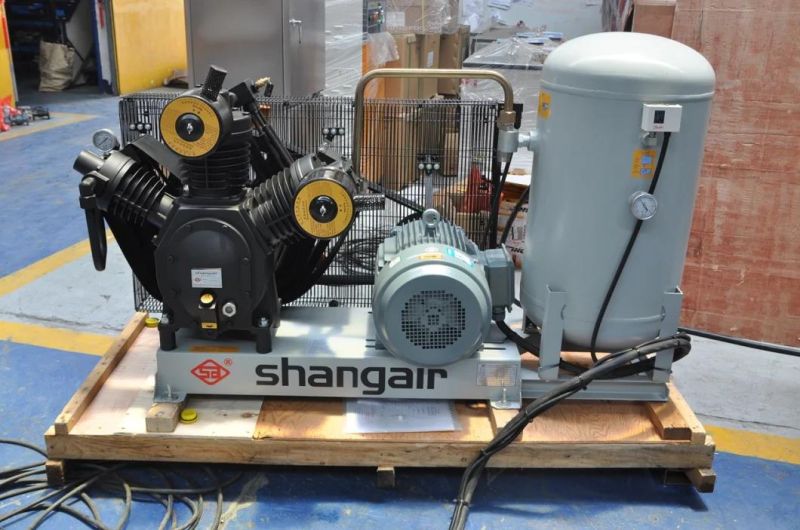

High pressure air compressor
Air compressor system, tie-in use combination series high pressure gas system. Convenient maintenance, easy inspection and troubleshooting.

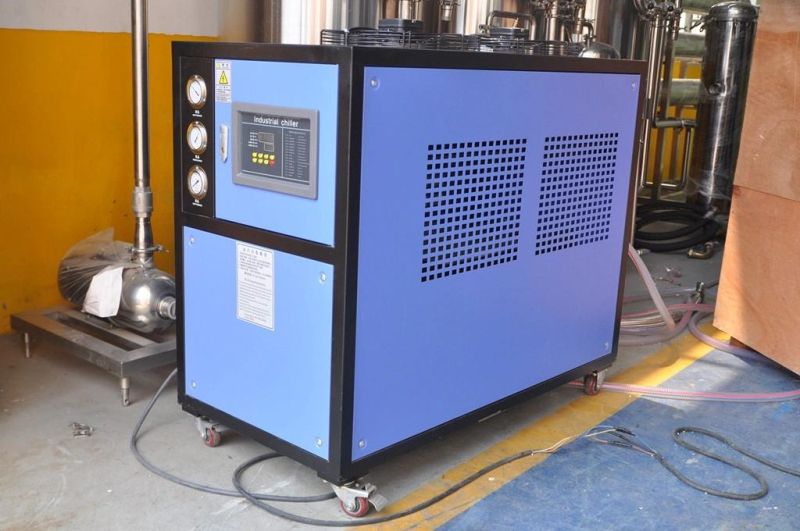

Air Type Water Chiller
Mainly used for cooling the mould and guarantee the bottle part not damaged in the heating process, to improve the quality of finished products and production efficiency.


Bottle Mold
Can customize bottles of different sizes and different shapes.

Certification

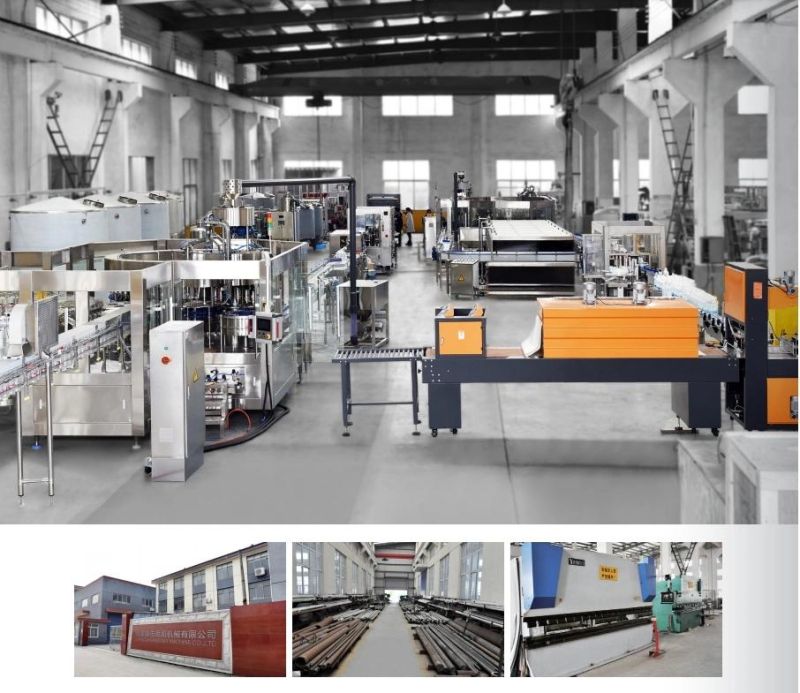

Company Information




FAQ
1. A: Are you factory?How many workers do you have?
    B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

2. A: What about after sale service?
    B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

3. A: What about installation?
    B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

4. A: What do we do if we encounter problem about the machine ?
    B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

5. A: How can you control the quality and delivery?
    B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
