• Model NO.：SJ-120
• Condition：New
• Inverter：ABB
• Warranty：1 Year
• Installation：Engineer Available
• Transport Package：PE Film or Wood Box for Sea Transport
• Specification：SJ-90 extruder
• Trademark：TONGSAN
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：100sets Per Year

Basic Info.

Model NO. SJ-120 Condition New Inverter ABB Warranty 1 Year Installation Engineer Available Transport Package PE Film or Wood Box for Sea Transport Specification SJ-90 extruder Trademark TONGSAN Origin Qingdao, China HS Code 84772090 Production Capacity 100sets Per Year

Product Description

HDPE PE LDPE  Pipe Extrusion Line can produce 20-630mm HDPE LDPE pipe hose for gas and water supply. electric conduit etc .


HDPE pipe Machine Model

Model	Screw Diameter	L/D	Pipe Range (mm)	Motor Power (kw)	Total Power (kw)	Line Length (M)
PE-63	65mm	33:1	16-63	37	80	24
PE-110	65mm	33:1	75-110	55	110	30
PE-160	75mm	33:1	90-160	90	150	32
PE-250	75mm	33:1	110-250	110	200	42
PE-315	90mm	33:1	160-315	160	240	44
PE-400	90mm	33:1	200-400	185	300	50
PE-500	120mm	33:1	250-500	280	350	56
PE-630	120mm	33:1	315-630	280	480	56
PE-800	150mm	33:1	400-800	315	550	72



Feature:

   1,The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

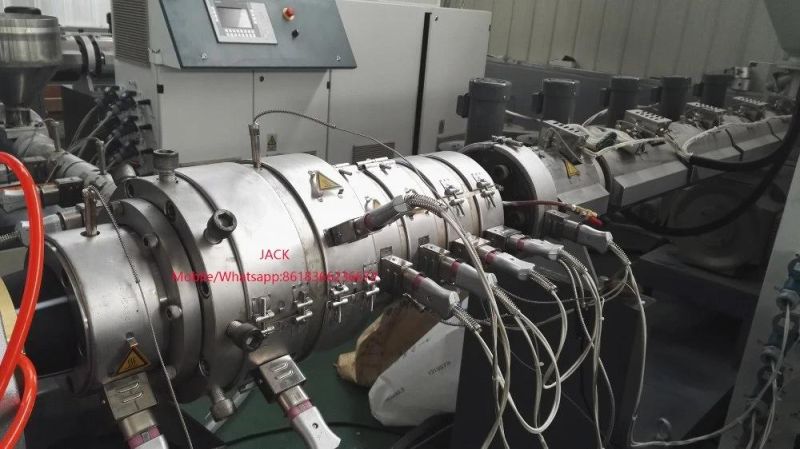

   2,Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

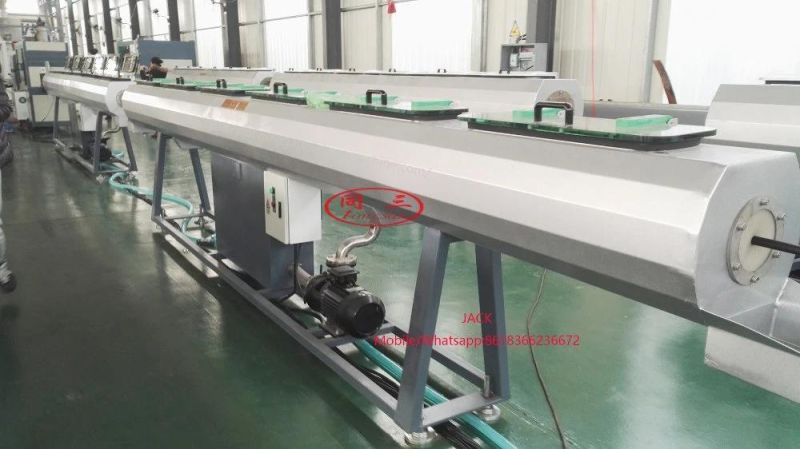

   3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.



   4,Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

TONGSAN has 23 years experience in manufacturing plastic pipe machinery.

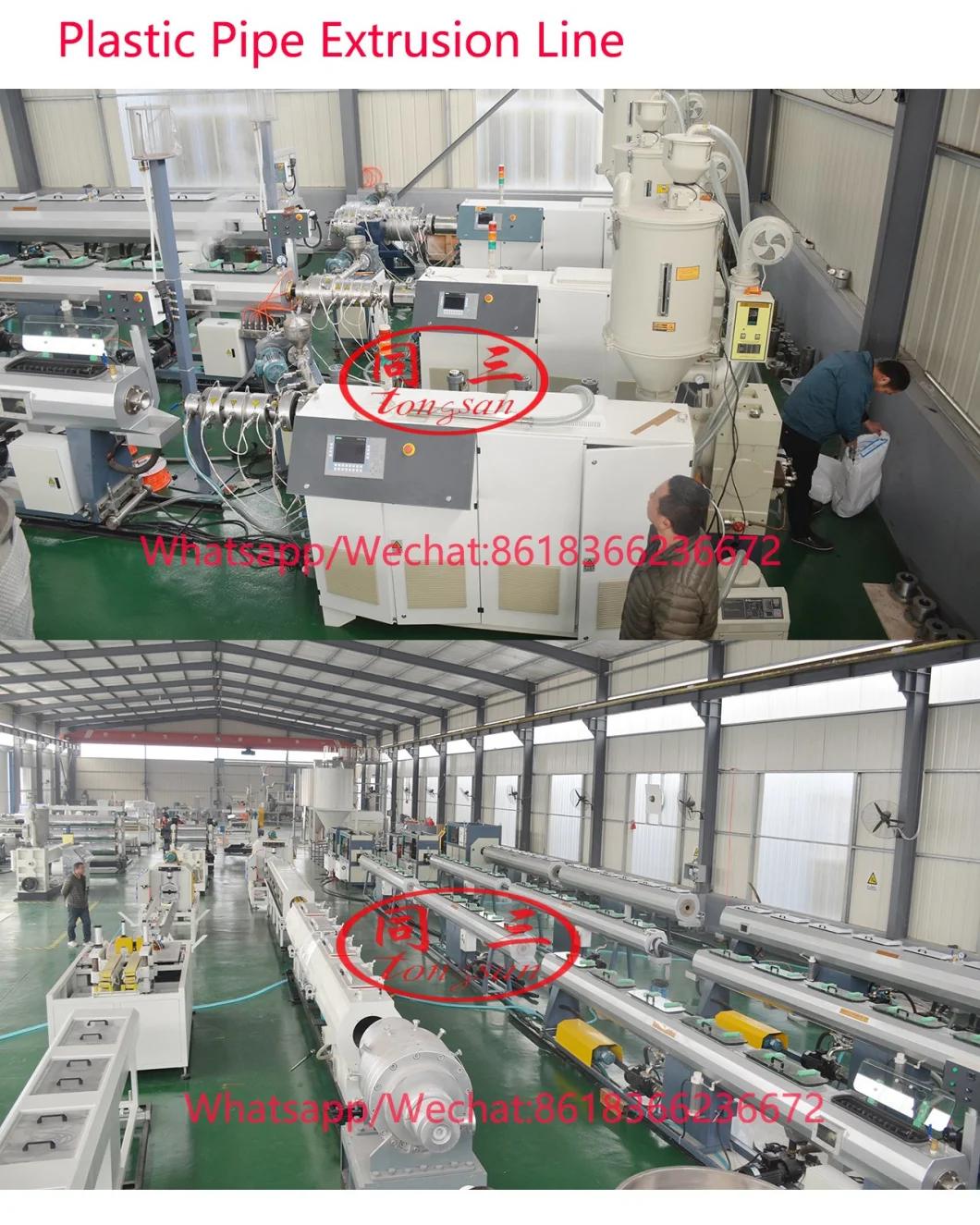

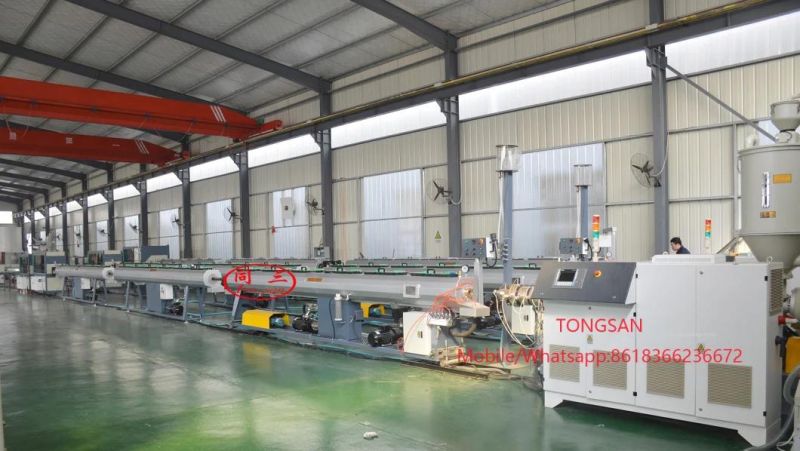

Plastic  Pipe Extrusion Line Workshop:


Company Introduction:
Qingdao Tongsan Plastic Machinery Co.,Ltd is one experienced plastic machinery manufacutrer since 1997.
Qingdao Hegu Wood Plastic Machinery is sister company of TONGSAN, which is focused on Wood Plastic Composite Extrusion Line!

Our Motto
Quality is the style of TONGSAN.

Credibility is the personality of TONGSAN.

Innovation is the pursit of TONGSAN.


Exhibition


To realize more about HDPE PE LDPE Pipe Extrusion Line  and our company, welcome contact us freely. We will provide best solution according to your requirement.

Let us build a Win-Win Cooperation!
